Power Seat Switch: Inspection

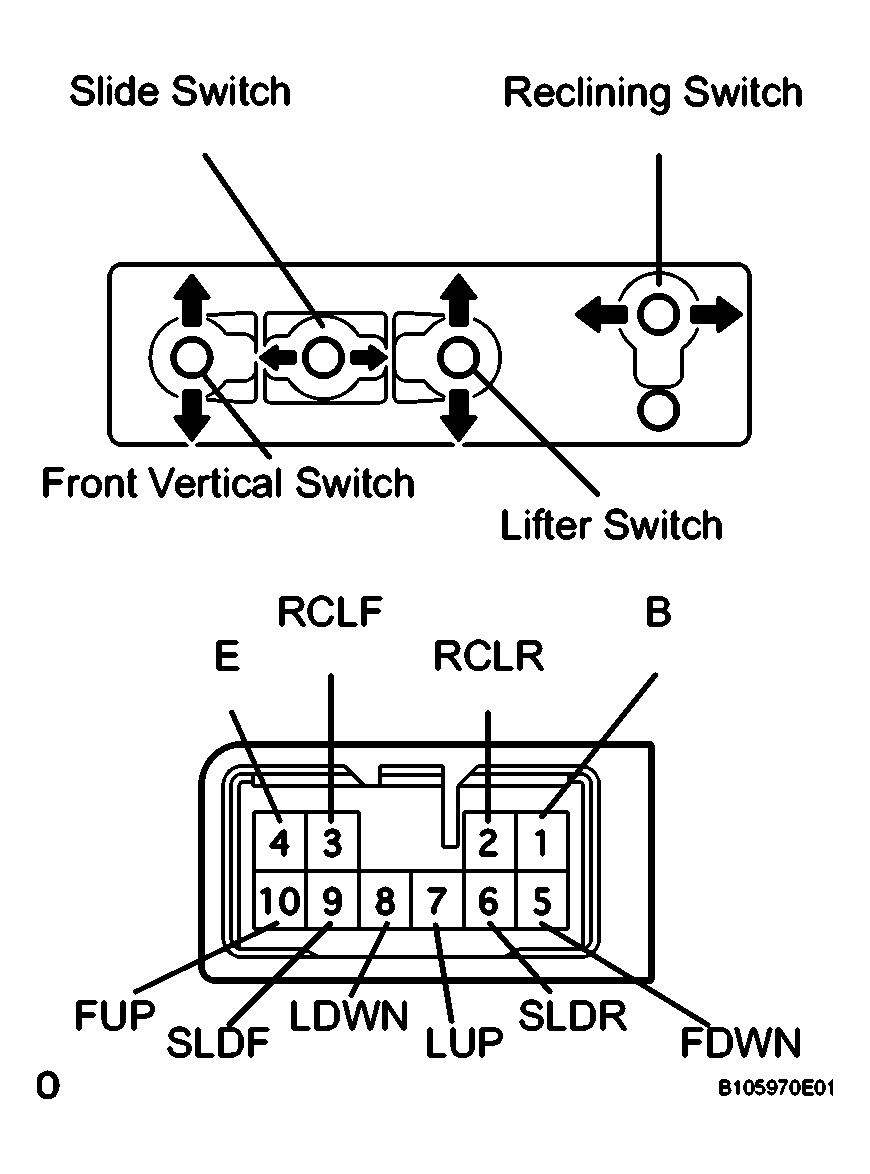

- INSPECT FRONT POWER SEAT SWITCH RH
- Measure the resistance between the terminals when each switch is operated.
Standard resistance (Slide switch)
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 (B) - 9 (SLDF) FRONT Below 1 Ω 4 (E) - 6 (SLDR) FRONT Below 1 Ω 4 (E) - 6 (SLDR) OFF Below 1 Ω 4 (E) - 9 (SLDF) OFF Below 1 Ω 1 (B) - 6 (SLDR) REAR Below 1 Ω 4 (E) - 9 (SLDF) REAR Below 1 Ω Standard resistance (Front vertical switch)
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 (B) - 5 (FUP) UP Below 1 Ω 4 (E) - 10 (FDWN) UP Below 1 Ω 4 (E) - 5 (FUP) OFF Below 1 Ω 4 (E) - 10 (FDWN) OFF Below 1 Ω 1 (B) - 5 (FUP) DOWN Below 1 Ω 1 (B) - 10 (FDWN) DOWN Below 1 Ω Standard resistance (Lifter switch)
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 (B) - 8 (LUP) UP Below 1 Ω 4 (E) - 7 (LDWN) UP Below 1 Ω 4 (E) - 7 (LDWN) OFF Below 1 Ω 4 (E) - 8 (LUP) OFF Below 1 Ω 1 (B) - 7 (LDWN) DOWN Below 1 Ω 4 (E) - 8 (LUP) DOWN Below 1 Ω Standard resistance (Reclining switch)
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 (B) - 3 (RCLF) FRONT Below 1 Ω 2 (RCLR) - 4 (E) FRONT Below 1 Ω 2 (RCLR) - 4 (E) OFF Below 1 Ω 3 (RCLF) - 4 (E) OFF Below 1 Ω 1 (B) - 2 (RCLR) REAR Below 1 Ω 3 (RCLF) - 4 (E) REAR Below 1 Ω If the result is not as specified, replace the switch.
- Measure the resistance between the terminals when each switch is operated.

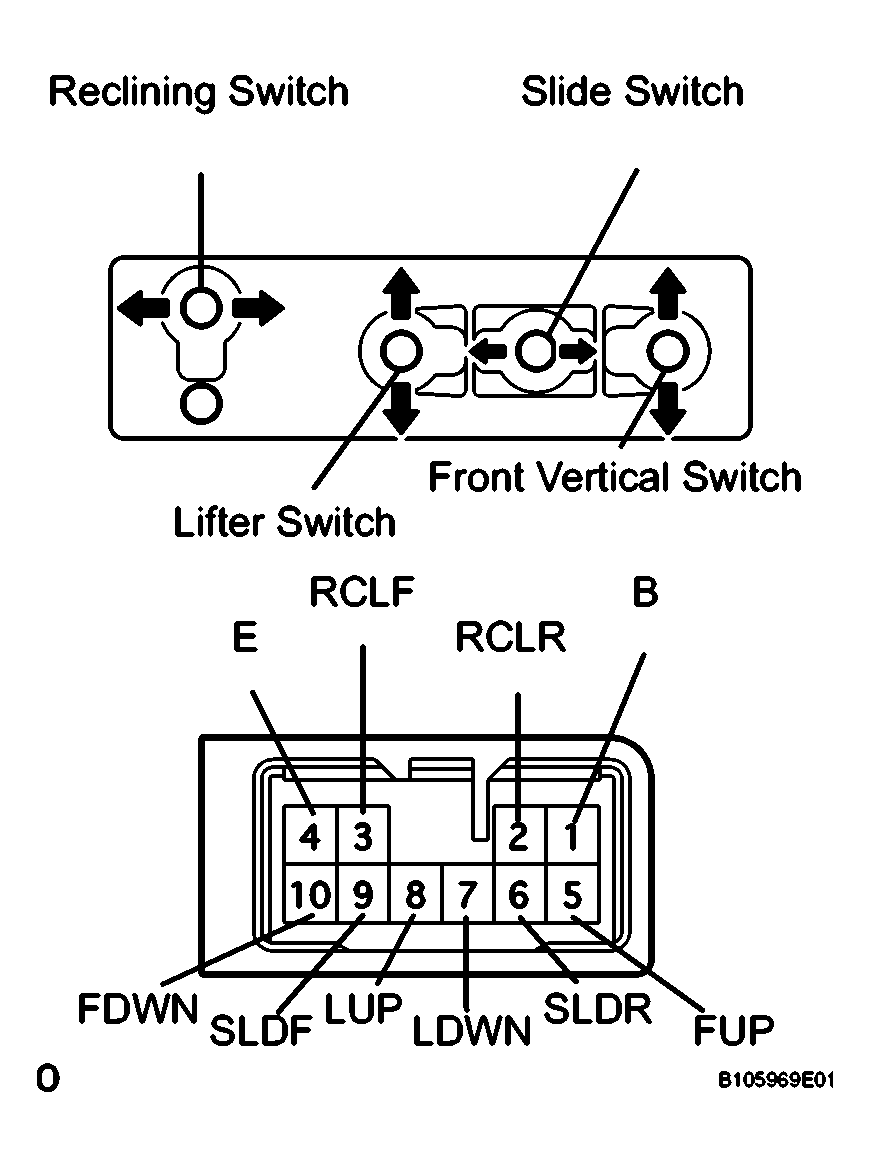

- INSPECT FRONT POWER SEAT SWITCH LH
- Measure the resistance between the terminals when each switch is operated.
Standard resistance (Slide switch)
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 (B) - 9 (SLDF) FRONT Below 1 Ω 4 (E) - 6 (SLDR) FRONT Below 1 Ω 4 (E) - 6 (SLDR) OFF Below 1 Ω 4 (E) - 9 (SLDF) OFF Below 1 Ω 1 (B) - 6 (SLDR) REAR Below 1 Ω 4 (E) - 9 (SLDF) REAR Below 1 Ω Standard resistance (Front vertical switch)
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 (B) - 10 (FUP) UP Below 1 Ω 4 (E) - 5 (FDWN) UP Below 1 Ω 4 (E) - 10 (FUP) OFF Below 1 Ω 4 (E) - 5 (FDWN) OFF Below 1 Ω 1 (B) - 10 (FUP) DOWN Below 1 Ω 1 (B) - 5 (FDWN) DOWN Below 1 Ω Standard resistance (Lifter switch)
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 (B) - 7 (LUP) UP Below 1 Ω 4 (E) - 8 (LDWN) UP Below 1 Ω 4 (E) - 7 (LDWN) OFF Below 1 Ω 4 (E) - 7 (LUP) OFF Below 1 Ω 1 (B) - 8 (LDWN) DOWN Below 1 Ω 4 (E) - 7 (LUP) DOWN Below 1 Ω Standard resistance (Reclining switch)
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 (B) - 3 (RCLF) FRONT Below 1 Ω 2 (RCLR) - 4 (E) FRONT Below 1 Ω 2 (RCLR) - 4 (E) OFF Below 1 Ω 3 (RCLF) - 4 (E) OFF Below 1 Ω 1 (B) - 2 (RCLR) REAR Below 1 Ω 3 (RCLF) - 4 (E) REAR Below 1 Ω If the result is not as specified, replace the switch.
- Measure the resistance between the terminals when each switch is operated.
