Power Seat Switch: Components

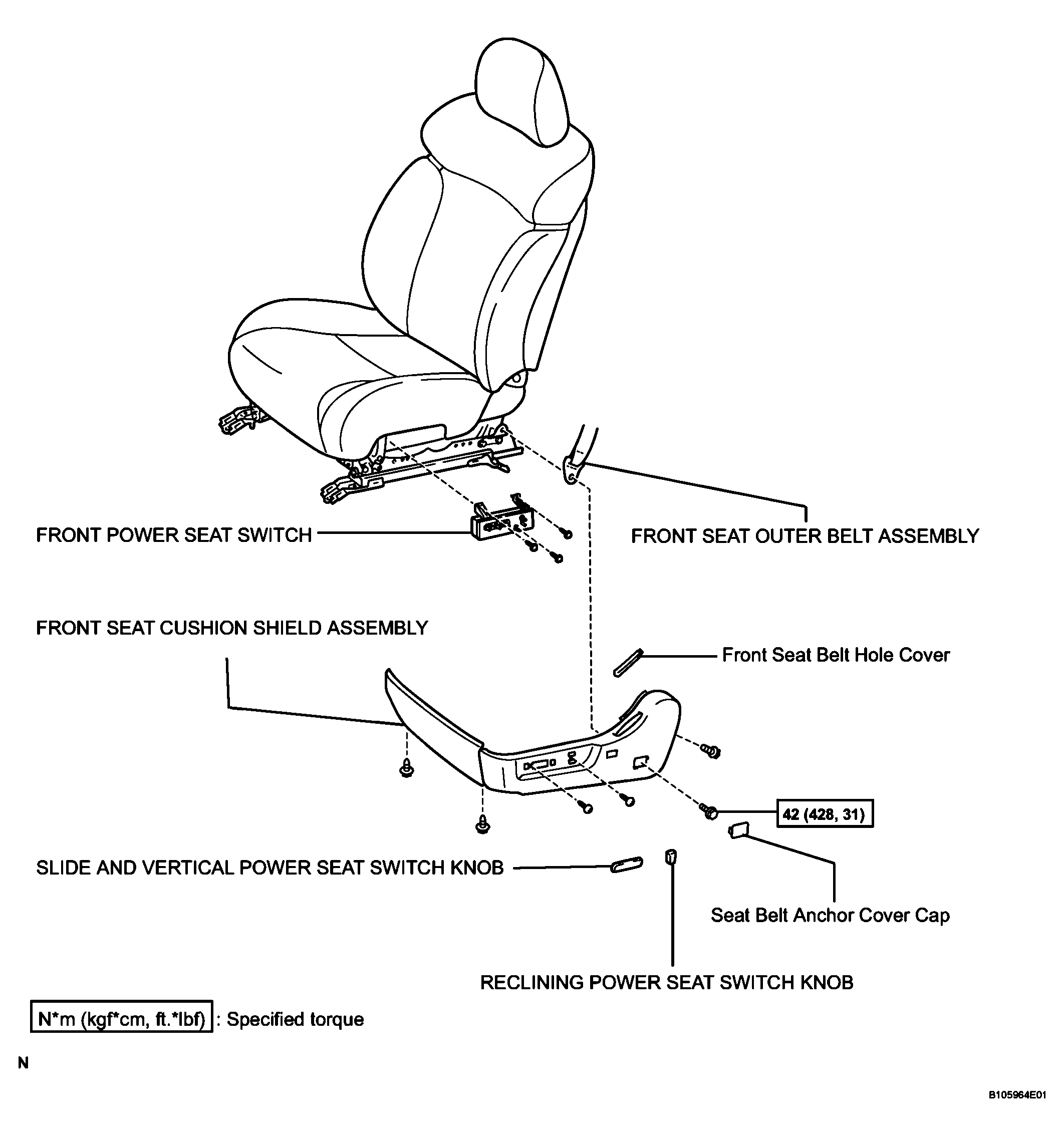

Fig 1: Power Seat Switch Replacement Components With Torque Specifications

G04023436

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
