Lumbar Support Adjuster Assembly: Components

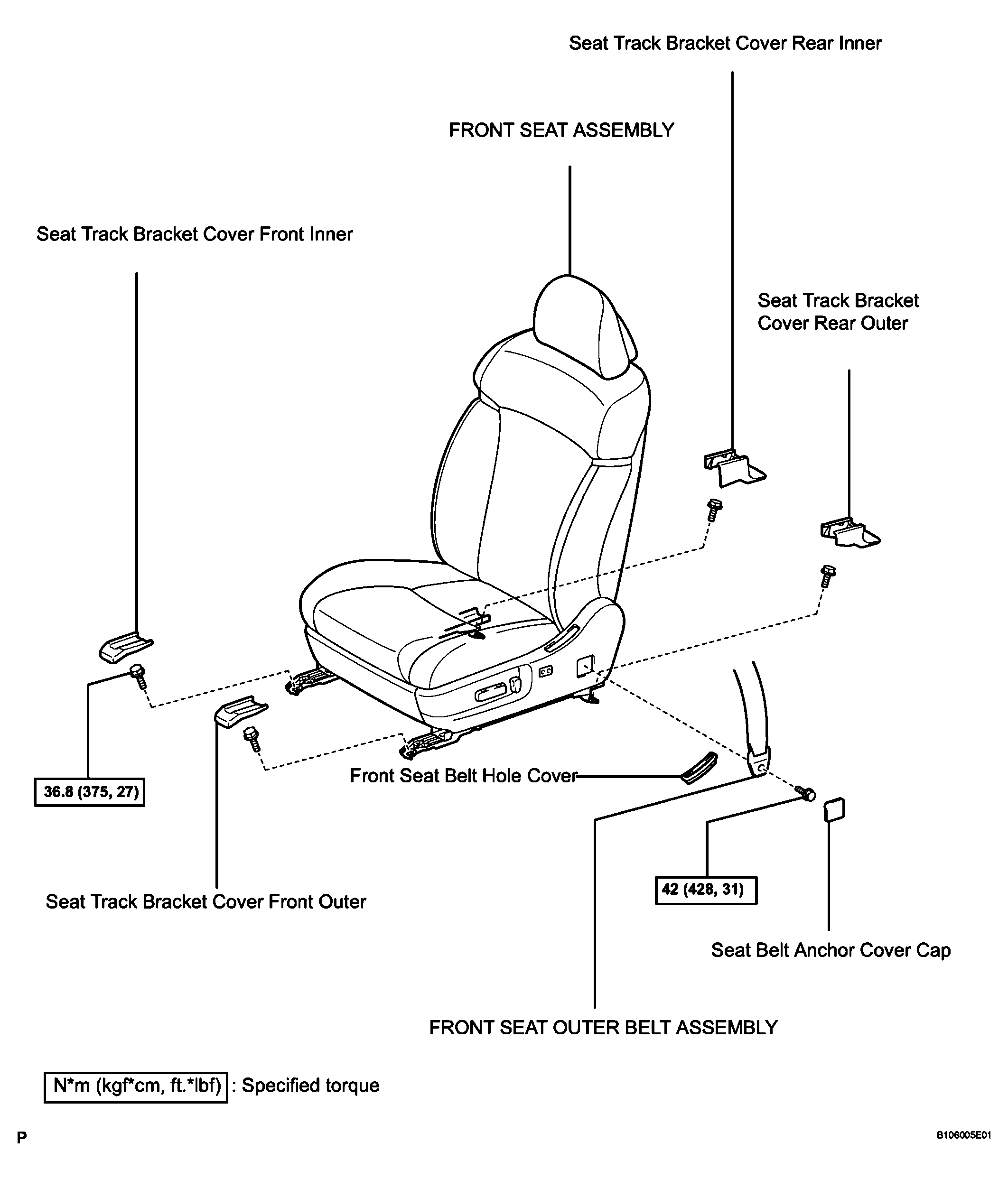

Fig 1: Lumbar Support Adjuster Assembly Replacement Components With Torque Specifications (1 Of 2)
G04023467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

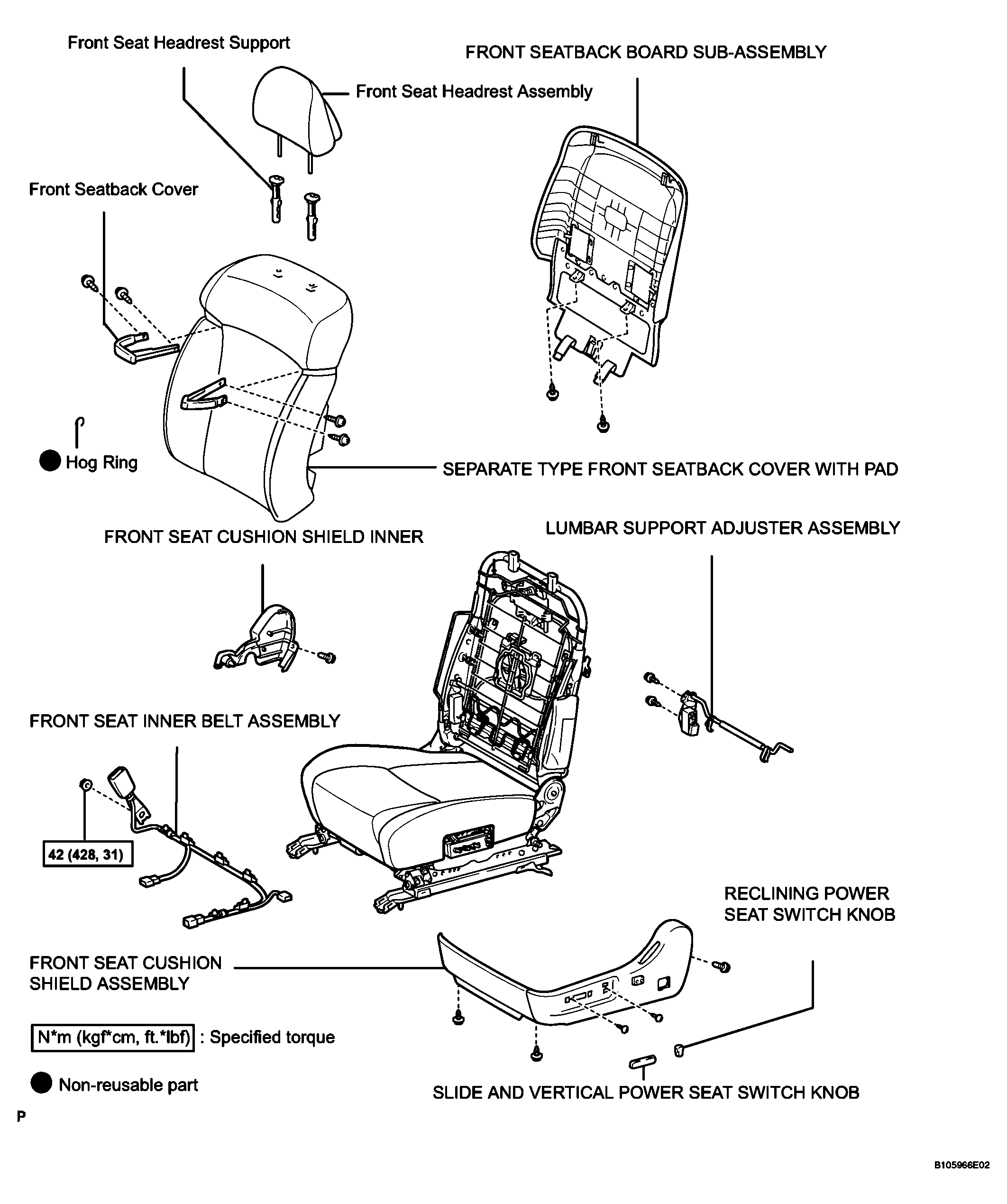

Fig 2: Lumbar Support Adjuster Assembly Replacement Components With Torque Specifications (2 Of 2)
G04023468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
