Front Seat Assembly: Components

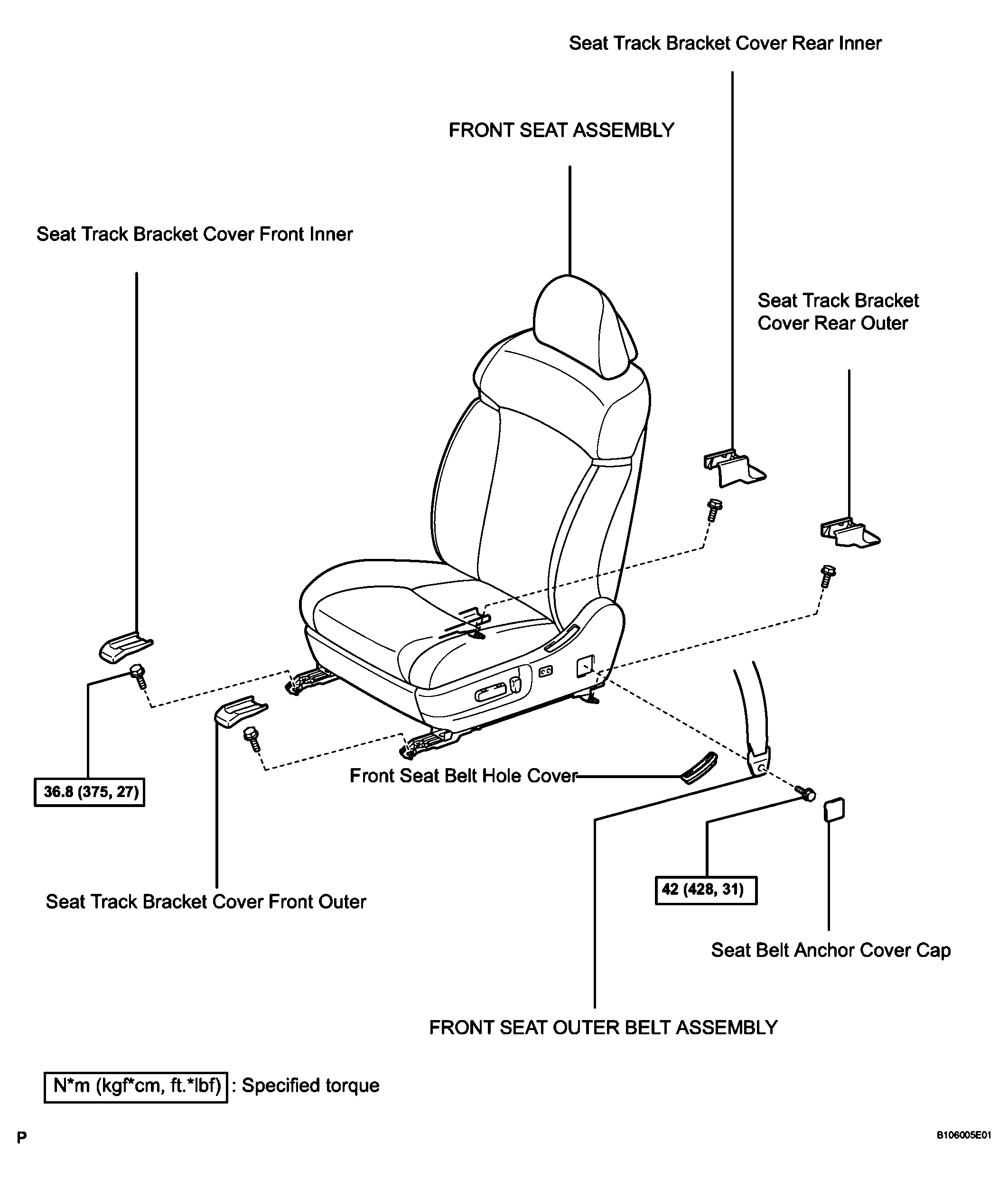

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (1 Of 4)
G04023341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

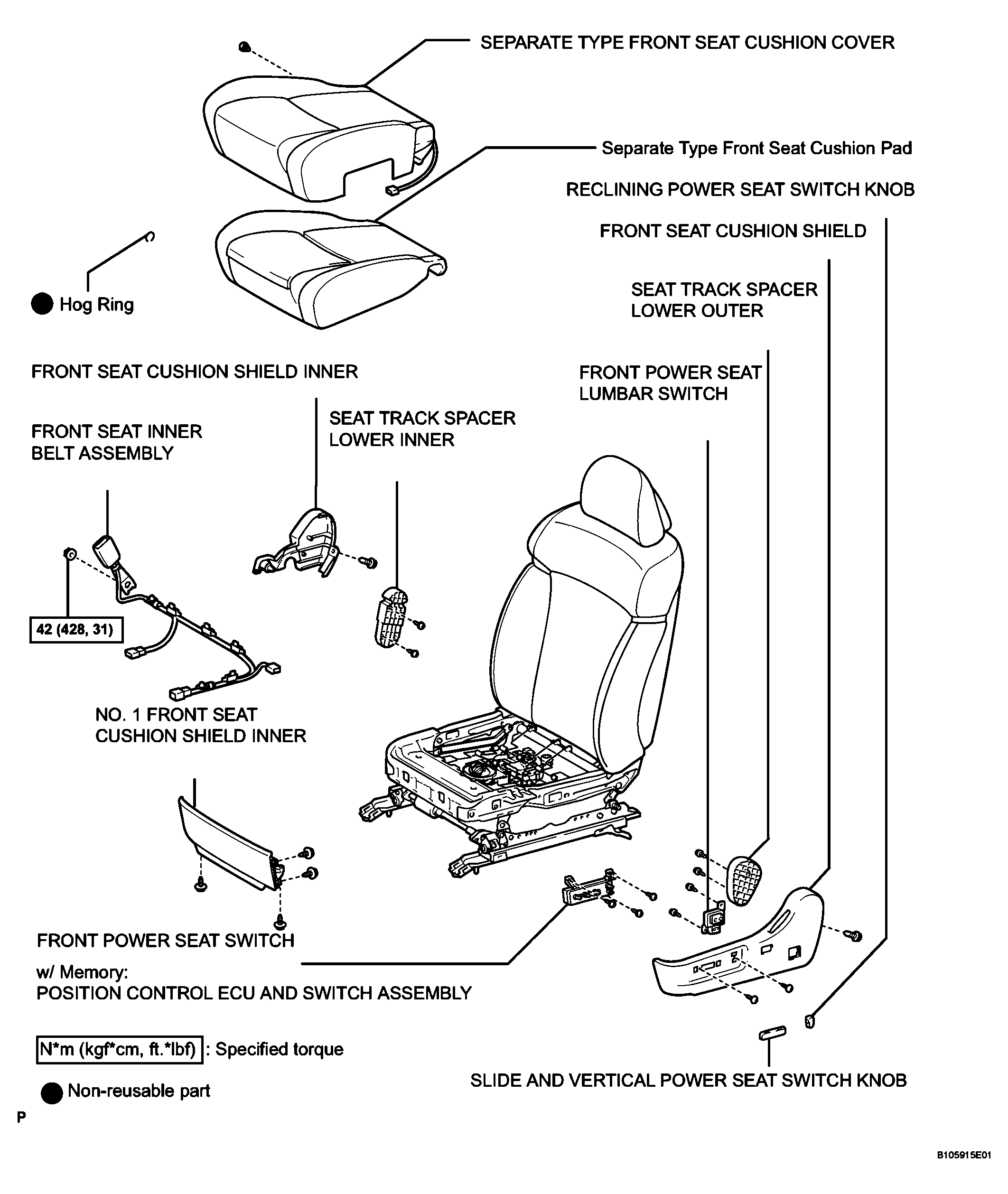

Fig 2: Front Seat Assembly Replacement Components With Torque Specifications (2 Of 4)
G04023342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

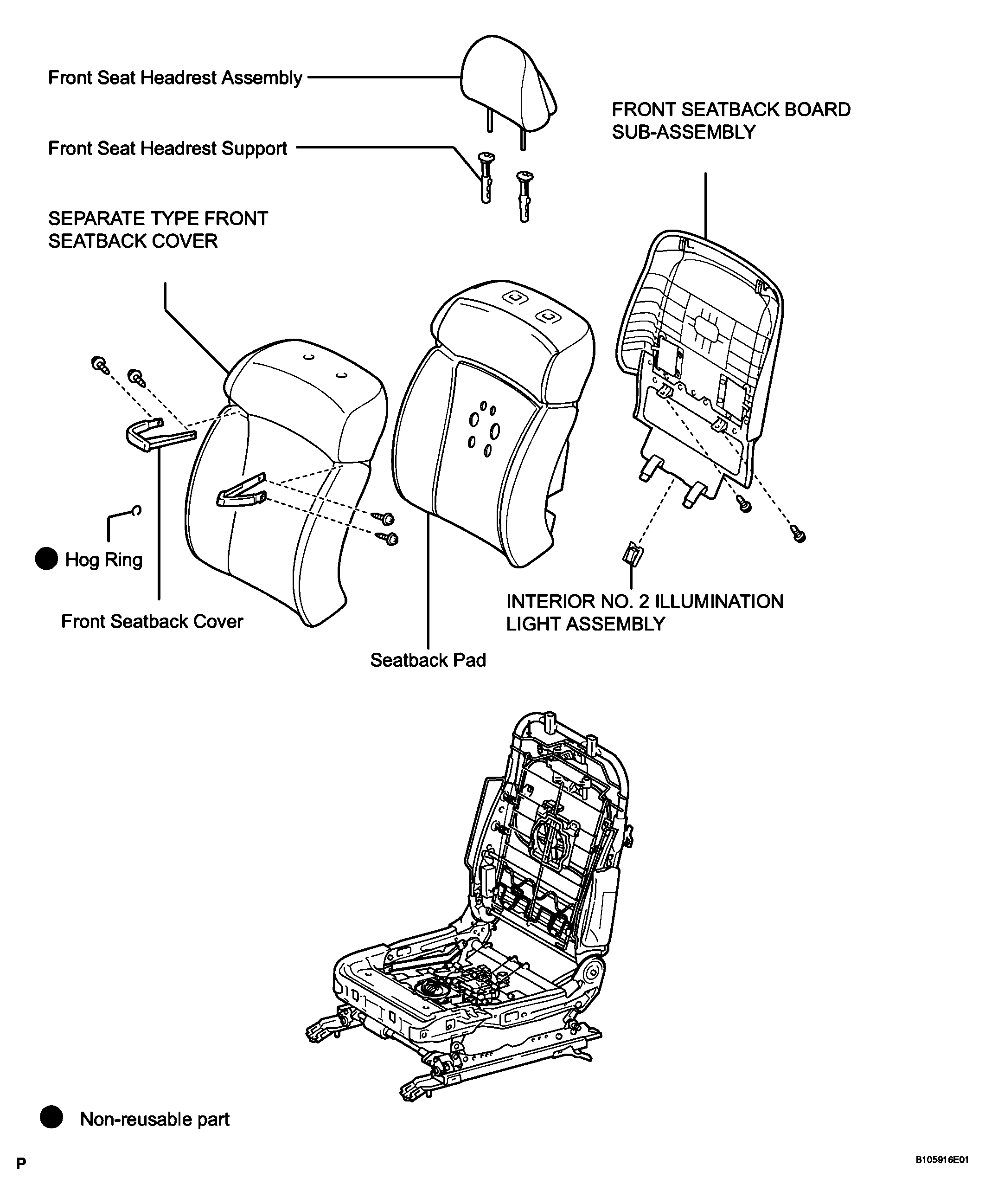

Fig 3: Identifying Front Seat Assembly Components (3 Of 4)
G04023343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

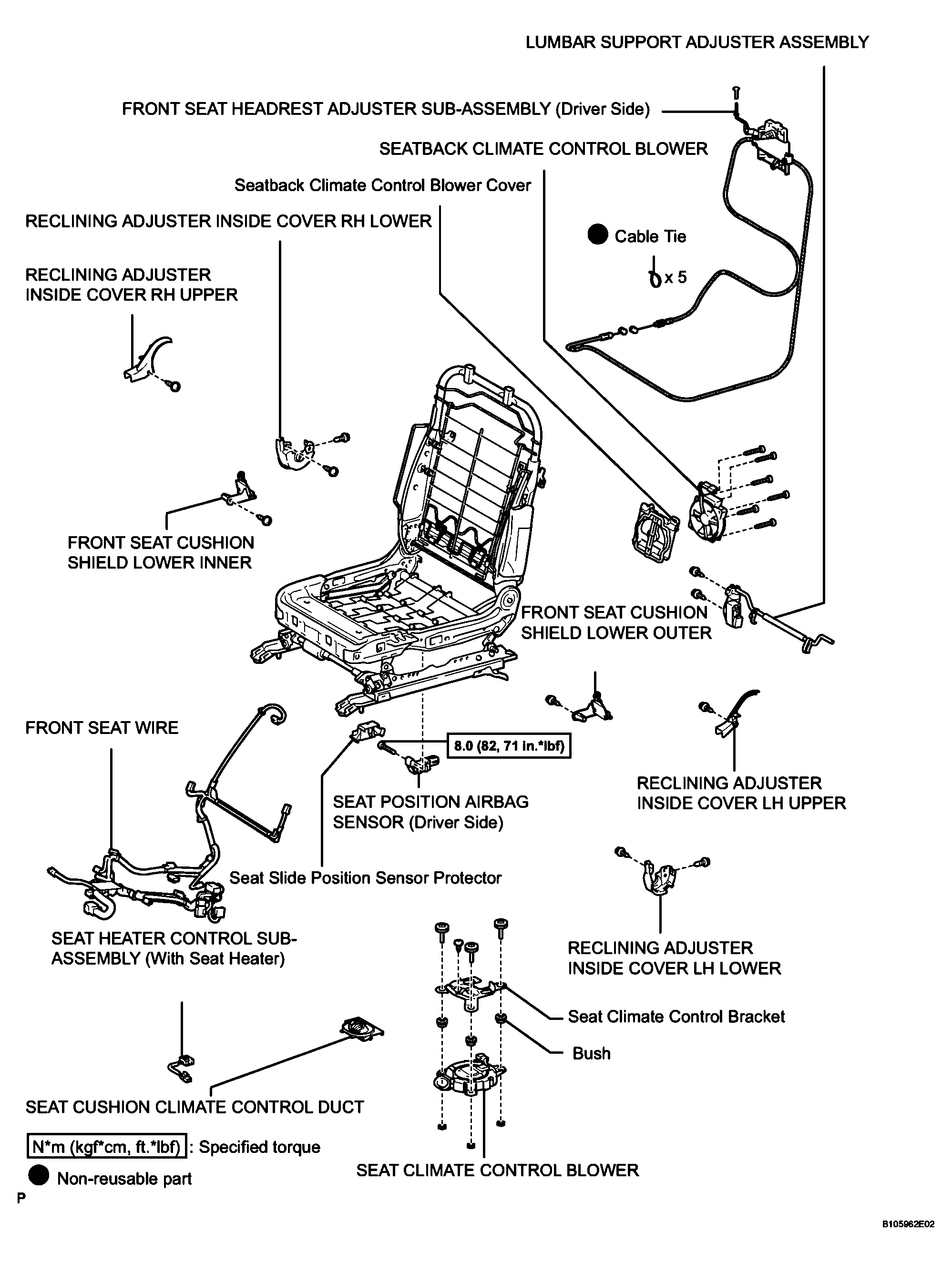

Fig 4: Front Seat Assembly Replacement Components With Torque Specifications (4 Of 4)
G04023344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
