Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Seat
>>
Front Power Seat Control System
>>
System Diagram
System Diagram

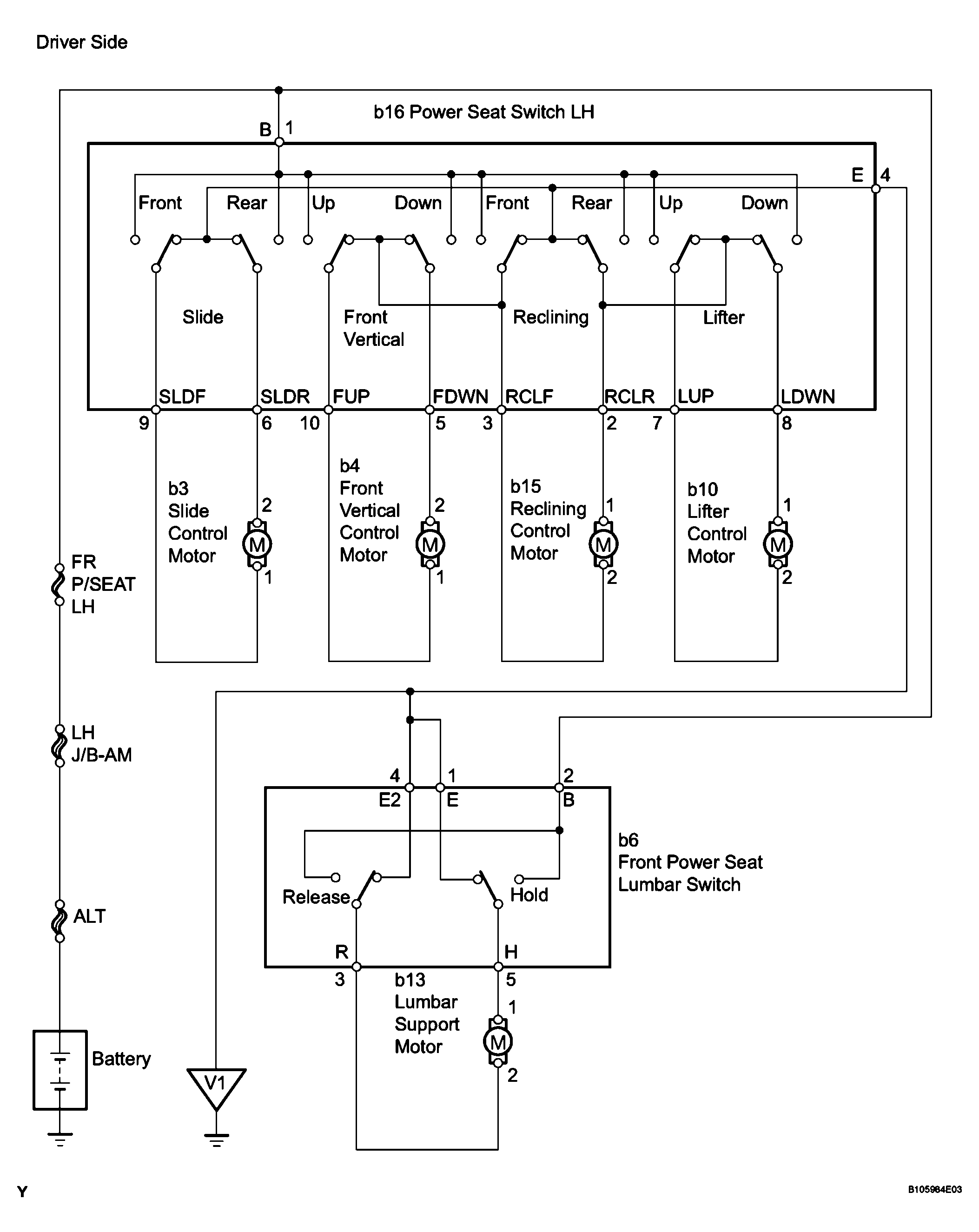

Fig 1: System Diagram - Front Power Seat Control (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

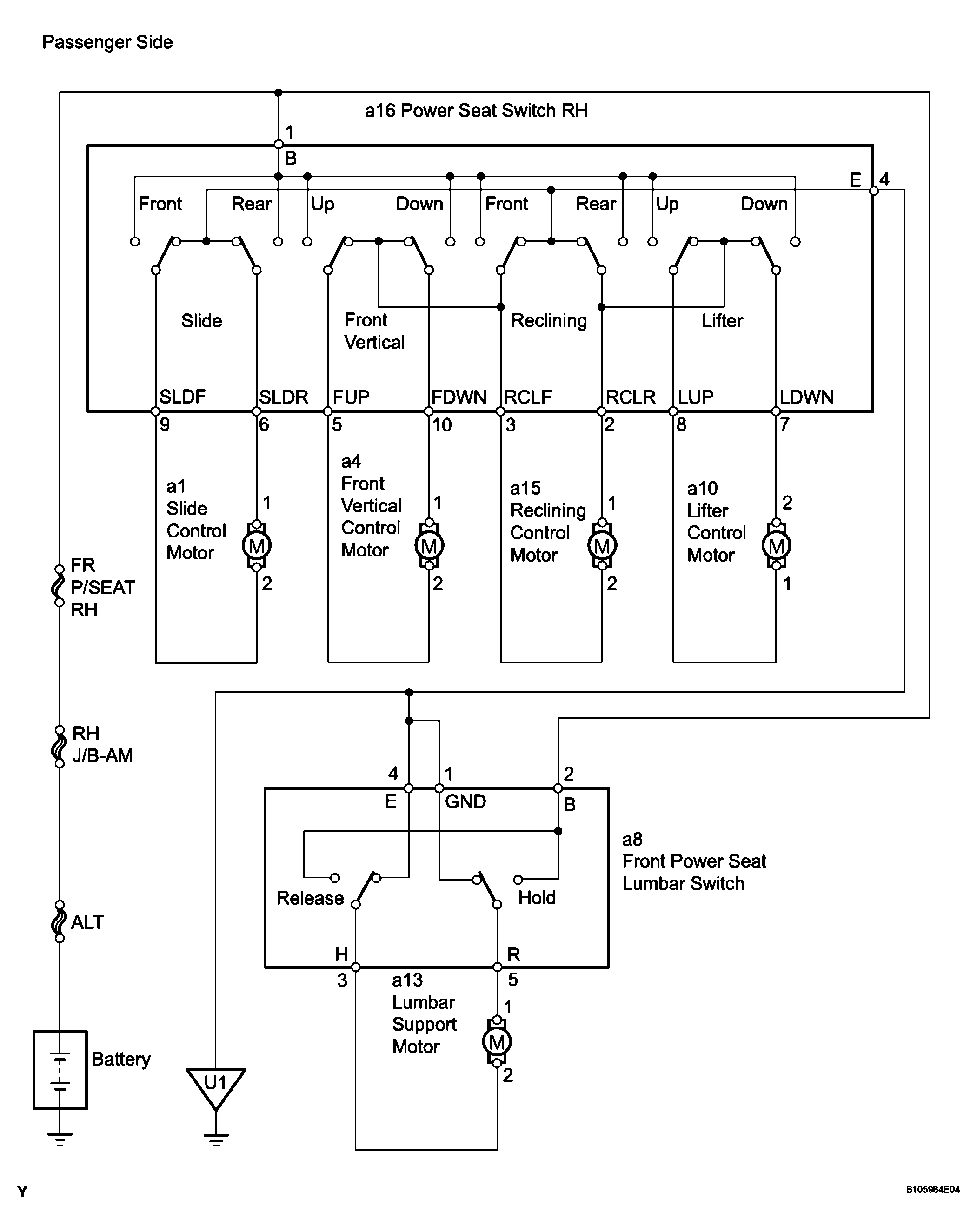

Fig 2: System Diagram - Front Power Seat Control (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
