Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Seat
>>
Climate Control Seat System
>>
System Diagram
System Diagram

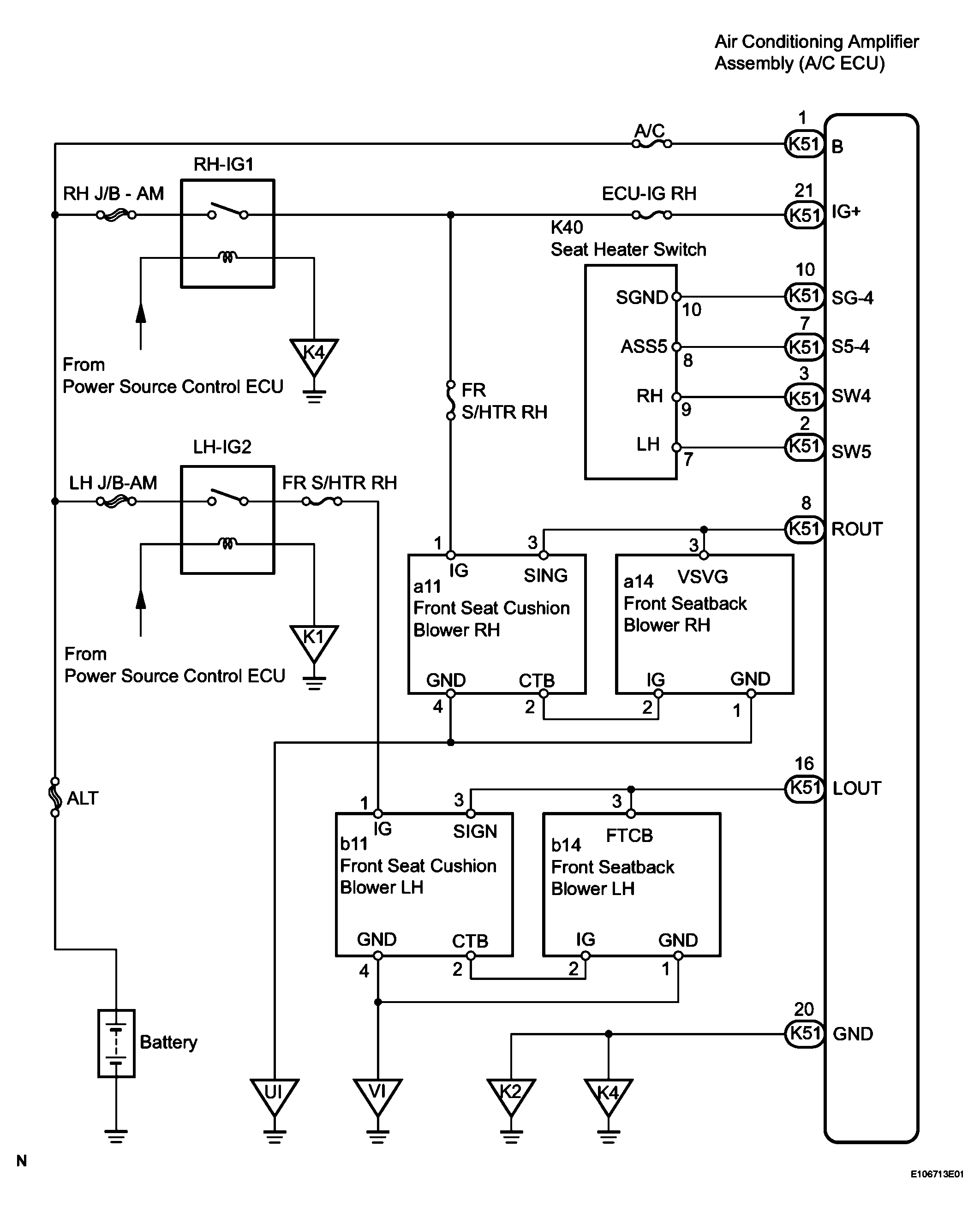

Fig 1: System Diagram - Climate Control Seat System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
