Rear Sunshade Assembly: Components

Fig 1: Rear Sunshade Replacement Components With Torque Specifications (1 Of 2)
G04023911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

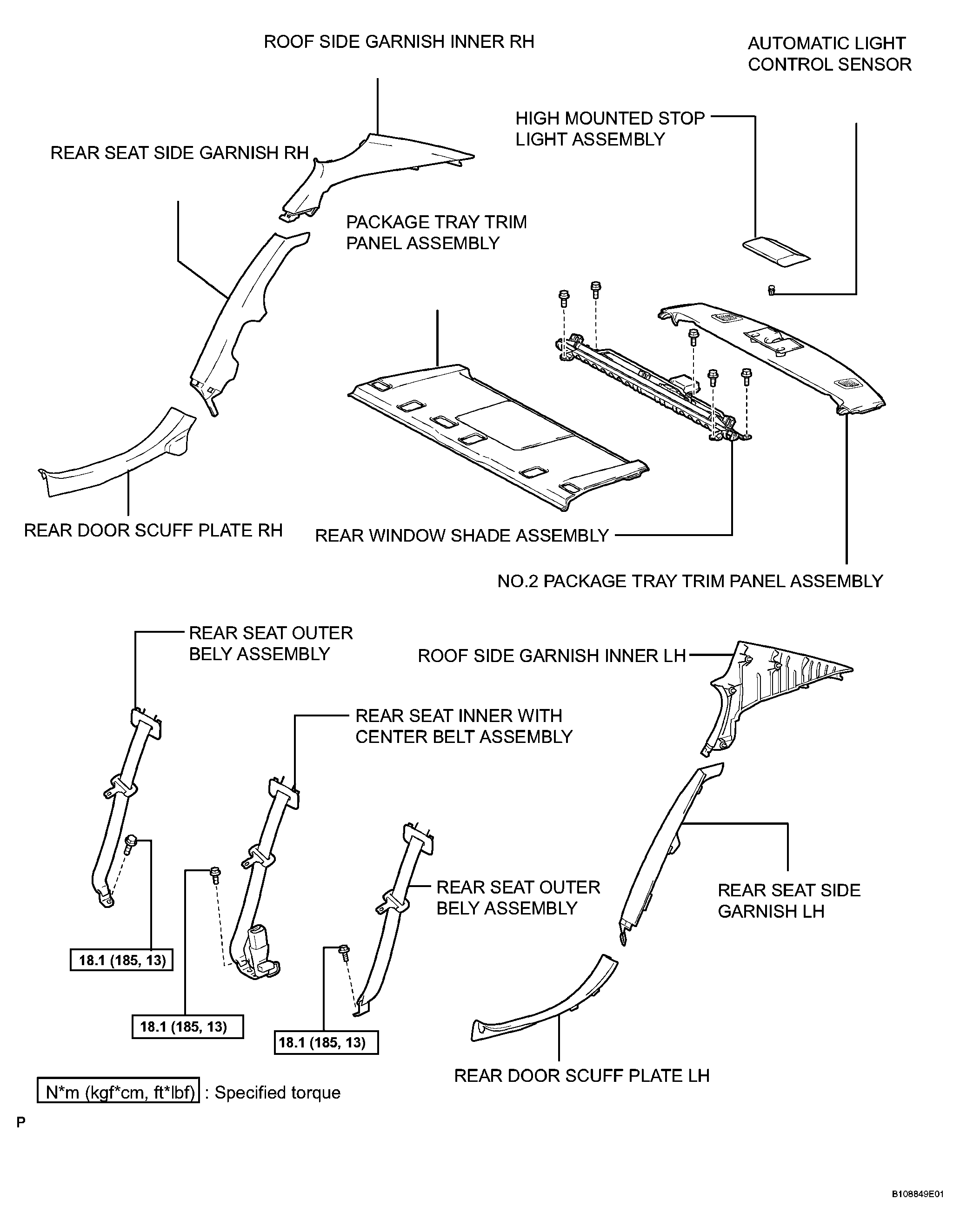

Fig 2: Rear Sunshade Replacement Components With Torque Specifications (2 Of 2)
G04023912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
