Rocker Panel Moulding: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE FRONT FENDER WHEEL OPENING MOULDING (See  REMOVAL   )
2. REMOVE QUARTER PANEL WHEEL OPENING MOULDING (See  REMOVAL   )
3. REMOVE REAR FLOOR HOUSING SHIELD (See  REMOVAL   )
4. REMOVE FRONT DOOR WEATHERSTRIP

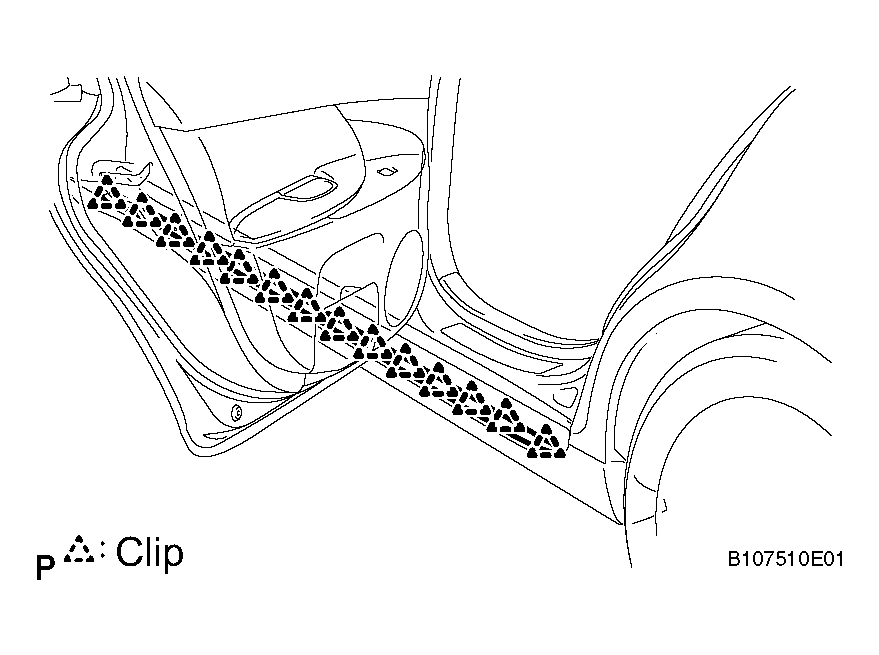

   1. Detach the 14 clips and remove the weatherstrip.
      Fig 1: Detaching Clips And Identifying Weatherstrip

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE ROCKER PANEL MOULDING

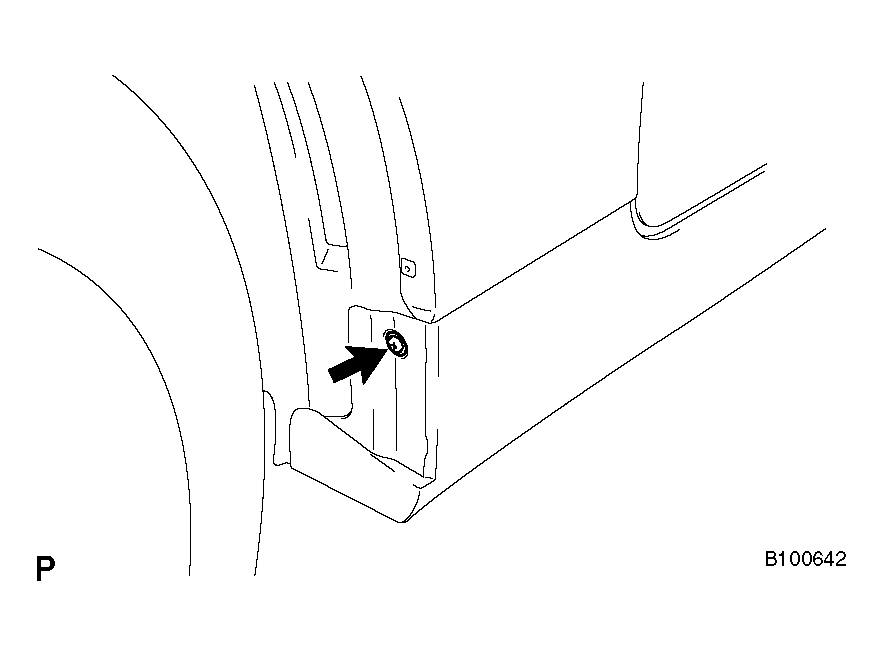

   1. Remove the screw on the front side.
      Fig 2: Identifying Screw On Front Side

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

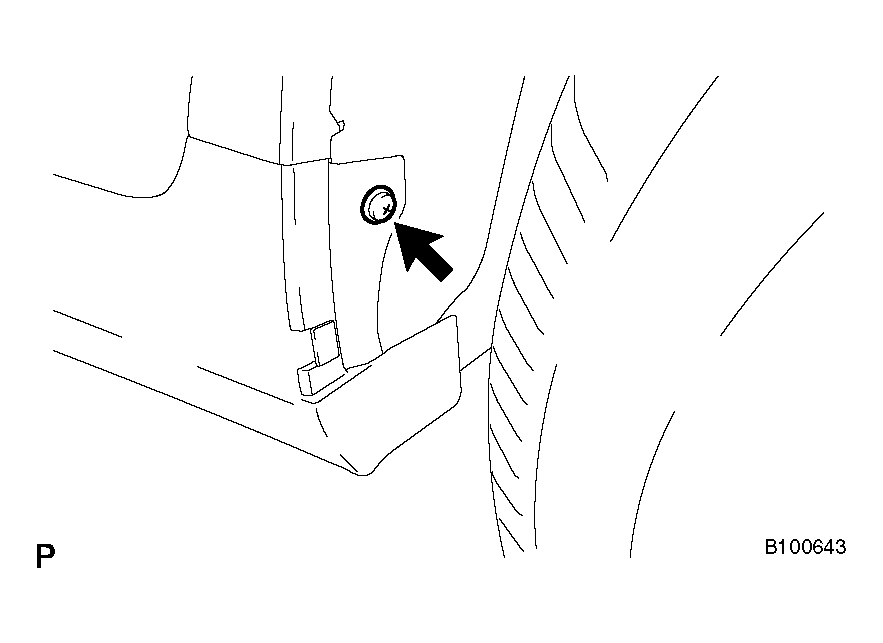

   2. Remove the screw on the rear side.
      Fig 3: Identifying Screw On Rear Side

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

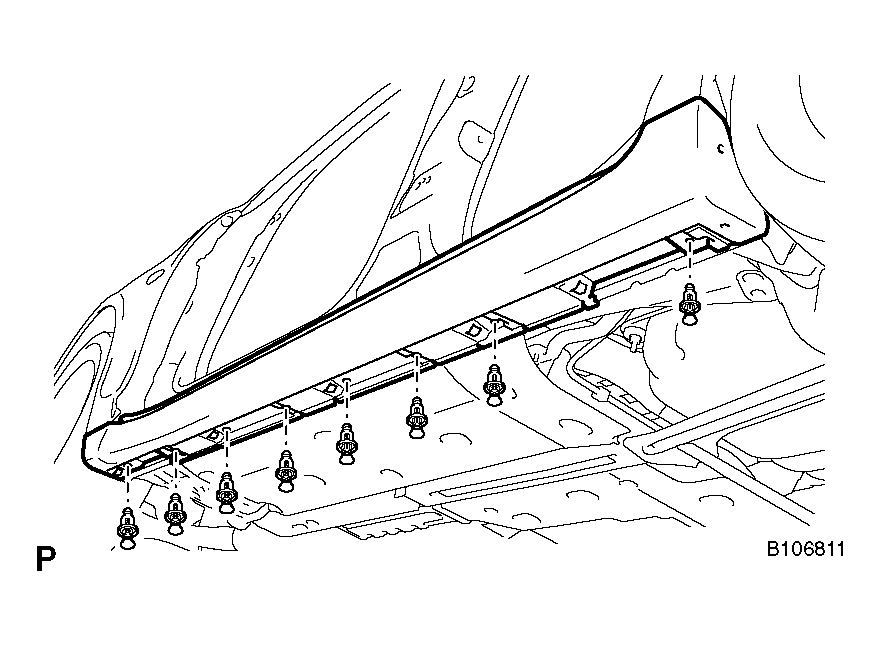

   3. Remove the 8 clips.
      Fig 4: Identifying Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

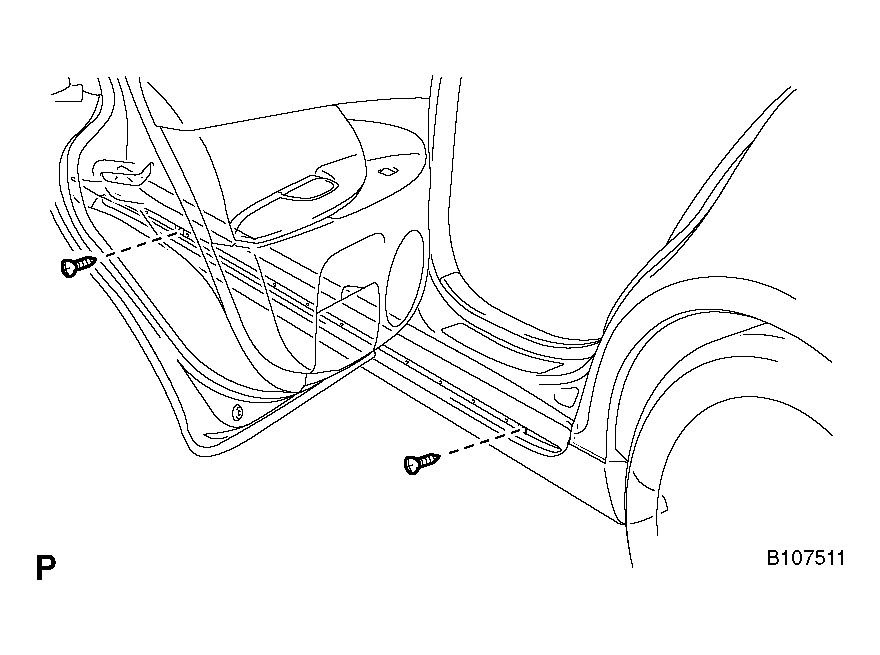

   4. Remove the 2 screws.
      Fig 5: Identifying Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

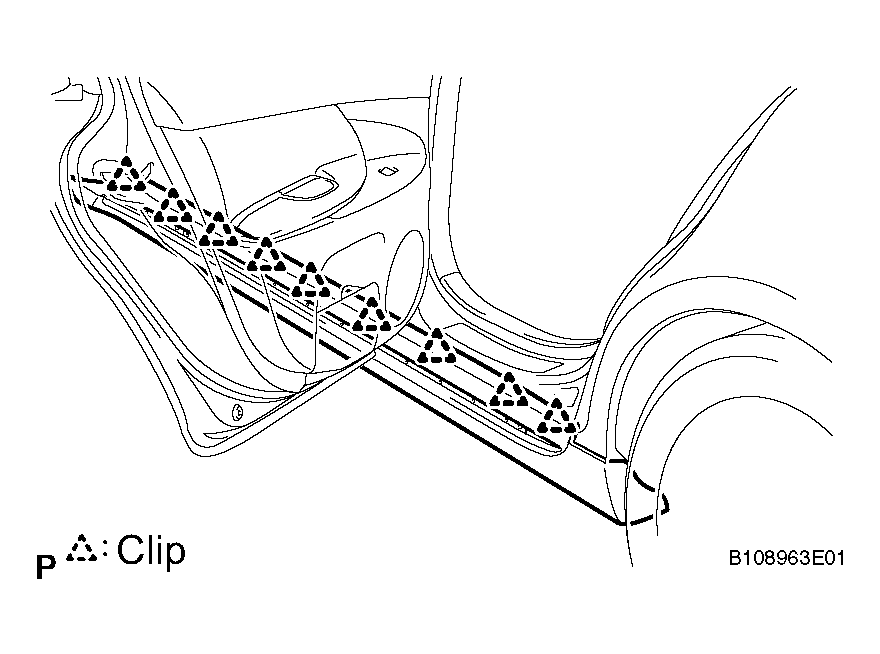

   5. Detach the 9 clips and remove the moulding.
      Fig 6: Detaching Clips And Identifying Moulding

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
