Rear Spoiler: Installation

HINT:

• When installing the spoiler, heat the vehicle body and spoiler using a heat light.
• A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

  Heating temperature

  HEATING TEMPERATURE



  Item	Temperature
  Vehicle Body	40 to 60°C (104 to 140°F)
  Spoiler	20 to 30°C (68 to 86°F)

  NOTE: Do not heat the body and spoiler excessively.
  1. INSTALL REAR SPOILER SUB-ASSEMBLY
     1. Clean the vehicle body surface.
        1. Using a heat light, heat the vehicle body surface.
        2. Remove the double-sided tape from the vehicle body.
        3. Wipe off any tape adhesive residue with cleaner.
     2. If reusing the spoiler:

        Clean the spoiler.

        1. Using a heat light, heat the spoiler.
        2. Remove the double-sided tape from the spoiler.
        3. Wipe off any tape adhesive residue with cleaner.
        4. Apply new double-sided tape to the spoiler.
     3. Install the spoiler.
        1. Using a heat light, heat the vehicle body and spoiler.
        2. Remove the peeling paper from the face of the spoiler.

           HINT:

           After removing the peeling paper, keep the exposed adhesive free from foreign matter.

     4. Install the spoiler with the 4 nuts and clip.

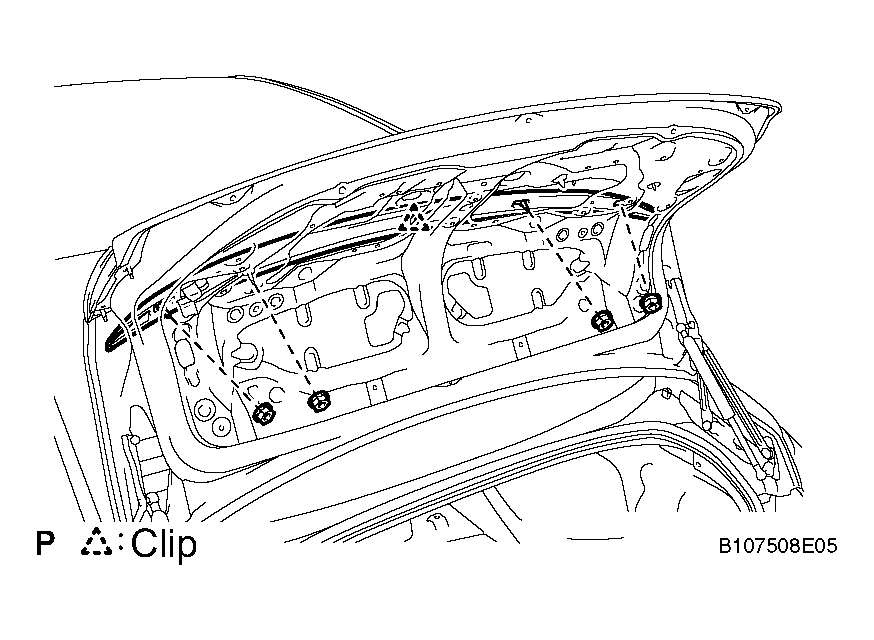

        Fig 1: Identifying Spoiler With 4 Nuts And Clip

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LUGGAGE COMPARTMENT DOOR COVER (See  INSTALLATION   )
  3. INSTALL DOOR INSIDE HANDLE BEZEL (See  INSTALLATION   )
  4. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP (See  INSTALLATION   )
