Rear Spoiler: Components

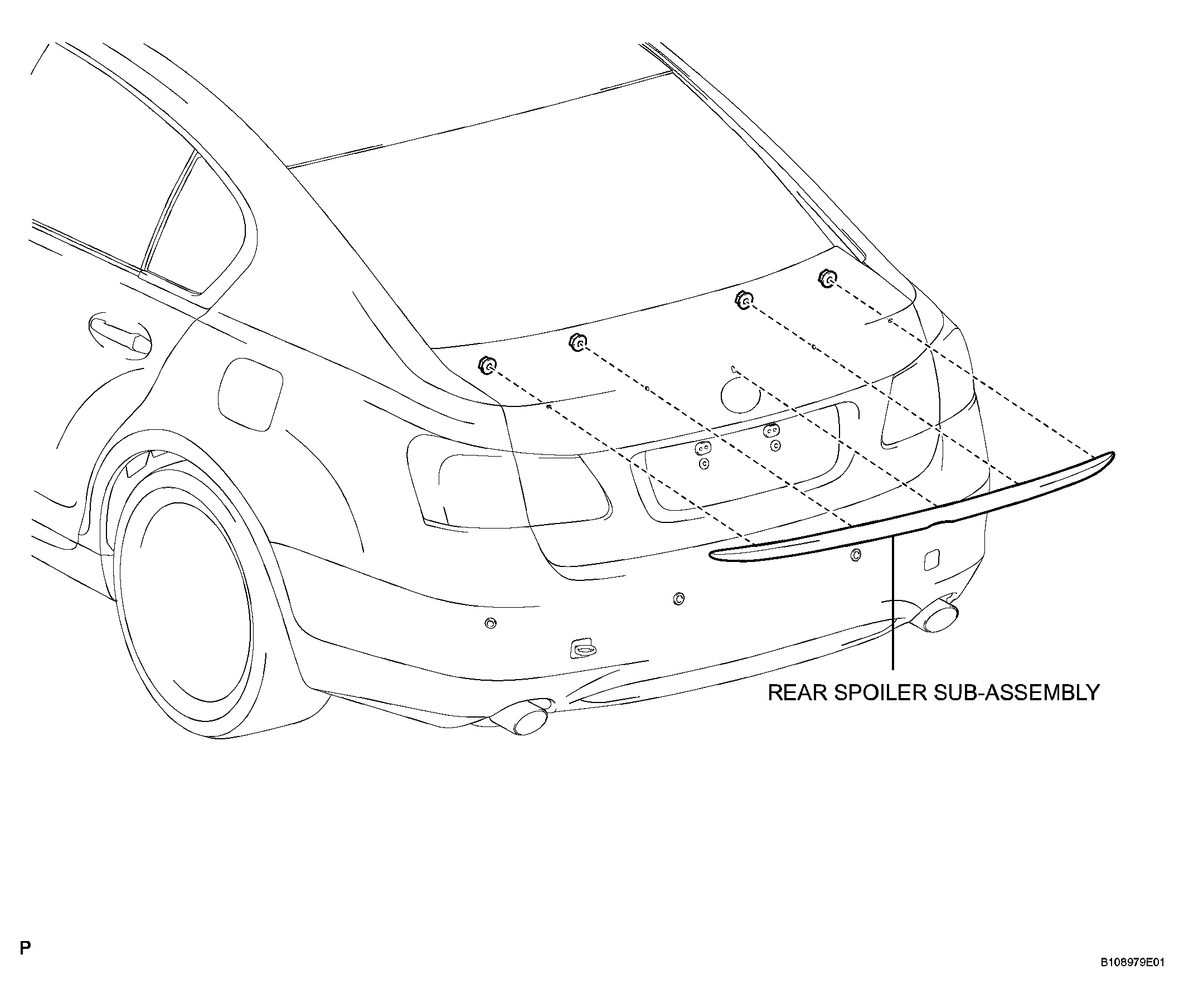

Fig 1: Identifying Rear Spoiler Components (1 Of 2)
G04023824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Rear Spoiler Components (2 Of 2)
G04023825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
