Outside Moulding: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.
• When installing the moulding, heat the vehicle body and moulding using a heat light.

  Heating temperature

  HEATING TEMPERATURE



  Item	Temperature
  Vehicle Body	40 to 60°C (104 to 140°F)
  Moulding	20 to 30°C (68 to 86°F)

1. INSTALL OUTSIDE MOULDING
   1. Clean the vehicle body surface.
      1. Using a heat light, heat the vehicle body surface.
      2. Remove the double-sided tape from the vehicle body.
      3. Wipe off any tape adhesive residue with cleaner.
   2. If reusing the moulding:

      Clean the moulding.

      1. Using a heat light, heat the moulding.
      2. Remove the double-sided tape from the moulding.
      3. Wipe off any tape adhesive residue with cleaner.

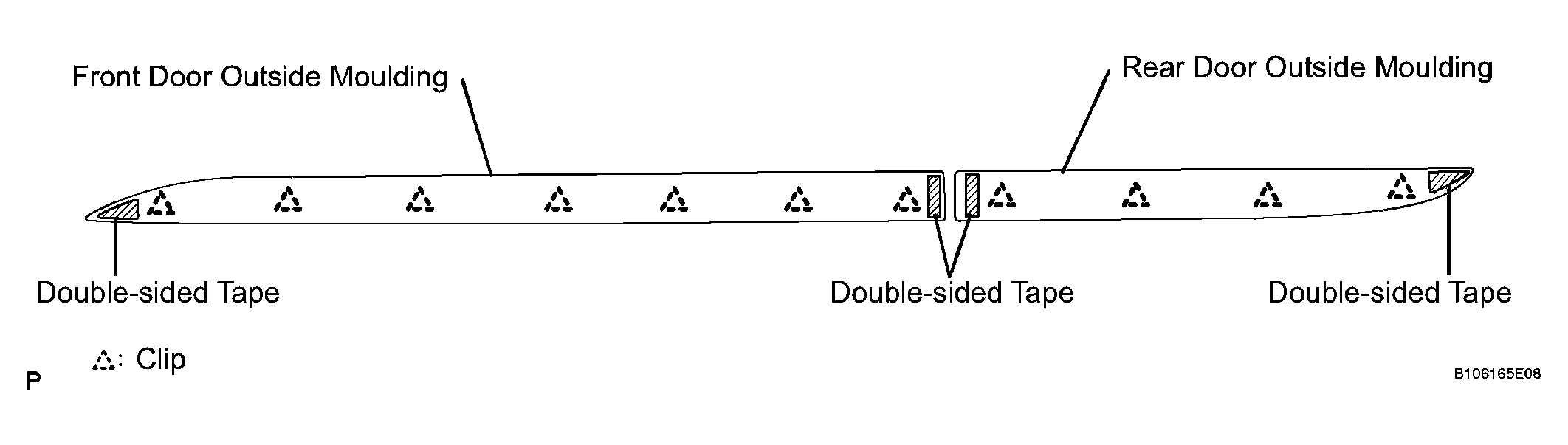

      4. Apply new double-sided tape to the moulding, as shown in the illustration.
         Fig 1: Applying New Double-Sided Tape To Moulding

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Install the moulding.
      1. Using a heat light, heat the vehicle body and moulding.
      2. Remove the peeling paper from the face of the moulding.

         HINT:

         After removing the peeling paper, keep the exposed adhesive free from foreign matter.

      3. Install the moulding.
