Cannot Call in a Certain Place

1. Check if a cellular phone can make calls in a certain place.

   OK : It can make calls.

NG : END (CELLULAR PHONES CAN ONLY FUNCTION IN CELLULAR SERVICE AREAS)

OK : GO TO NEXT STEP

1. Check if the reception level is the same on a cellular phone and the multi-display.

   OK : Reception level is different.

NG : REPLACE MULTI-DISPLAY

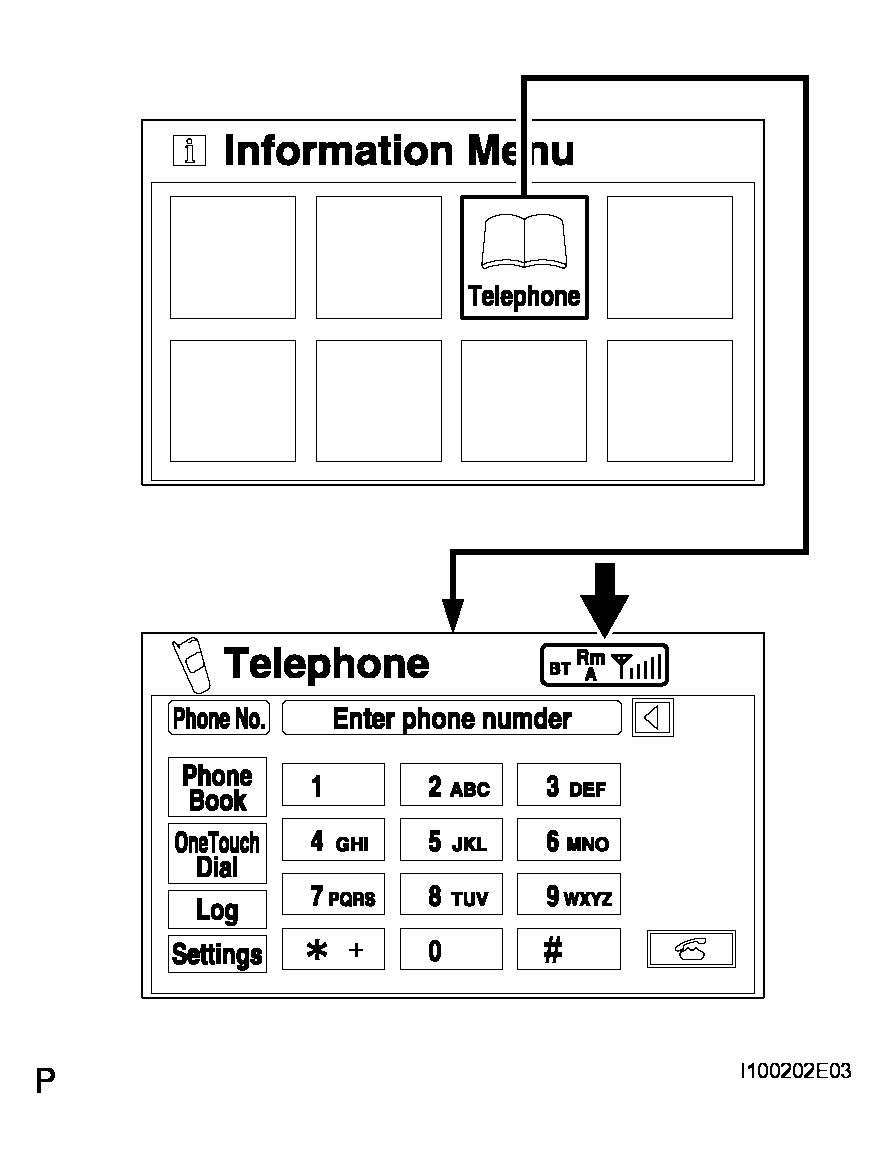

Fig 1: Identifying Reception Level

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Place a cellular phone close to the multi-display.
2. Check if the reception level becomes the same on the cellular phone and the multi-display.

   OK : Reception level becomes the same.

   HINT:

   Multi-display receives different strength radio waves depending on the radio wave strength transmitted by the cellular phone.

NG : REPLACE MULTI-DISPLAY

Fig 2: Identifying Reception Level

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : END
