Rear Combination Light Assembly: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See  REMOVAL  )
3. REMOVE TOOL BOX (See  REMOVAL  )
4. REMOVE REAR FLOOR FINISH PLATE (See  REMOVAL  )
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH (See  REMOVAL  )
6. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE LH (See  REMOVAL  )
7. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT (See  REMOVAL  )
8. REMOVE REAR COMBINATION LIGHT ASSEMBLY
   1. Disconnect the connector.
   2. Remove the 3 nuts and rear combination light.

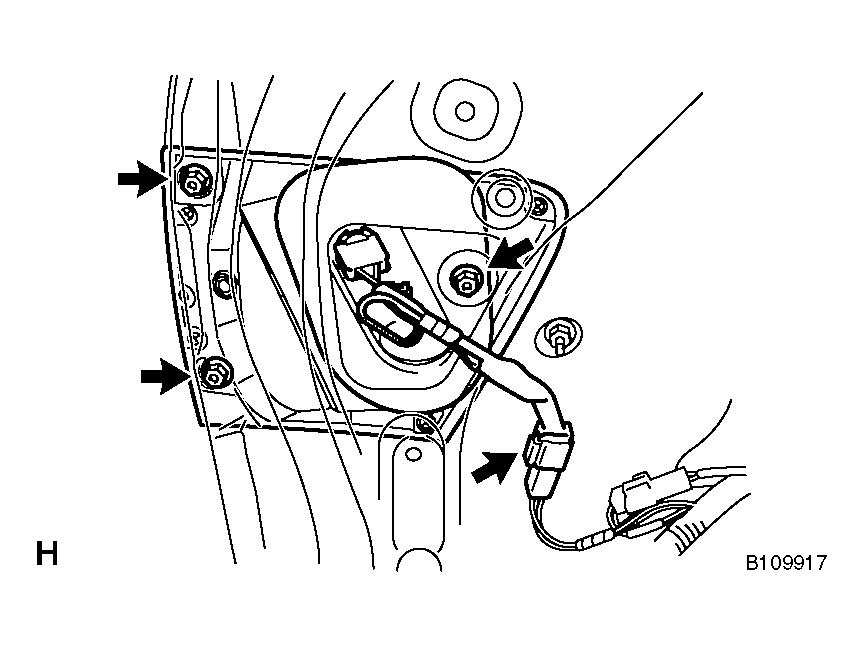

      Fig 1: Identifying Nuts And Rear Combination Light

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the rear combination light bulb from the rear combination light socket and wire subassembly.
   4. Remove the gasket.
      NOTE:

      • Be sure to remove the gasket completely from the body.
      • Be sure to replace it with the supplied rear combination light gasket to prevent water intrusion.

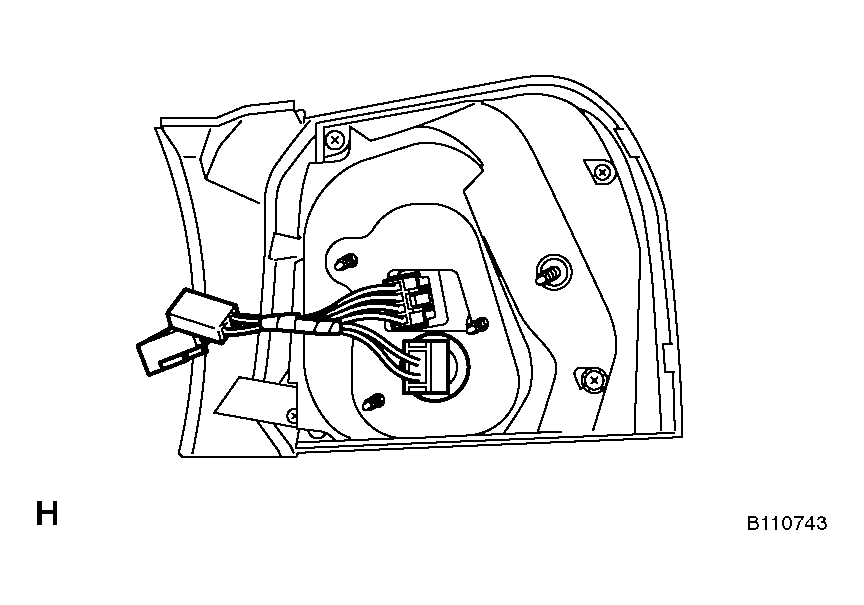

      Fig 2: Identifying Rear Combination Light Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE REAR LIGHT ASSEMBLY
   1. Disconnect the connector.
   2. Remove the 3 nuts and rear light.
   3. Remove the rear light bulb from the rear light socket and wire.
   4. Remove the gasket.
      NOTE:

      • Be sure to remove the gasket completely from the body.
      • Be sure to replace it with the supplied rear light gasket to prevent water intrusion.
        Fig 3: Identifying Connector

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
