Headlight Beam Level Control ECU Power Source Circuit: Wiring Diagram

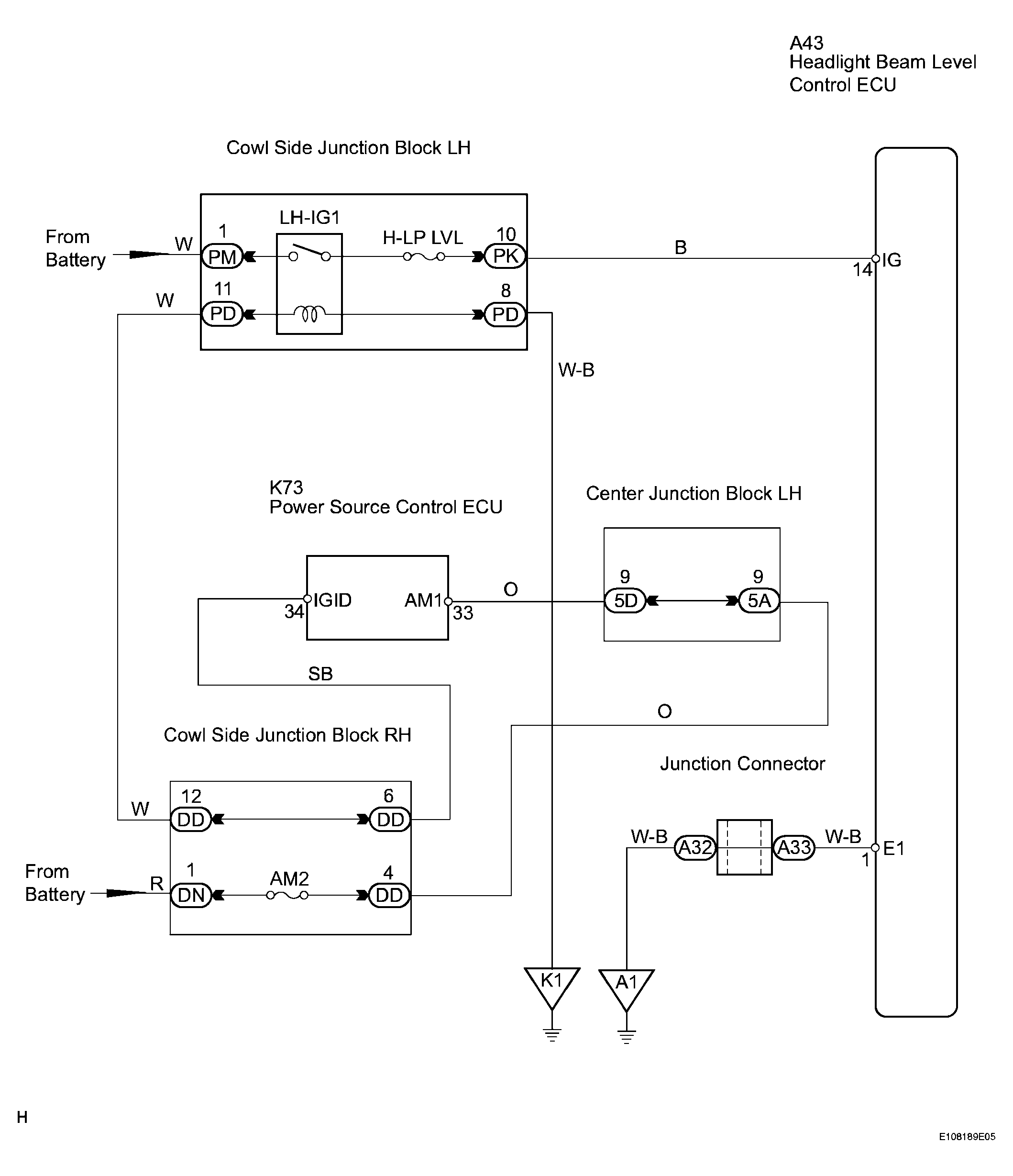

Fig 1: Headlight Beam Level Control ECU Power Source Circuit - Wiring Diagram
G04021629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. INSPECT FUSE (H-LP LVL)
    1. Remove the H-LP LVL fuse from the cowl side junction block RH.
    2. Measure the resistance of the fuse.

      Standard resistance: Below 1 Ω

      NG : REPLACE FUSE

      OK : GO TO NEXT STEP

  2. CHECK WIRE HARNESS (HEADLIGHT BEAM LEVEL CONTROL ECU - BATTERY AND BODY GROUND)
    1. Disconnect the A43 ECU connector.
    2. Measure the voltage and resistance of the wire harness side connector.

      Standard voltage

      STANDARD VOLTAGE SPECIFICATION

      Tester Connection Condition Specified Condition
      A43-14 (IG) - A43-1 (E1)  Engine switch on (IG)  10 to 14 V

      Standard resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      A43-1 (E1) - Body ground  Below 1 Ω

      NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

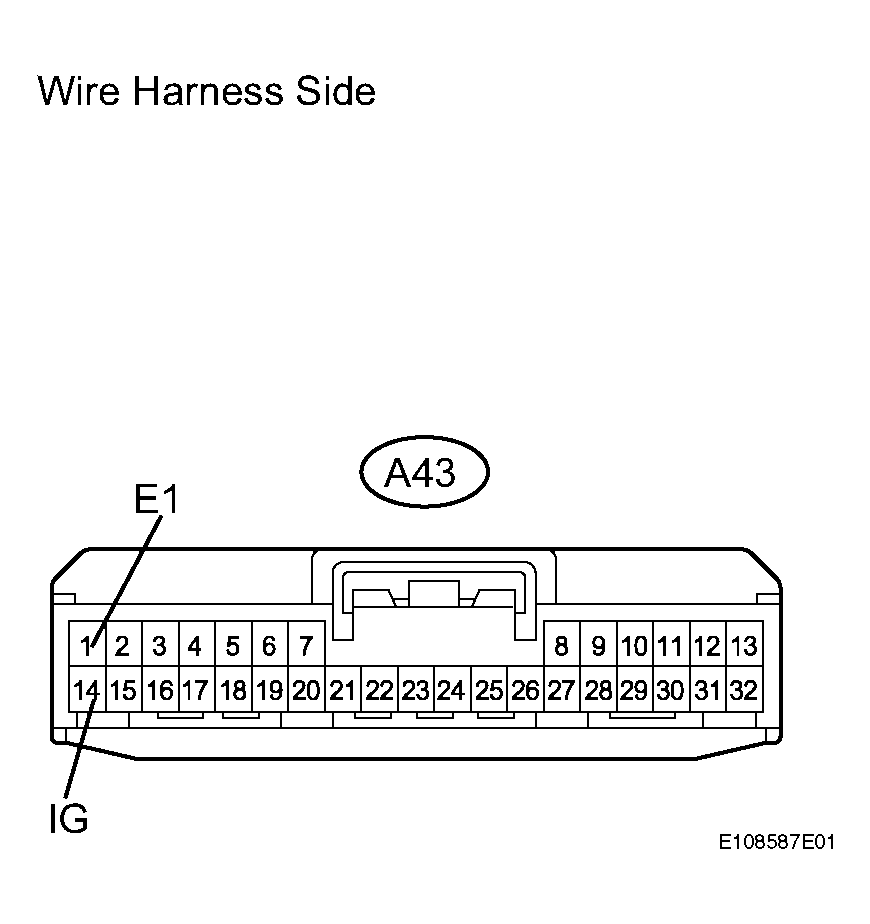

      Fig 2: Identifying A43 ECU Connector
      G04021630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
