High Mounted Stop Light Assembly: Installation

INSTALL AUTOMATIC LIGHT CONTROL SENSOR
1. Connect the connector.
2. Attach the 2 claws and install the sensor to the package tray trim center bracket.

  Fig 1: Identifying Sensor To Package Tray Trim Center Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY
1. Connect the connector.
2. Attach the 2 claws and install the stop light to the package tray trim center bracket.
CONNECT BATTERY NEGATIVE TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).

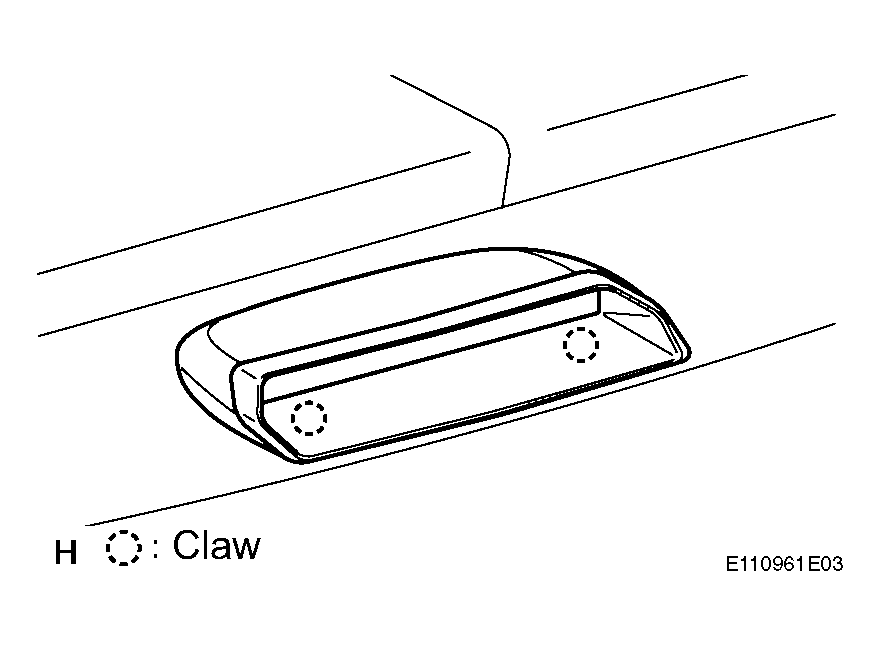

  Fig 2: Identifying Stop Light To Package Tray Trim Center Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal
