Headlight Leveling Ecu: Installation

  1. INSTALL HEADLIGHT LEVELING ECU ASSEMBLY
    1. Connect the connector.
    2. Install the headlight leveling ECU and nut, bolt.
  2. INSTALL FRONT DOOR SCUFF PLATE (See  INSTALLATION  )
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  4. PERFORM INITIALIZATION
    1. Perform initialization procedure (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  5. INSPECT SRS WARNING LIGHT
    1. Inspect SRS warning light (see PRECAUTION ).
  6. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT
    1. Vehicle preparation for headlight aim adjustment (see ADJUSTMENT  ).
  7. PREPARATION FOR HEADLIGHT AIMING
    1. Preparation for headlight aiming (see ADJUSTMENT  ).
  8. INSPECT HEADLIGHT
    1. Inspect headlight (see ADJUSTMENT  ).

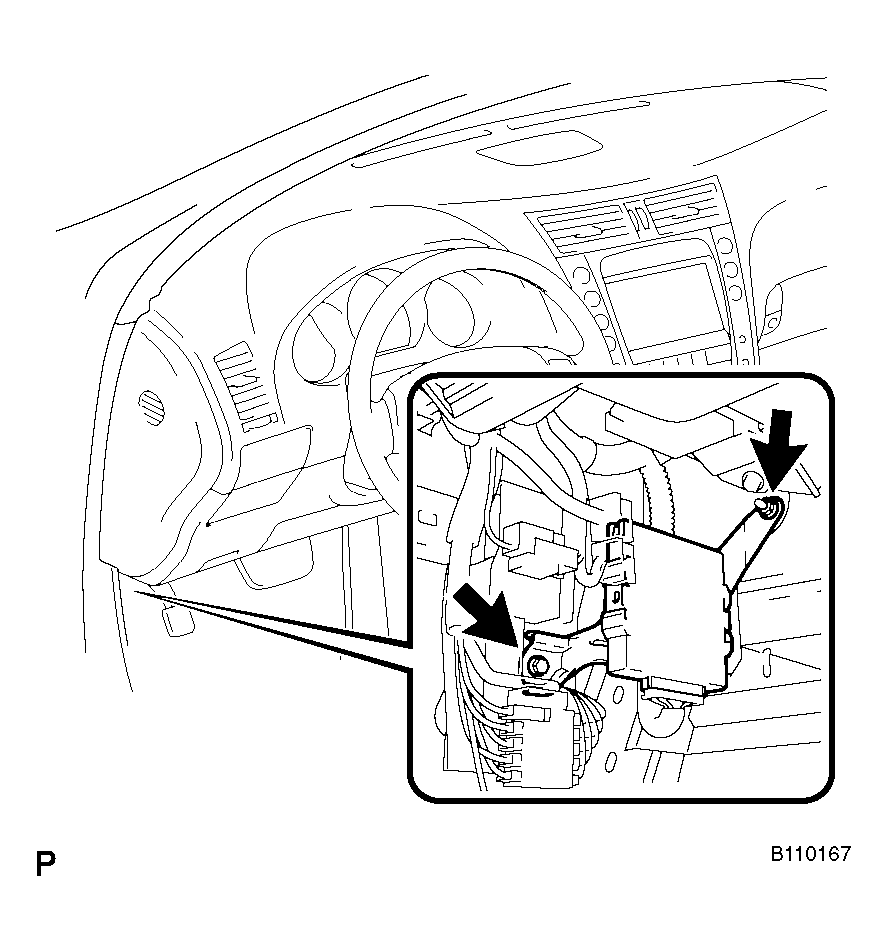

      Fig 1: Identifying Headlight Leveling ECU And Nut, Bolt
      G04021742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
