Dynamic Radar Cruise Control System
>>
Parts Location
Parts Location

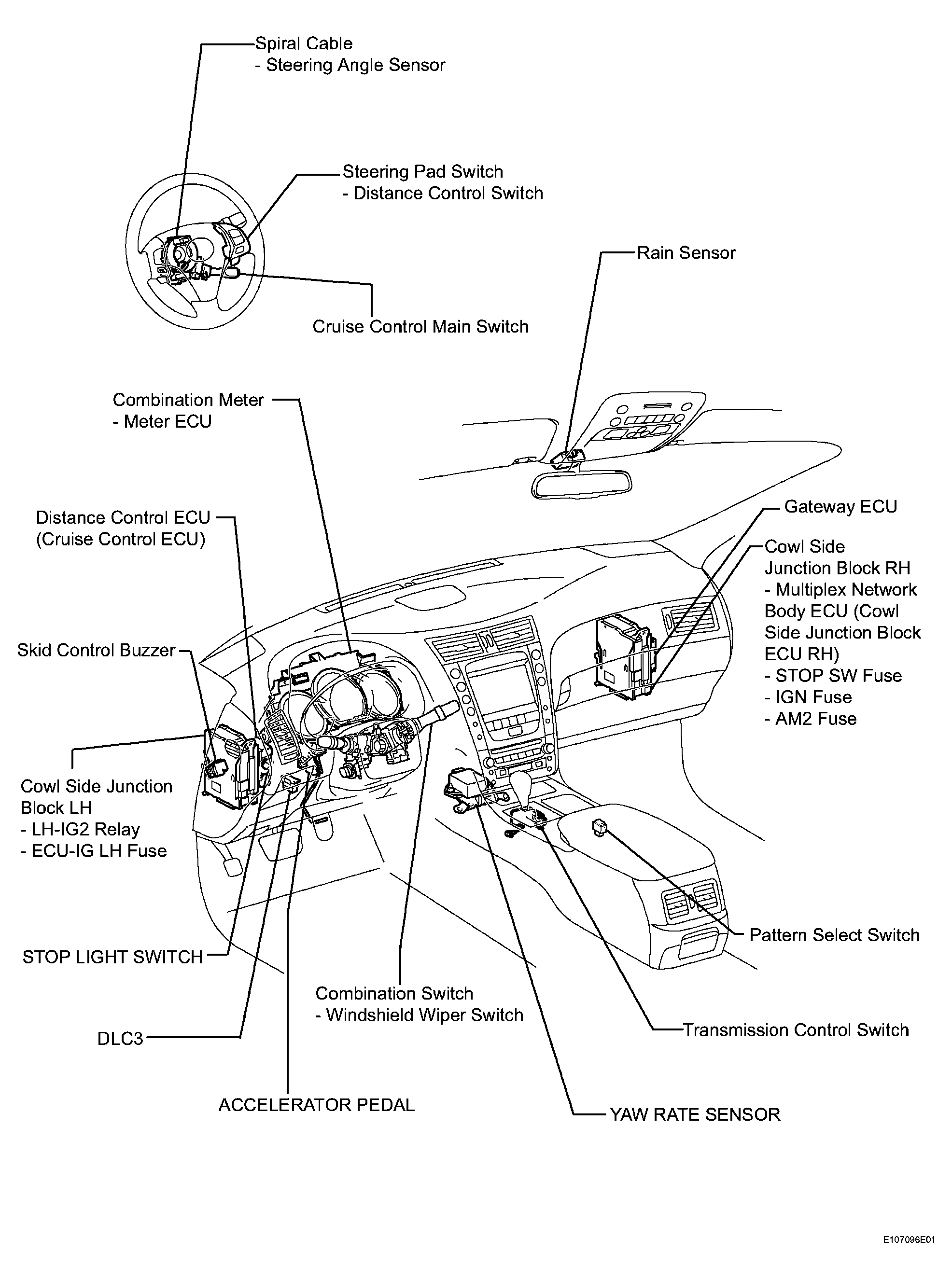

Fig 1: Dynamic Radar Cruise Control System Parts Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

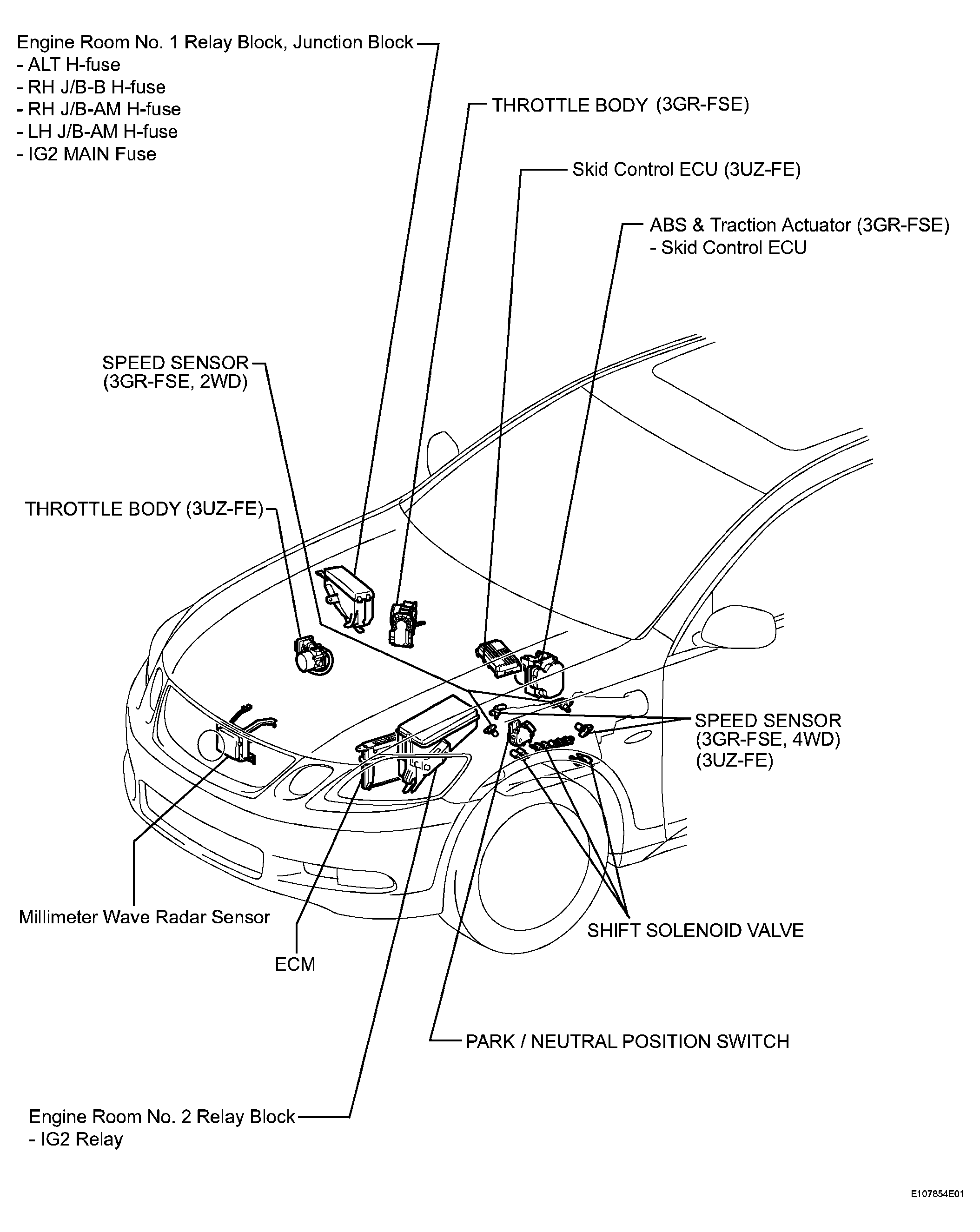

Fig 2: Dynamic Radar Cruise Control System Parts Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

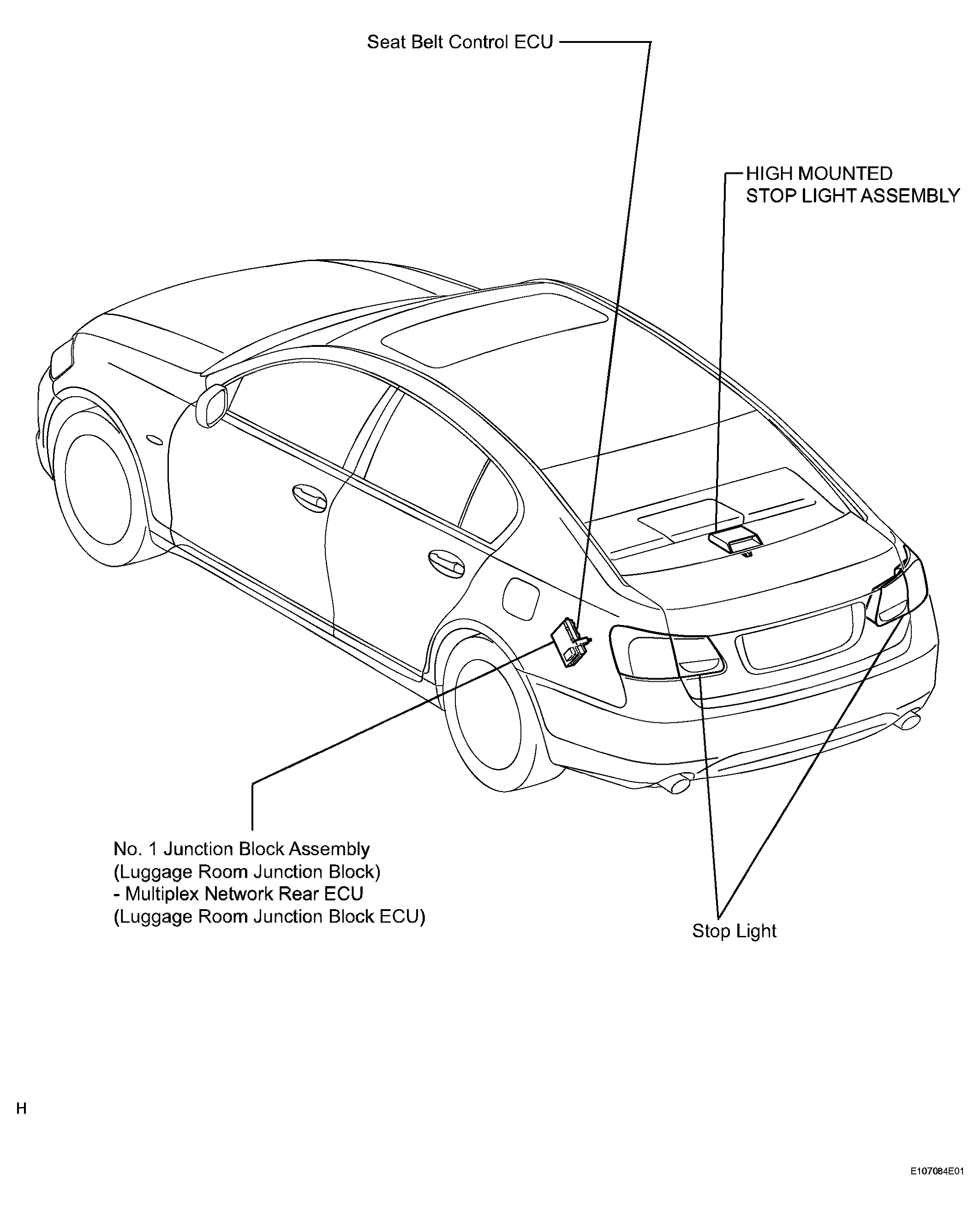

Fig 3: Dynamic Radar Cruise Control System Parts Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
