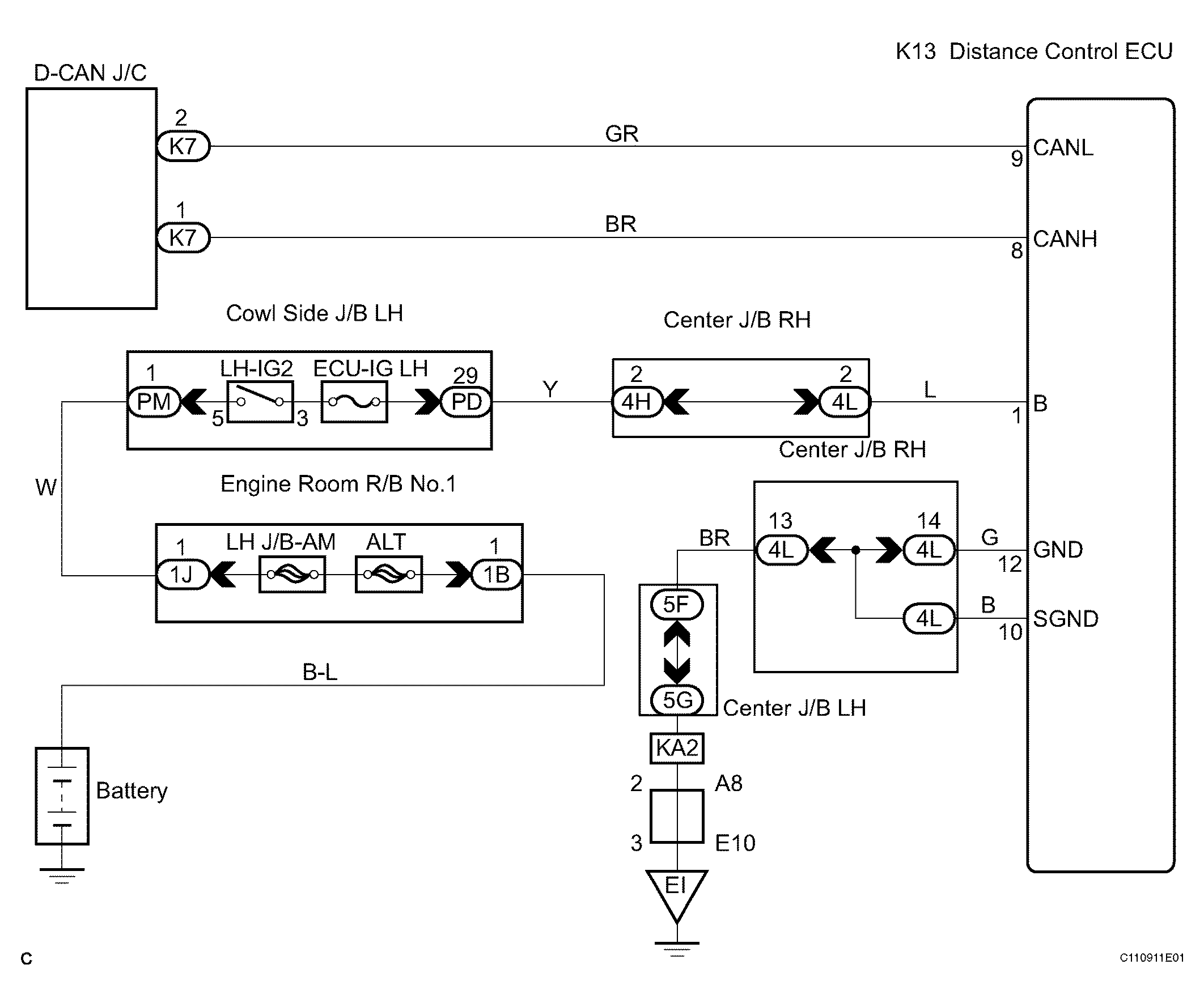

Distance Control ECU Communication Stop Mode: Wiring Diagram

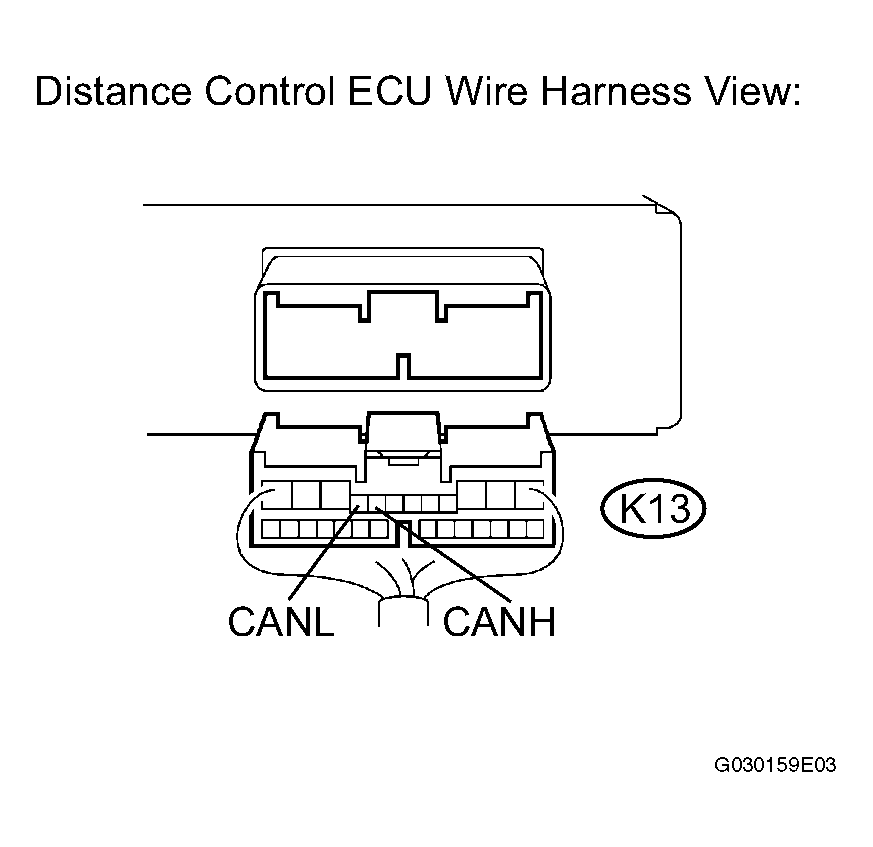

- CHECK CAN BUS LINE FOR DISCONNECTION (DISTANCE CONTROL ECU SUB BUS LINE)
- Turn the engine switch off.
- Disconnect the distance control ECU (K13).
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED VALUE CHARTTester Connection Condition Specified Value K13-8 (CANH) - K13-9 (CANL) Engine switch off 54 to 69 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG : REPAIR OR REPLACE DISTANCE CONTROL ECU SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
OK : GO TO NEXT STEP

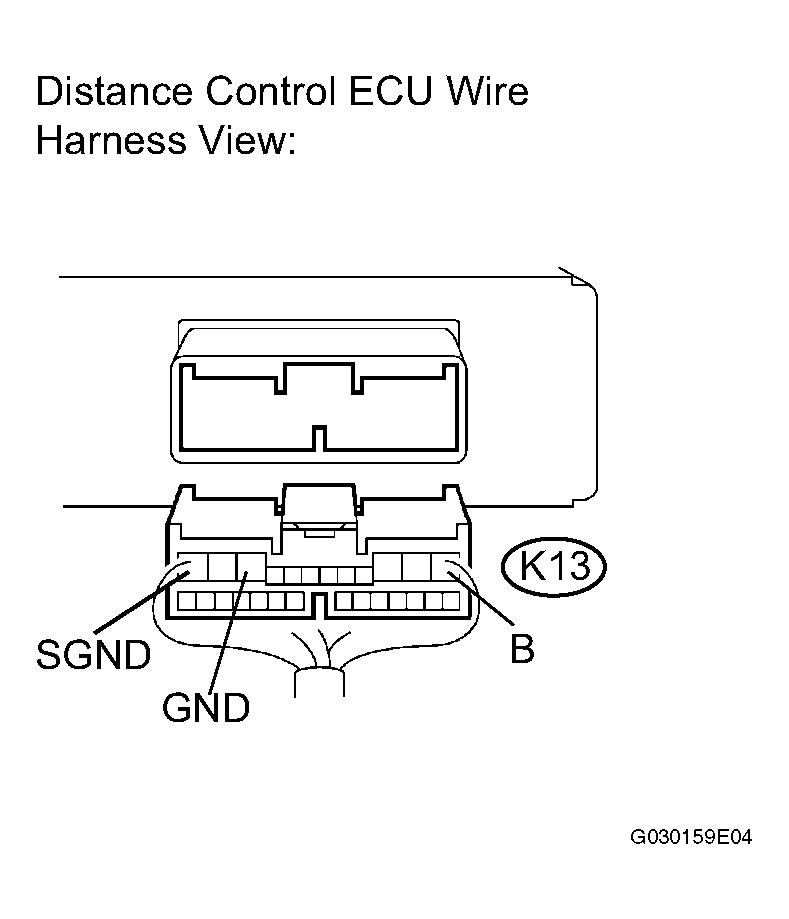

- CHECK WIRE HARNESS (B, GND, SGND)
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED VALUE CHARTTester Connection Condition Specified Value K13-12 (SGND) - Body ground Always Below 1 Ω K13-10 (GND) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard voltage
TESTER CONNECTION SPECIFIED VALUE CHARTTester Connection Condition Specified Value K13-1 (B) - Body ground Engine switch on (IG) 10 to 14 V NG : REPLACE DISTANCE CONTROL ECU
OK : GO TO NEXT STEP
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Measure the resistance according to the value(s) in the table below.
