Seat Position Sensor: Removal

WARNING: This page is about a different car, the 2006 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY (See REMOVAL )
REMOVE FRONT SEAT ASSEMBLY (See REMOVAL )
REMOVE SEAT POSITION SENSOR
1. Using a "Torx" socket wrench (T30), remove the "Torx" screw and seat position sensor with sensor protector.
2. Disconnect the connector.

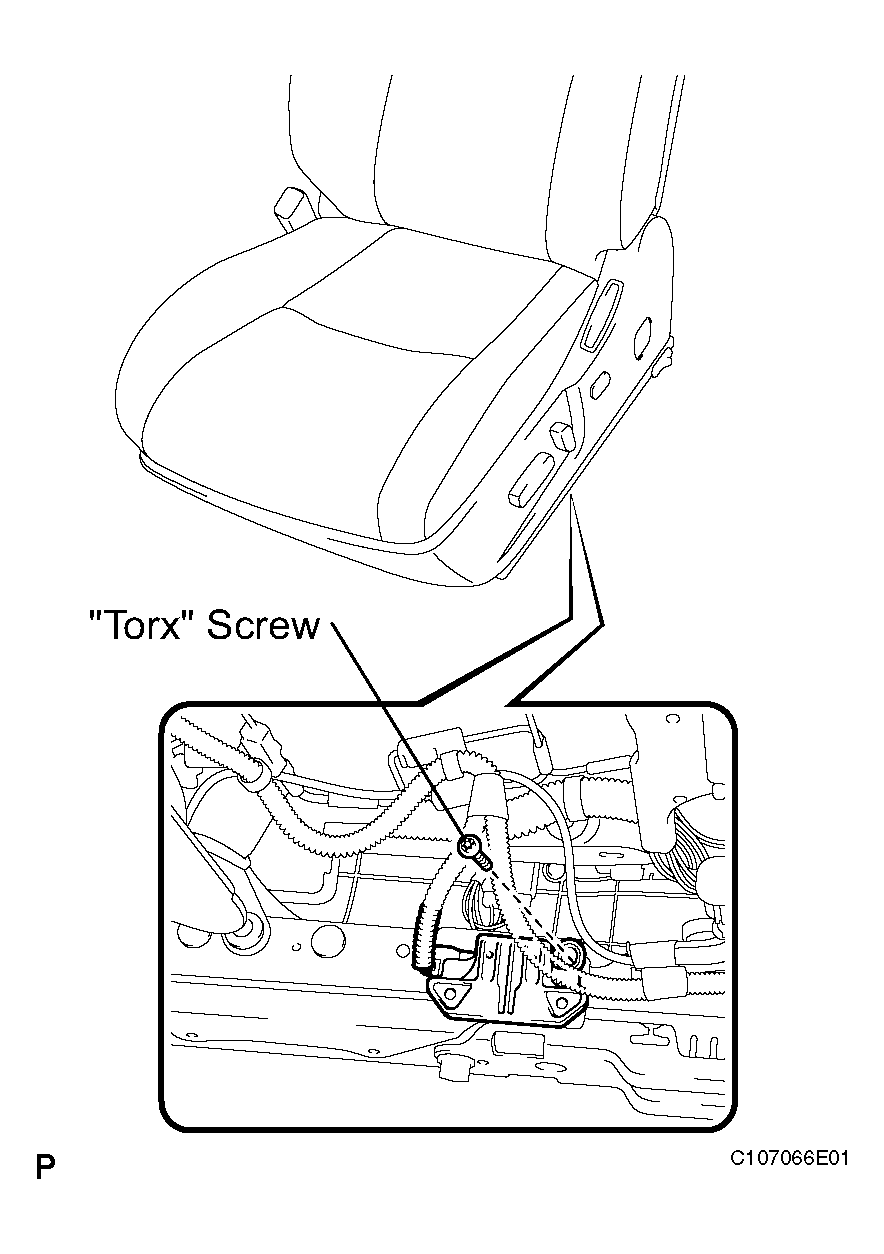

  Fig 1: Identifying "Torx" Screw And Seat Position Sensor With Sensor Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Separate the seat slide position sensor protector from the seat position sensor.

  Fig 2: Identifying Seat Slide Position Sensor Protector From Seat Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
