Front Airbag Sensor: Removal

WARNING: This page is about a different car, the 2006 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
  2. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  3. REMOVE FRONT BUMPER COVER (See  REMOVAL  )
  4. REMOVE HEADLIGHT ASSEMBLY (See  REMOVAL  )
  5. REMOVE FRONT AIRBAG SENSOR
    1. Remove the 2 bolts and front airbag sensor from the body.
    2. Disconnect the connector.

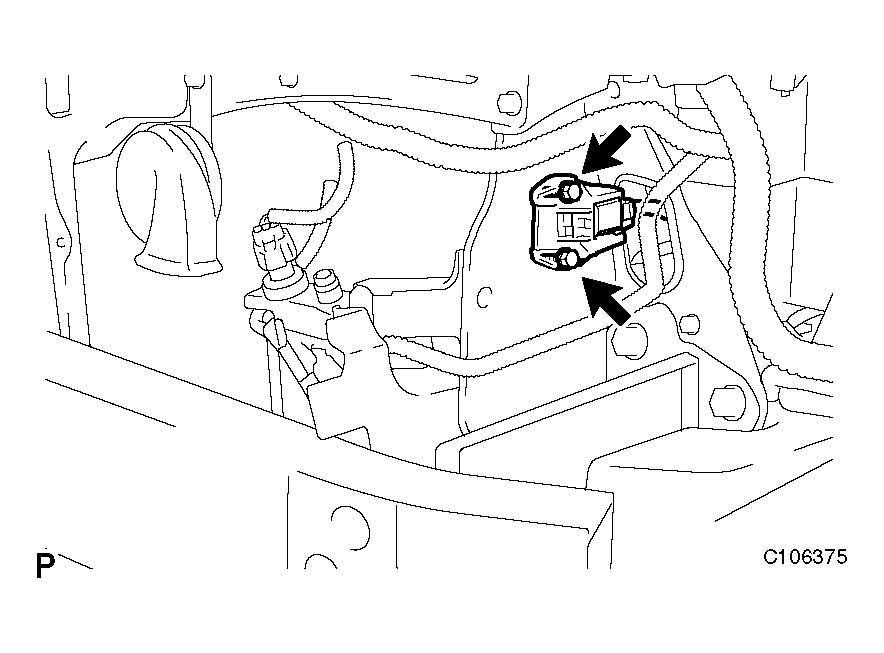

      Fig 1: Identifying Front Airbag Sensor
      G04030993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
