Toe Control Link: Removal

WARNING: This page is about a different car, the 2006 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR TIRE
REMOVE REAR SUSPENSION MEMBER SUBASSEMBLY
REMOVE TOE CONTROL LINK
1. Disconnect the skid control sensor connector.
2. Remove the bolt, and separate the skid control sensor wire from the toe control link.
3. Remove the nut on the axle carrier side.

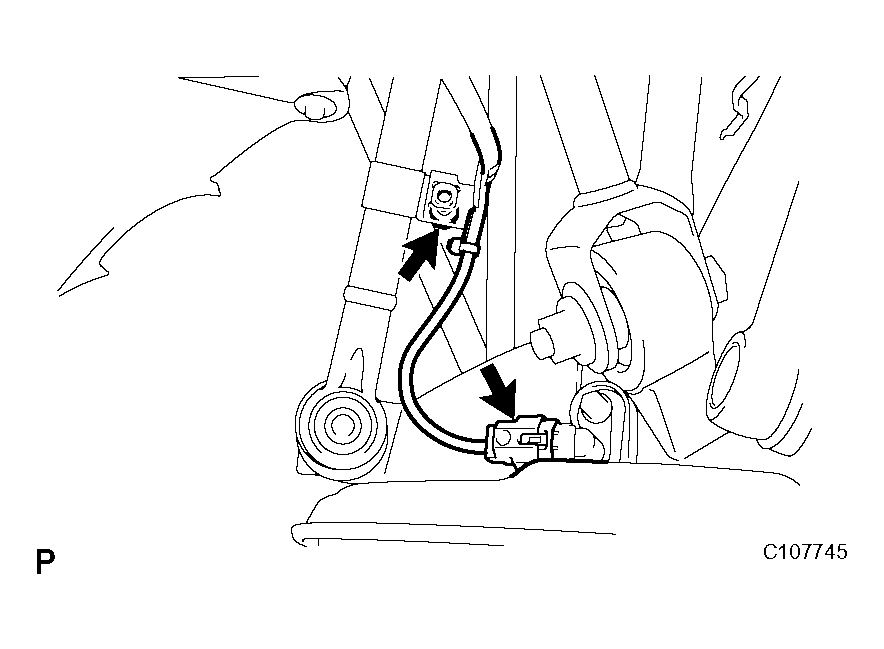

  Fig 1: Identifying Skid Control Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST, disconnect the toe control link.
  SST 09628-00011

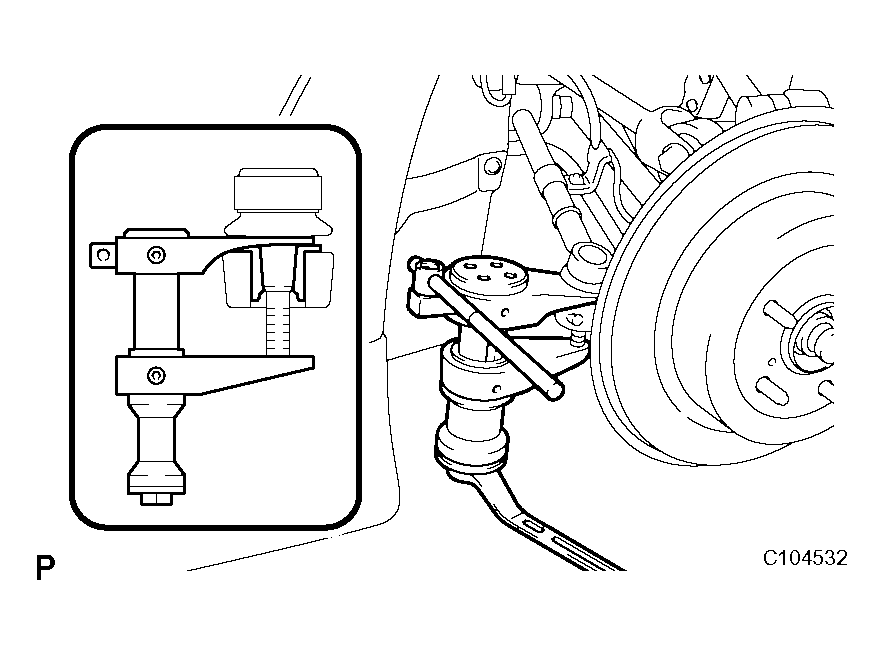

  Fig 2: Identifying Toe Control Link Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Securely tie the string of the SST to the vehicle.
  - Do not damage the dust cover.
  - Securely set the SST on the spacer of the axle carrier.
  - If the spacer of the axle carrier comes off, replace the axle carrier with a new one.
5. Put matchmarks on the rear suspension toe adjust plate No.2 and rear suspension member.
6. Remove the nut, rear suspension toe adjust cam sub-assembly, rear suspension toe adjust plate No.2 and toe control link.

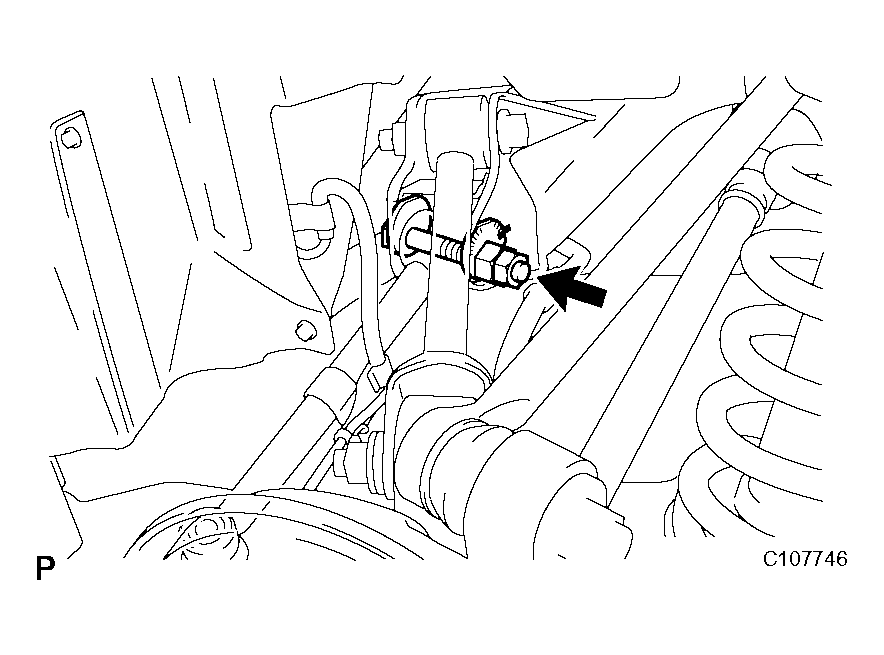

  Fig 3: Identifying Nut, Rear Suspension Toe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
