Transfer Case Front Oil Seal: Components

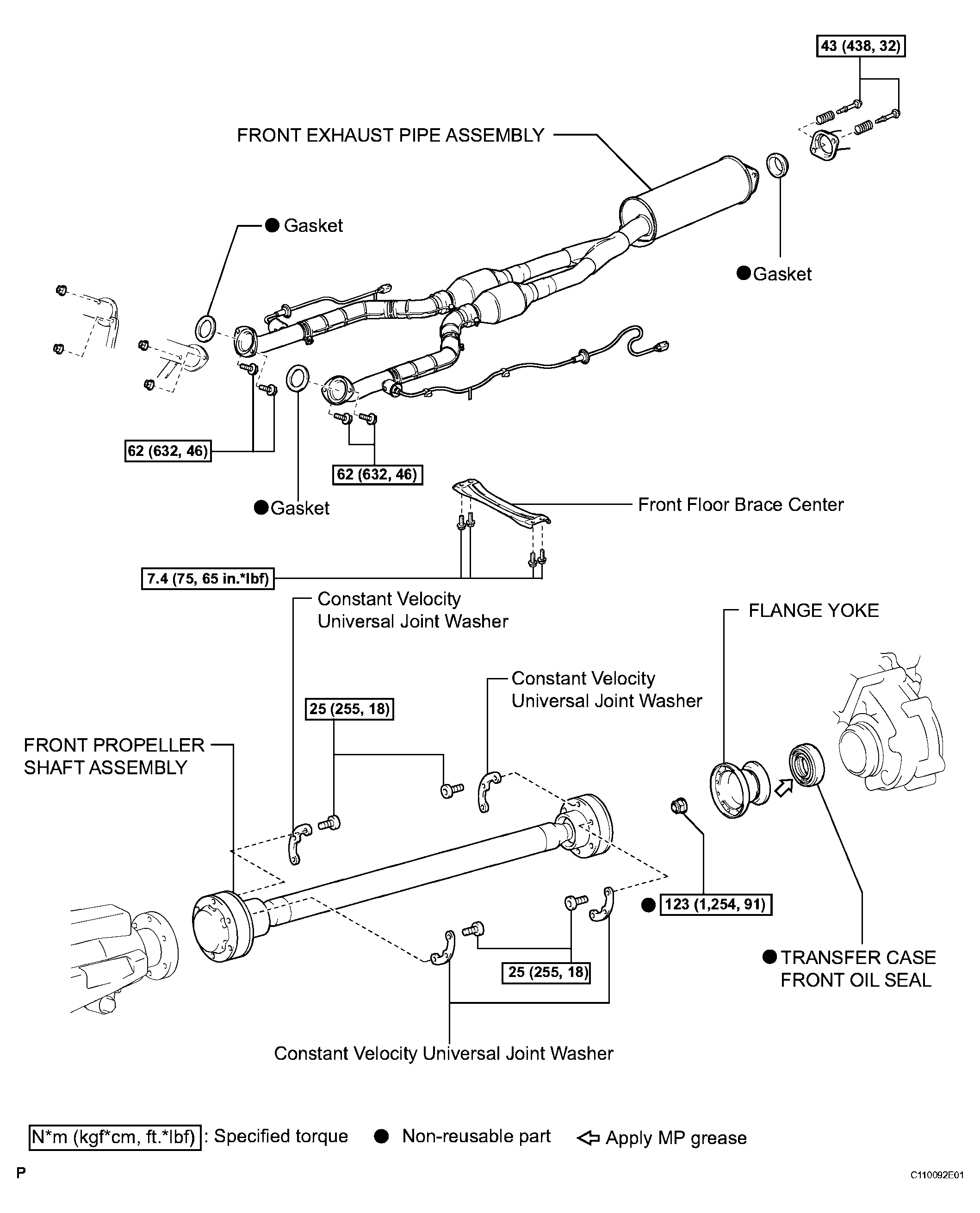

Fig 1: Transfer Case Front Oil Seal Replacement Components With Torque Specifications

G04020351

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
