Transmission Wire: Installation

1. Coat a new O-ring of the transmission wire connector with ATF.
2. Install the O-ring.
   Fig 1: Identifying Transmission Wire Harness O-Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

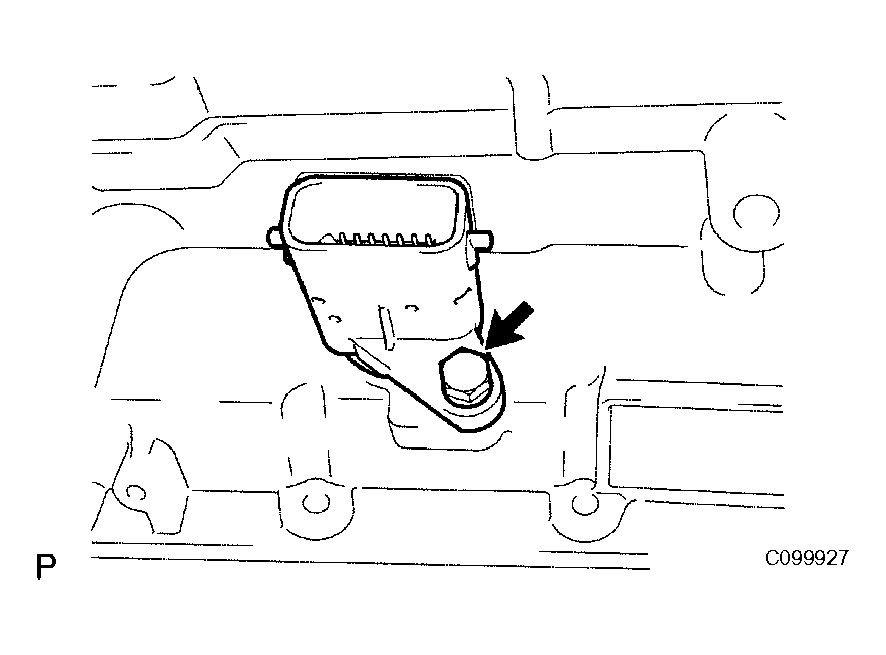

3. Install the transmission wire with the bolt.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

4. Connect the transmission wire connector.
   Fig 2: Locating Internal Wiring Harness Mounting Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

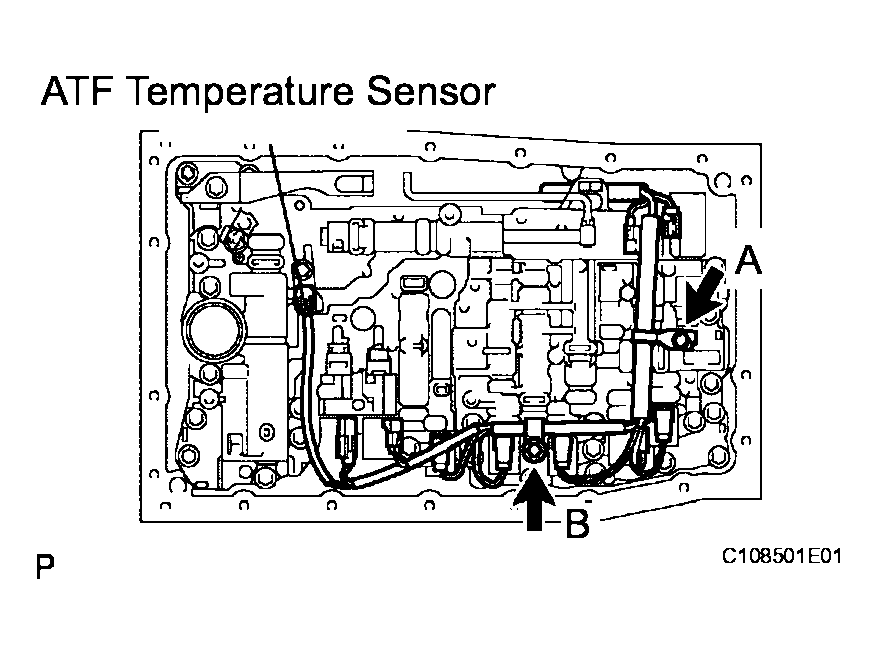

1. Connect the 9 connectors to the solenoid valves.
2. Install the 2 clamps with the 2 bolts.

   Torque: Bolt A

   6.4 N*m (65 kgf*cm, 57 in.*lbf)

   Torque: Bolt B

   10 N*m (102 kgf*cm, 7 ft.*lbf)

3. Install the ATF temperature sensor and lock plate with the bolt.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

   Fig 3: Identifying ATF Temperature Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

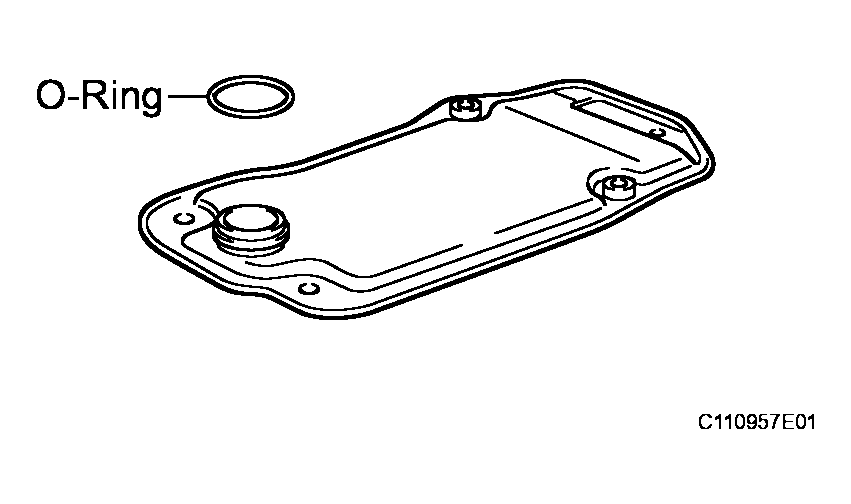

1. Coat a new O-ring with ATF.
2. Install the O-ring.
   Fig 4: Identifying O-Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the oil strainer with the 4 bolts.

   Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf)

   Fig 5: Oil Strainer With mounting Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

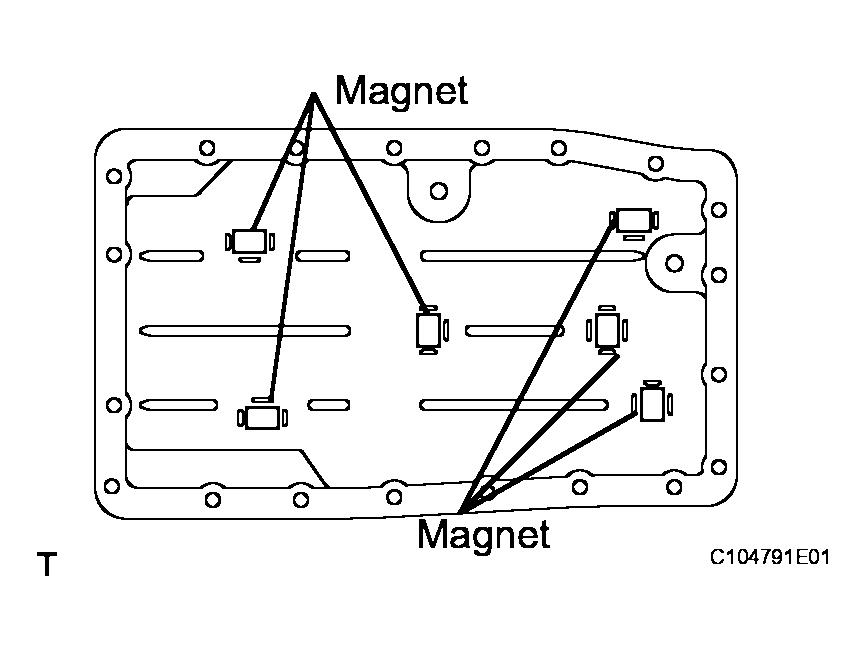

1. Install the 6 magnets in the oil pan.
   Fig 6: Identifying Magnets In Oil Pan

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new gasket and the oil pan with the 20 bolts to the transmission case.

   Torque: 4.4 N*m (45 kgf*cm, 39 in.*lbf)

(See  1 )

Fig 7: Identifying Oil Pan Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(See  1 )

(See INITIALIZATION )
