Speed Sensor: Removal

  1. REMOVE TRANSMISSION REVOLUTION SENSOR (NT SENSOR)
    1. Disconnect the transmission revolution sensor connector.
    2. Remove the bolt and transmission revolution sensor.
    3. Remove the O-ring from the transmission revolution sensor.

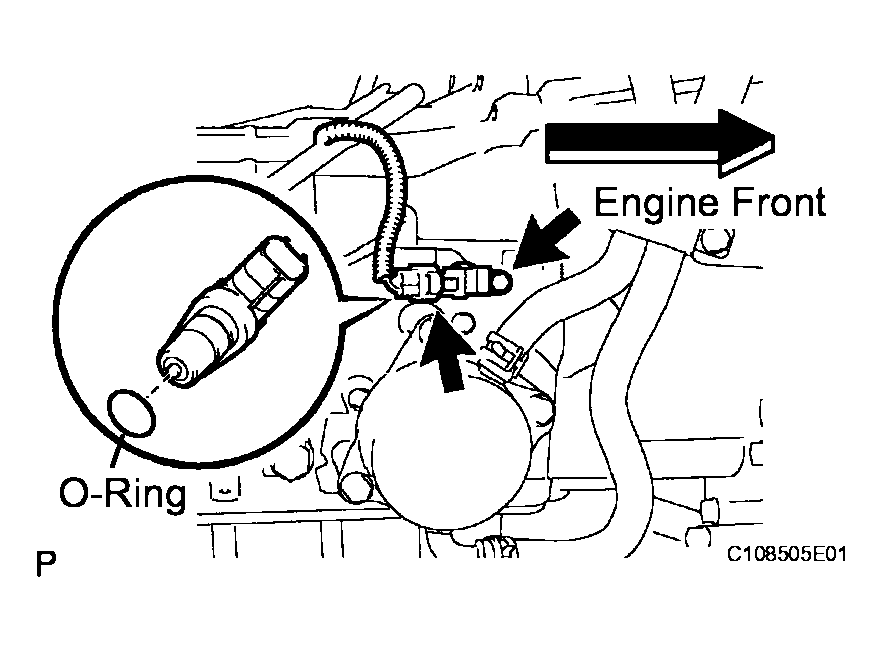

      Fig 1: Identifying Transmission Revolution Sensor (NT Sensor)
      G04019271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2 SENSOR)
    1. Disconnect the transmission revolution sensor connector.
    2. Remove the bolt and transmission revolution sensor.
    3. Remove the O-ring from the transmission revolution sensor.

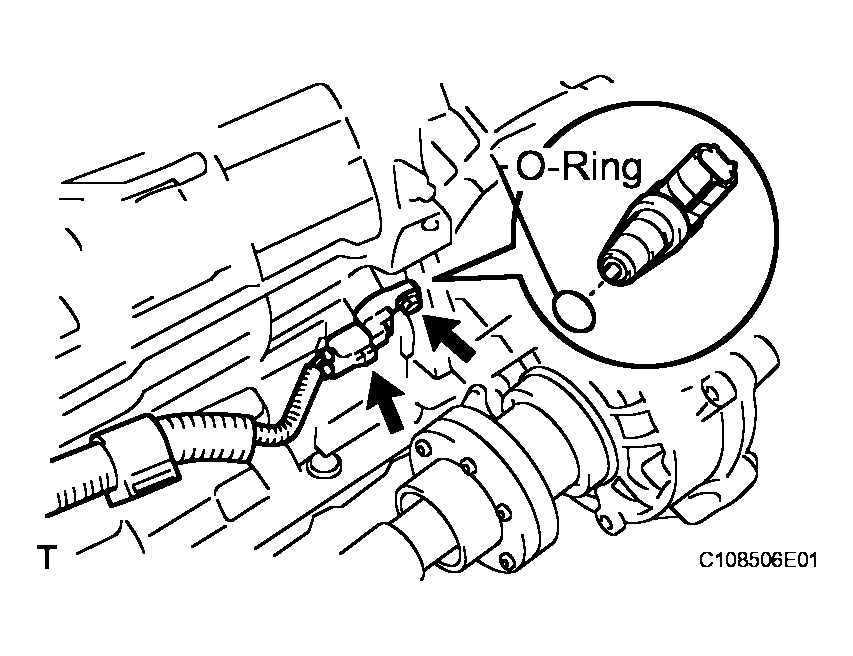

      Fig 2: Identifying Transmission Revolution Sensor (SP2 Sensor)
      G04019272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
