Home >> Lexus >> 2006 >> GS 300 AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission (A760H) >> Park / Neutral Position Switch >> Components

Park / Neutral Position Switch: Components

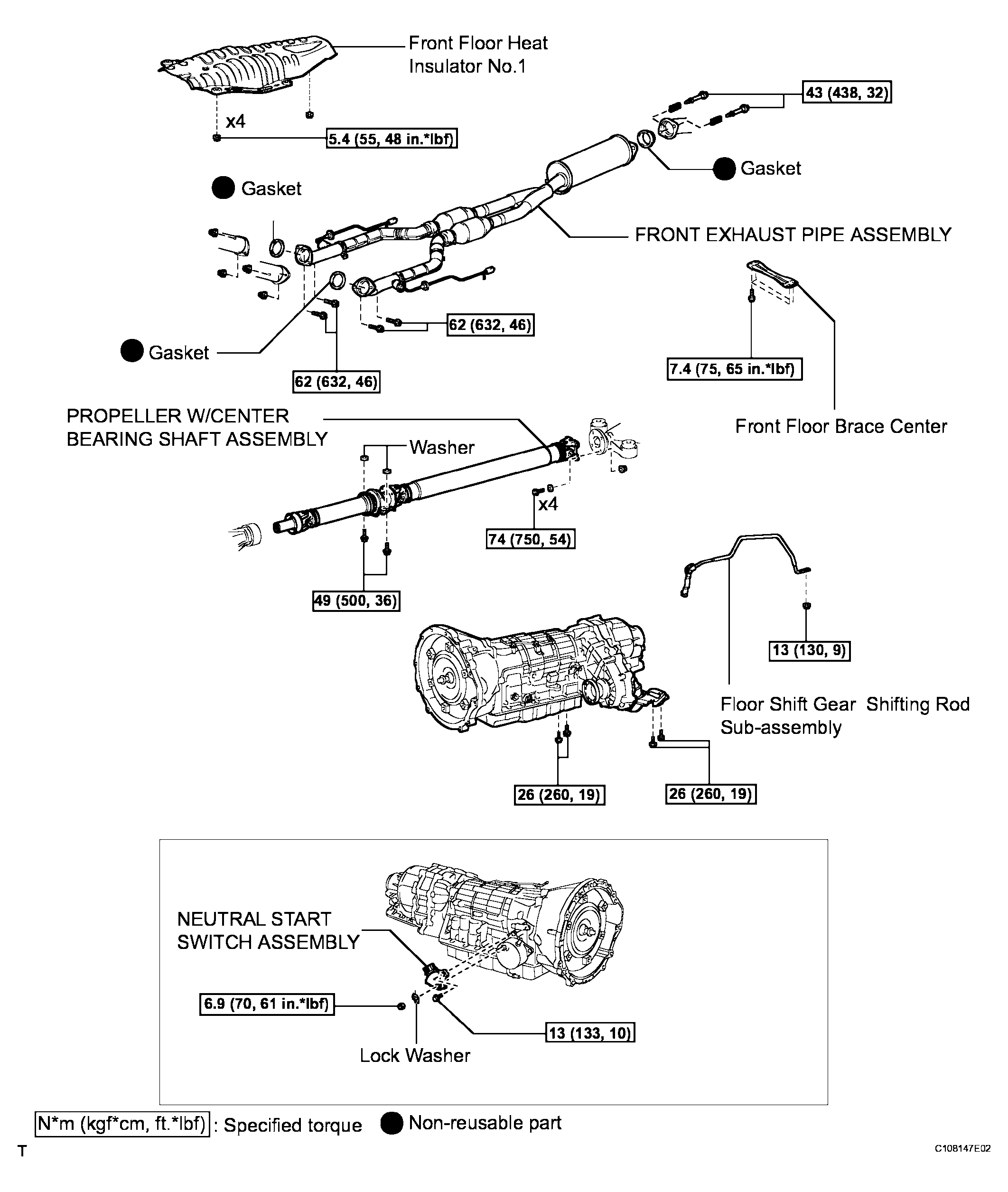

Fig 1: Park / Neutral Position Switch Replacement Components With Torque Specifications

G04019291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
