Floor Shift Assembly: Installation

  1. INSTALL FLOOR SHIFT ASSEMBLY
    1. Install the floor shift assembly with the 4 bolts.

      Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

    2. Connect the connector to the floor shift assembly.

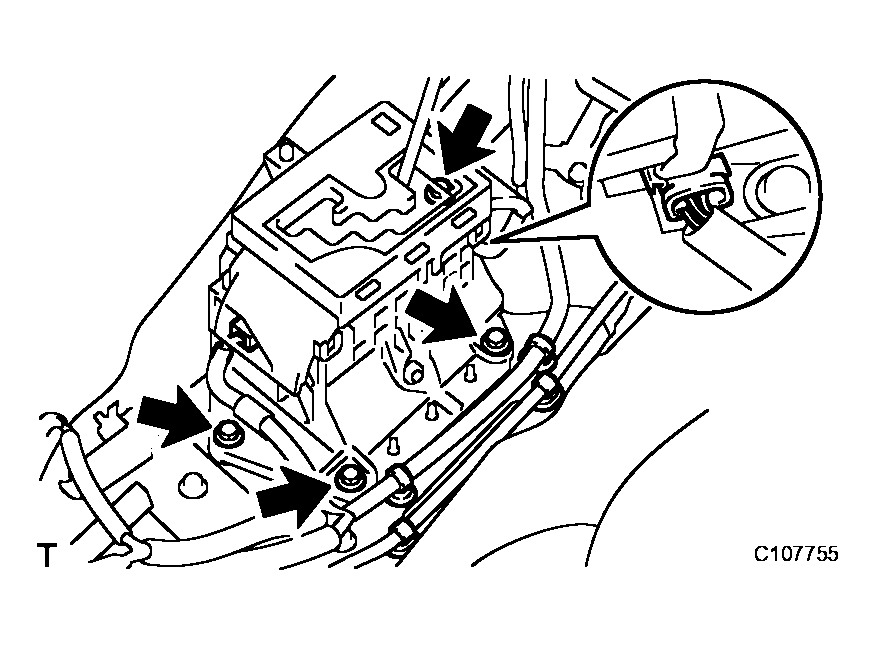

      Fig 1: Identifying Floor Shift Assembly
      G04019348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUBASSEMBLY
    1. Install the floor shift gear shifting rod sub-assembly with the nut.

      Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

  3. ADJUST SHIFT LEVER POSITION (see   1  )
  4. INSPECT SHIFT LEVER POSITION (see   1  )
  5. INSTALL FRONT FLOOR HEAT INSULATOR NO.1 (See  INSTALLATION  )
  6. INSTALL FRONT EXHAUST PIPE ASSEMBLY

    (See INSTALLATION )

  7. INSTALL CONSOLE BOX DUCT NO.2 (See  INSTALLATION  )
  8. INSTALL CONSOLE BOX (See  INSTALLATION  )
  9. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See  INSTALLATION  )
  10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH (See  INSTALLATION  )
  11. INSTALL INSTRUMENT PANEL FINISH PANEL END RH (See  INSTALLATION  )
  12. REMOVE CONSOLE UPPER PANEL ASSEMBLY (See  INSTALLATION  )
  13. INSTALL FRONT CONSOLE UPPER PANEL GARNISH (See  INSTALLATION  )
  14. INSTALL ENGINE UNDER COVER NO.1
  15. CONNECT BATTERY NEGATIVE TERMINAL
  16. PERFORM INITIALIZATION

    (See INITIALIZATION )

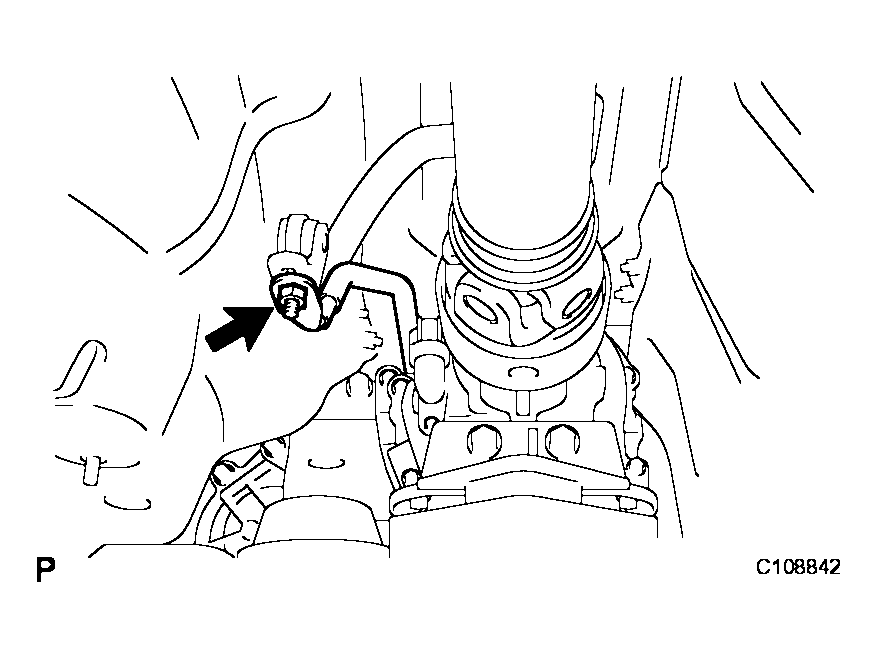

    Fig 2: Identifying Floor Shift Gear Shifting Rod Subassembly
    G04019349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
