Floor Shift Assembly: Inspection

  1. INSPECT TRANSMISSION CONTROL SWITCH
    1. Connect the park/neutral position switch connector.

      Standard resistance

      TRANSMISSION CONTROL SWITCH RESISTANCE

      Shift Position Tester Connection Specified Condition
      S, "+" and "-" 3 - 7 Below 1 Ω
      Except S, "+" and "-" 10 kΩ or higher
    2. Disconnect the transmission control switch connector of shift lock control unit assembly.
    3. Measure resistance according to the value(s) in the table below when the shift lever is moved to each position.

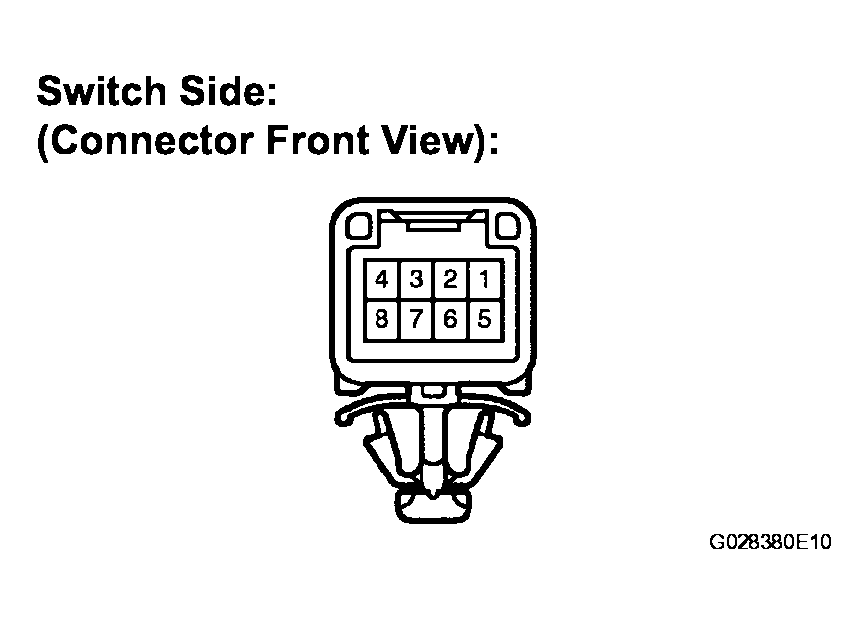

      Fig 1: Identifying Terminals Of Transmission Control Switch Connector
      G04019333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
