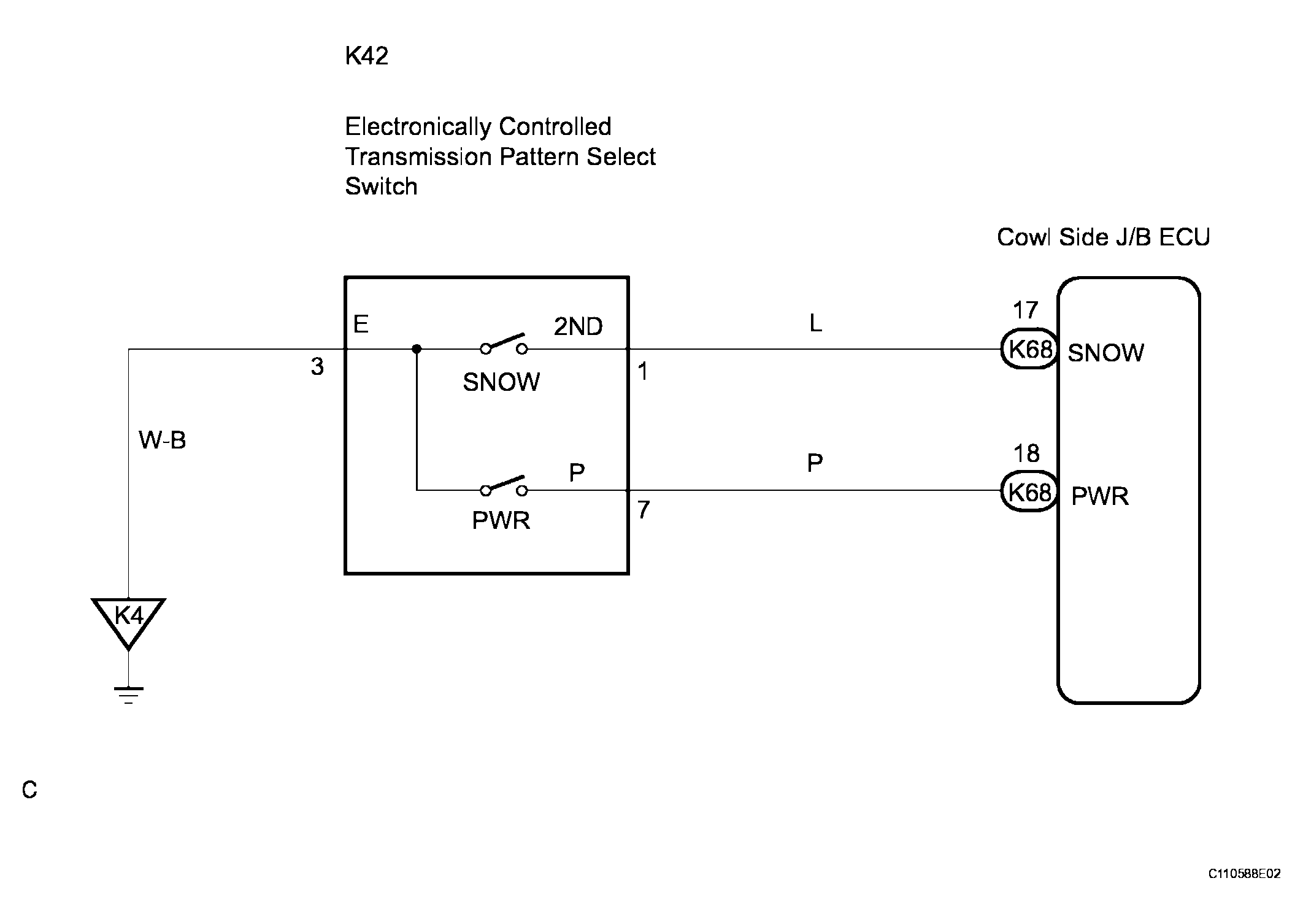

Pattern Select Switch Power Mode Circuit: Wiring Diagram

1. Disconnect the connector of pattern select switch.
2. Measure the resistance according to the value(s) in the table below.

   Resistance

   PATTERN SELECT SWITCH ASSEMBLY - BODY GROUND RESISTANCE



   Tester Connection	Specified Condition
   3 - Body ground	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

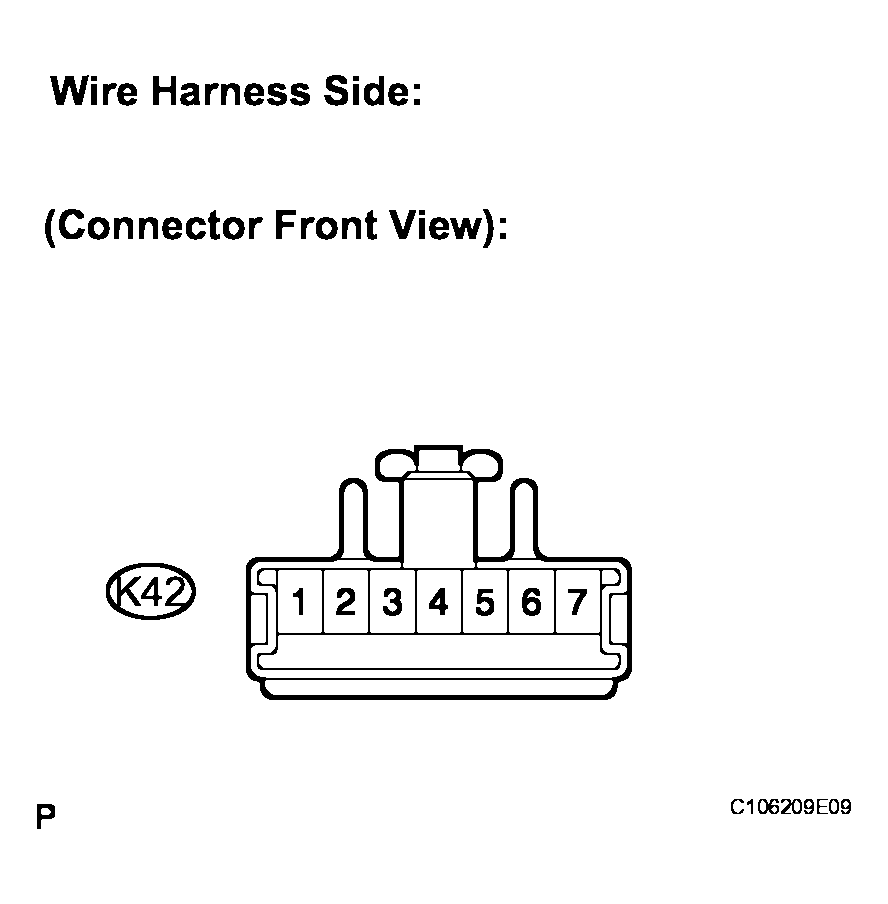

Fig 2: Identifying Terminals Of Pattern Select Switch Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to next step

1. Measure the resistance according to the value(s) in the table below.

   Resistance

   PATTERN SELECT SWITCH ASSEMBLY RESISTANCE



   Switch Condition	Tester Connection	Specified Condition
   Pattern select switch (PWR)	3 - 7	Below 1 Ω
   Pattern select switch (NORM)		10 kΩ or higher

NG : REPLACE PATTERN SELECT SWITCH ASSEMBLY

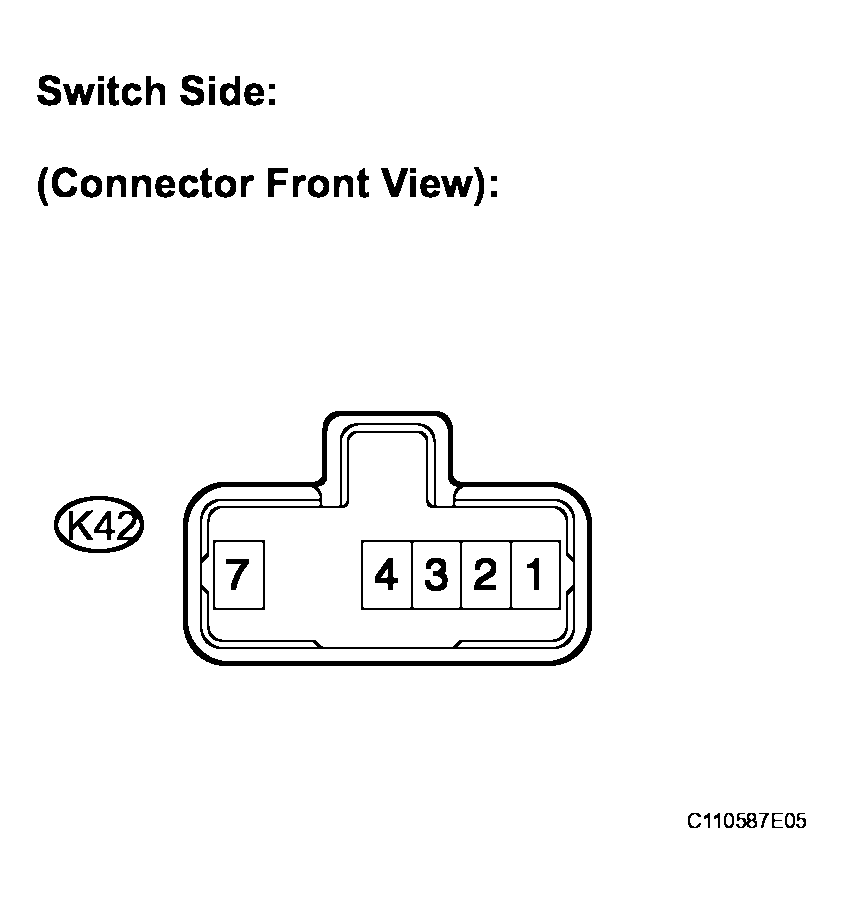

Fig 3: Identifying Terminals Of Pattern Select Switch Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to next step

1. Connect the connector of pattern select switch.
2. Disconnect the cowl side junction block (multiplex network body ECU) connector.
3. Measure the resistance between terminal PWR of the cowl side junction block (multiplex network body ECU) and body ground.

   Resistance

   PATTERN SELECT SWITCH ASSEMBLY - MULTIPLEX NETWORK BODY ECU RESISTANCE



   Switch Condition	Tester Connection	Specified Condition
   Pattern select switch (PWR)	K68 - 18 (PWR) - Body ground	Below 1 Ω
   Pattern select switch (NORM)		10 kΩ or higher

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

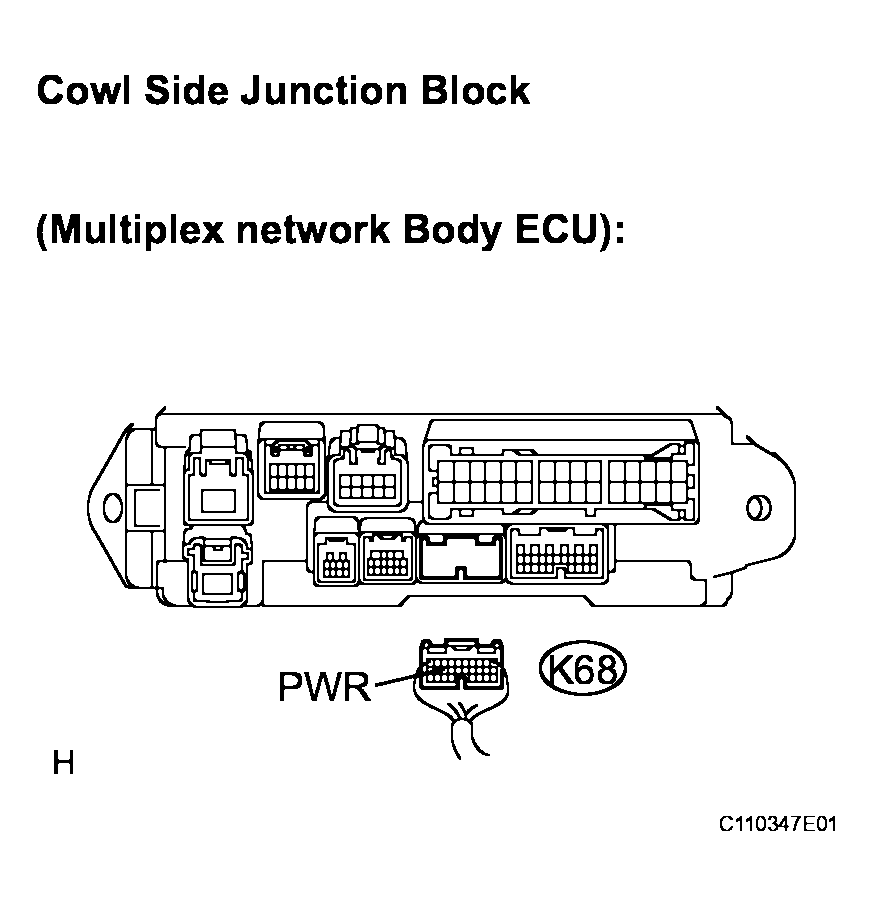

Fig 4: Identifying Cowl Side Junction Block (Multiplex Network Body ECU) Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
