Home >> Lexus >> 2006 >> GS 300 AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission (A760H) >> Automatic Transmission Assembly >> Components

Automatic Transmission Assembly: Components

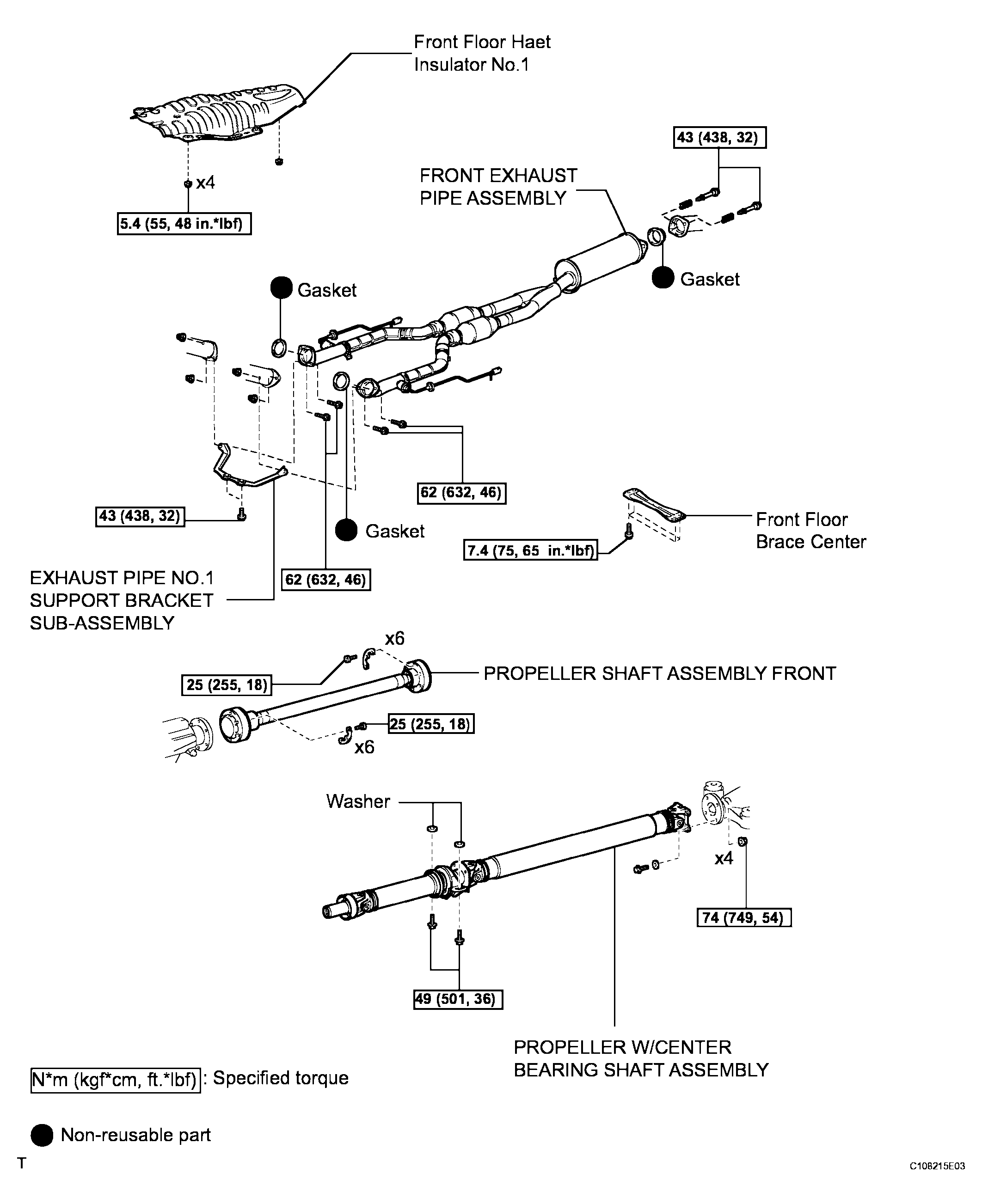

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications (1 Of 2)
G04019350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

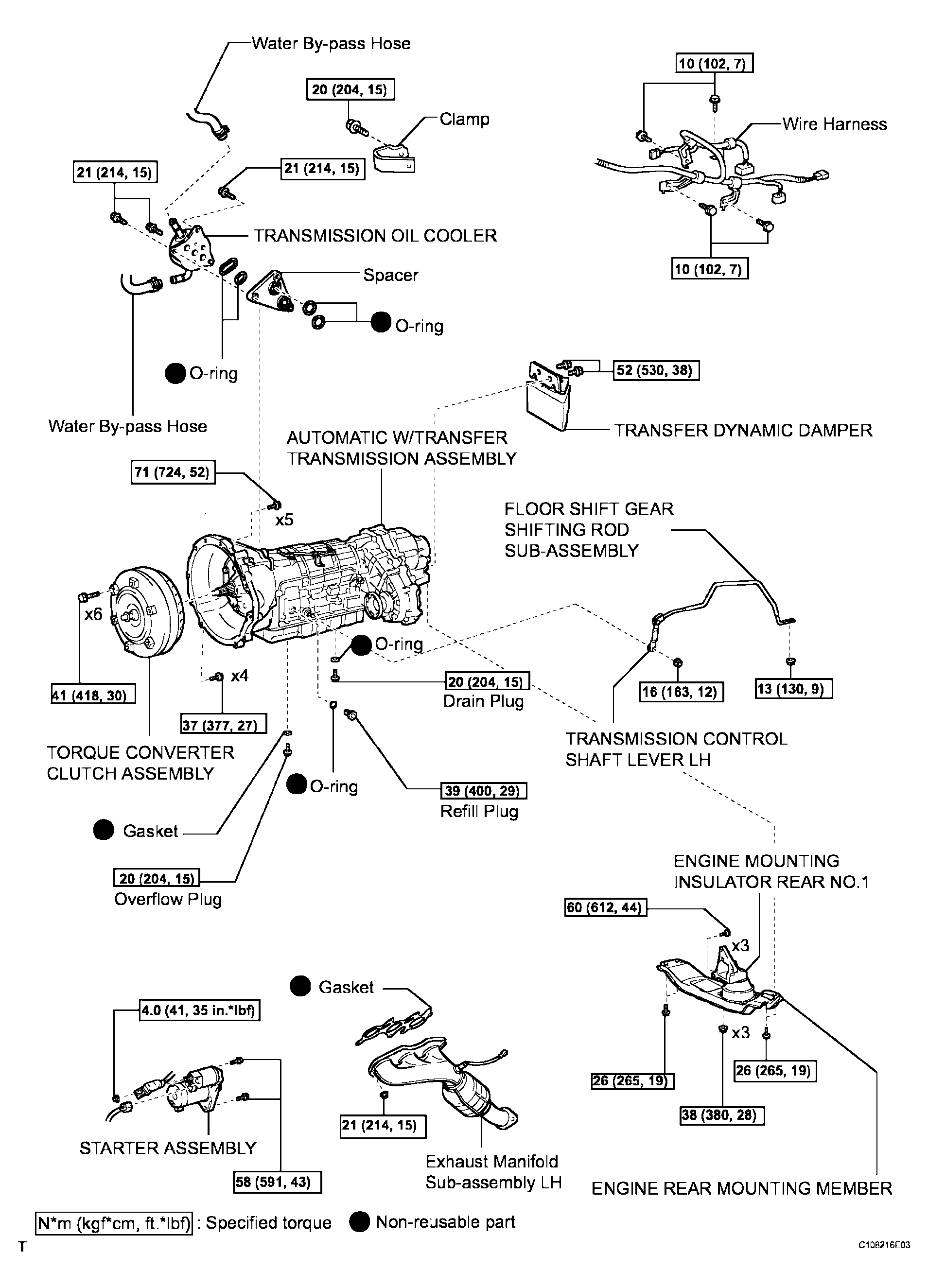

Fig 2: Automatic Transmission Assembly Replacement Components With Torque Specifications (2 Of 2)
G04019351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
