Seat Belt Control Ecu: Installation

INSTALL SEAT BELT CONTROL ECU
1. Attach the claw of the ECU stay to install the junction block.
2. Install the nut.
3. Connect the connector.

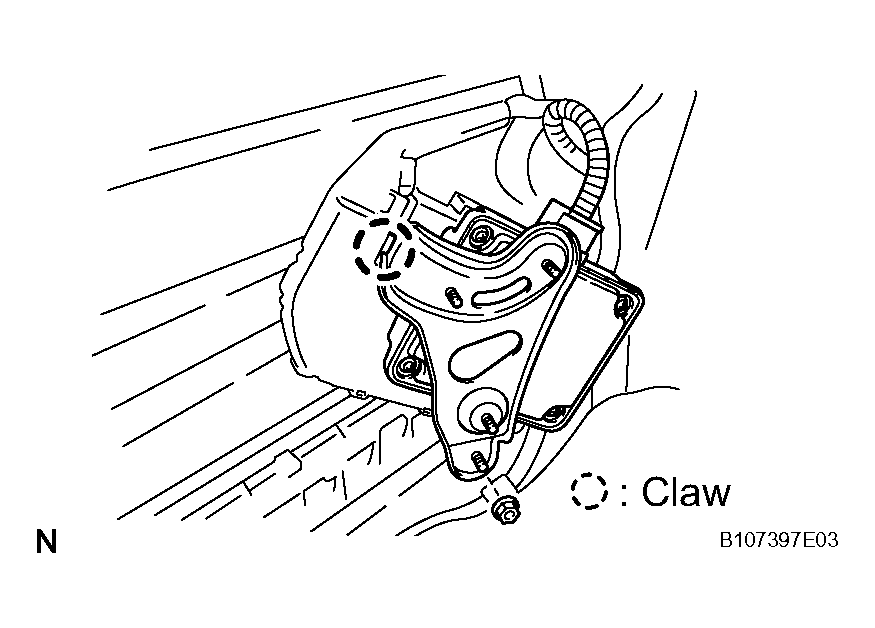

  Fig 1: Identifying Seat Belt Control ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the ECU with the 3 nuts.

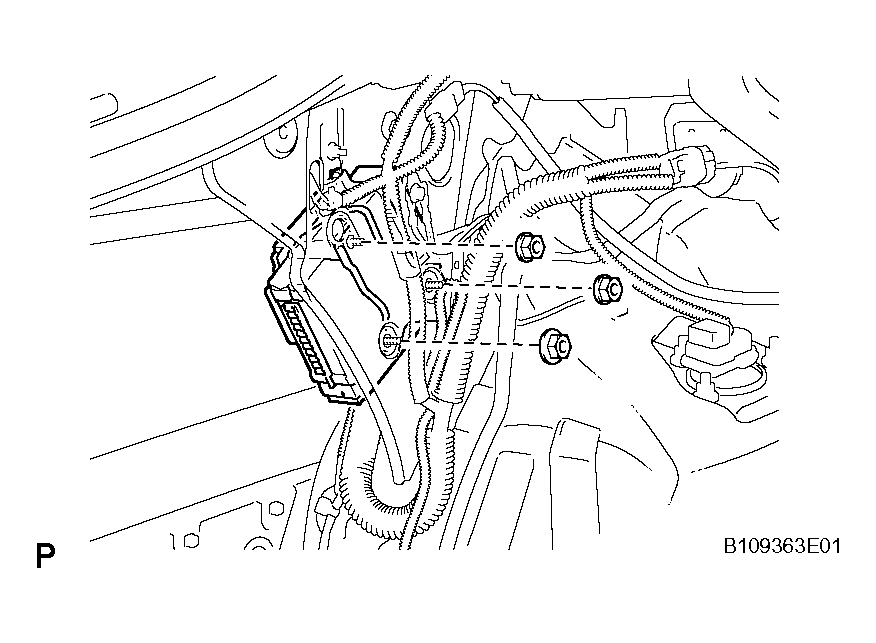

  Fig 2: Identifying ECU With 3 Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LUGGAGE COMPARTMENT TRIM SIDE COVER INNER LH (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT (See INSTALLATION )
INSTALL REAR FLOOR FINISH PLATE (See INSTALLATION )
INSTALL TOOL BOX (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT FLOOR MAT (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
PERFORM INITIALIZATION
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
1. Perform initialization (see INITIALIZATION ).
