Throttle Body: Inspection

INSPECT THROTTLE BODY

Measure the resistance between the terminals.

Standard resistance

THROTTLE BODY TERMINALS RESISTANCE SPECIFICATIONS

Tester Connection	Condition Specified	Condition
1 (M-) - 2 (M+)	20°C (68°F)	0.3 to 100 Ω
3 (E2) - 5 (VC)	20°C (68°F)	1.2 to 3.2 Ω

If the result is not as specified, replace the throttle body.

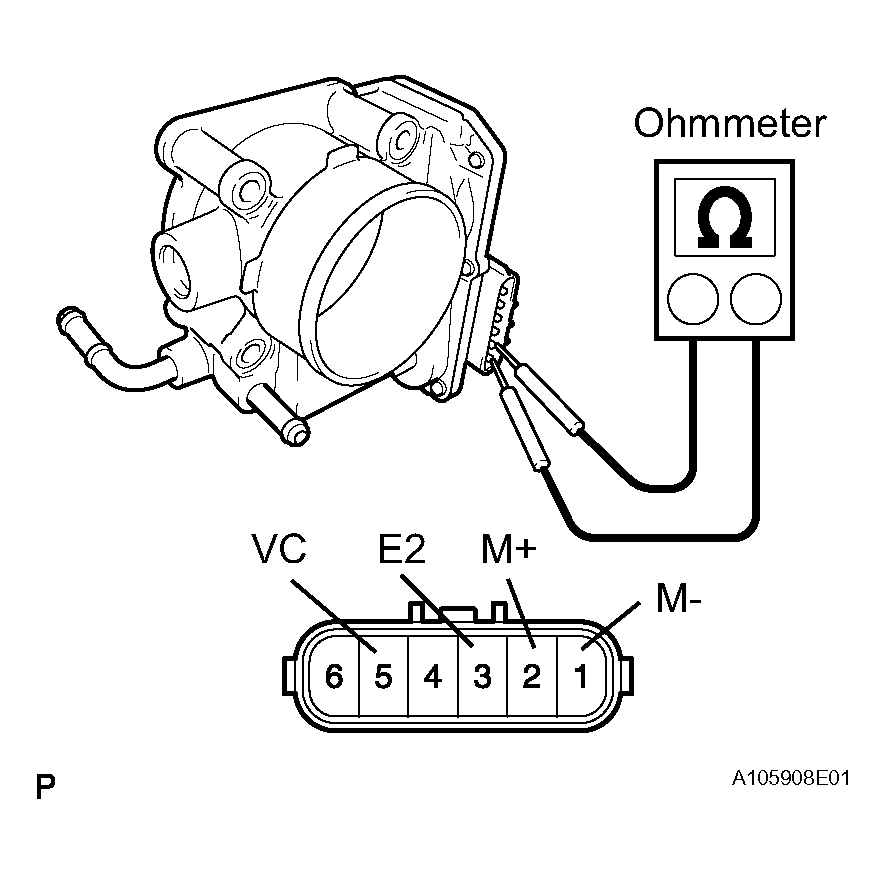

Fig 1: Measuring Resistance Between Terminals
