Integration Relay: Components

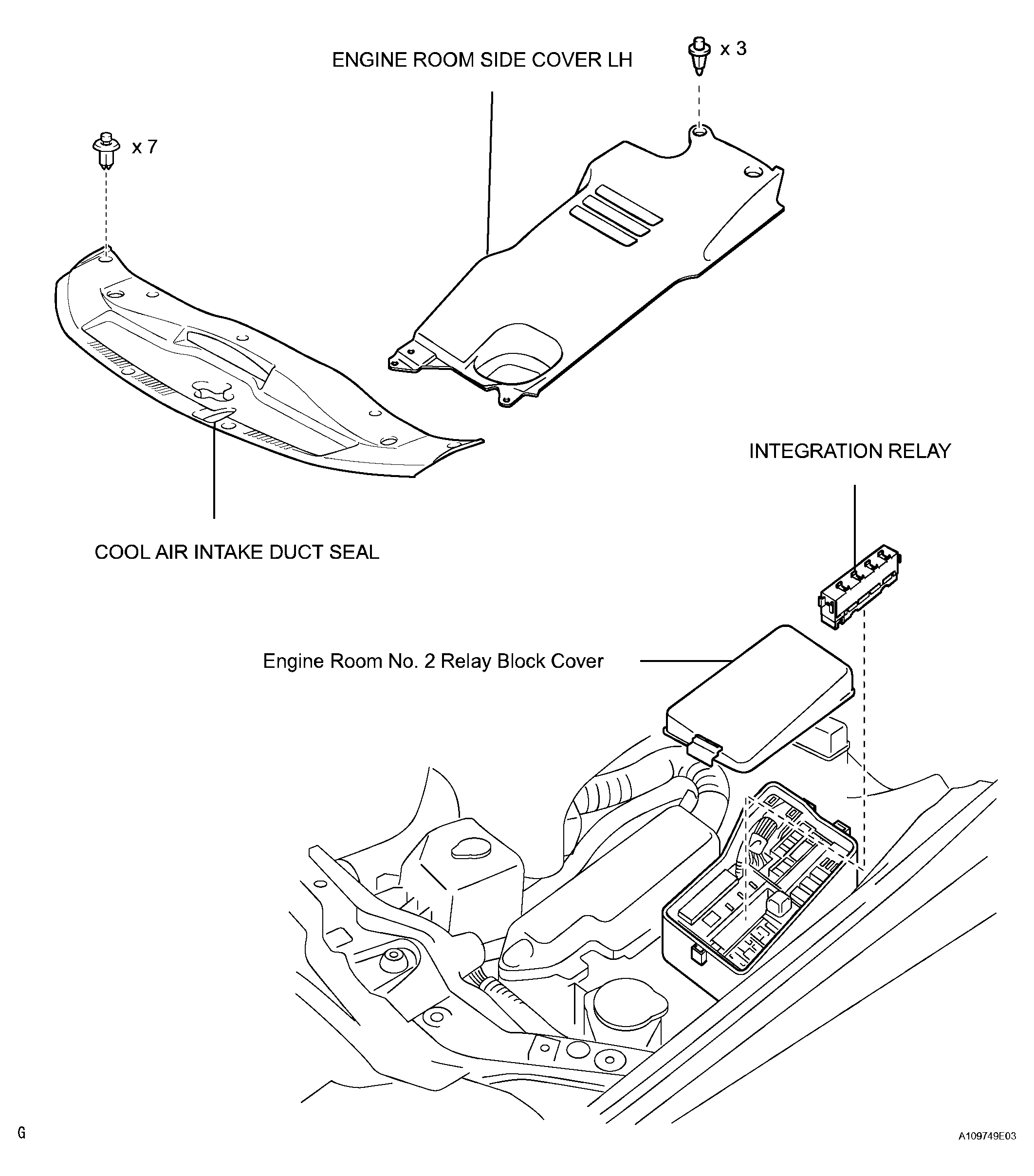

Fig 1: Identifying Integration Relay Components
G04018125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
