Ignition Coil: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE ENGINE ROOM SIDE COVER RH (See REMOVAL )
REMOVE ENGINE ROOM SIDE COVER LH (See REMOVAL )
REMOVE V-BANK COVER (See REMOVAL )
REMOVE NO. 2 VENTILATION HOSE
1. Disconnect the ventilation hose from the cylinder head.

  Fig 1: Locating Ventilation Hose To Cylinder Head Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
1. Disconnect the MAF meter connector.

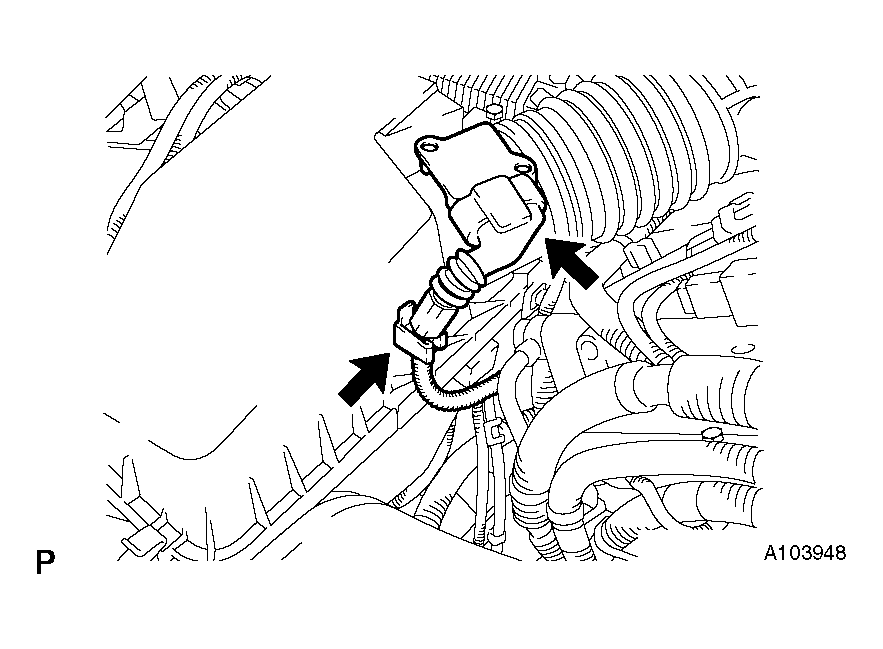

2. Disconnect the clamp from the air cleaner.

  Fig 2: Identifying Clamp From Air Cleaner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

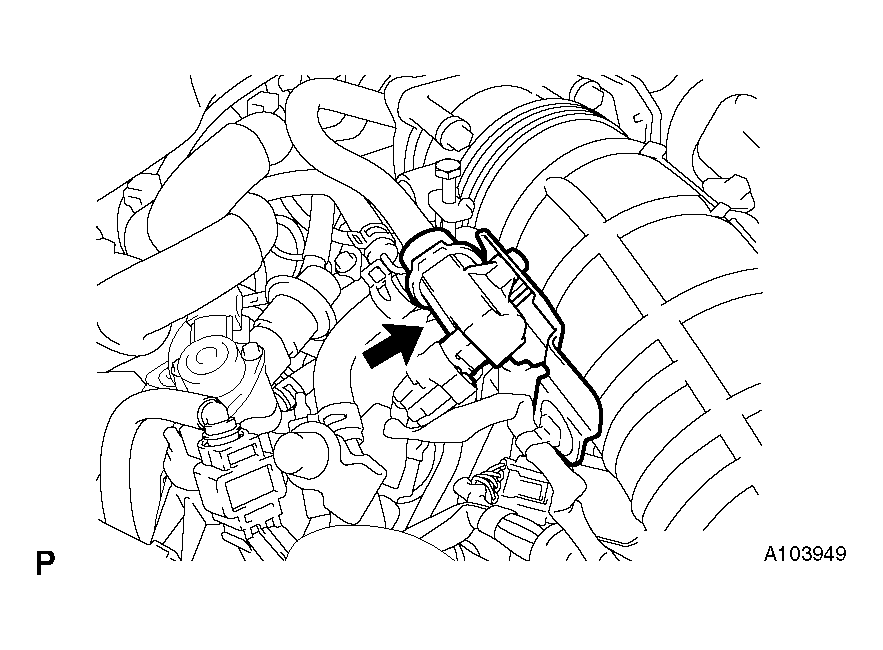

3. Disconnect the VSV for EVAP.

  Fig 3: Identifying VSV For EVAP
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

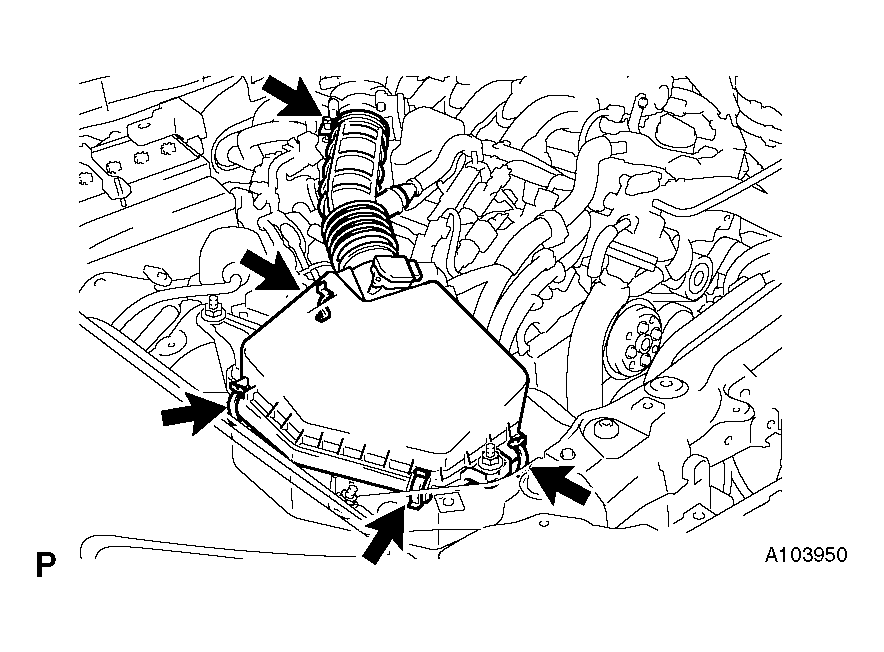

4. Disconnect the 4 clamps.
5. Remove the hose clamp and air cleaner cap with air cleaner hose.

  Fig 4: Identifying Hose Clamp And Air Cleaner Cap With Air Cleaner Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE IGNITION COIL

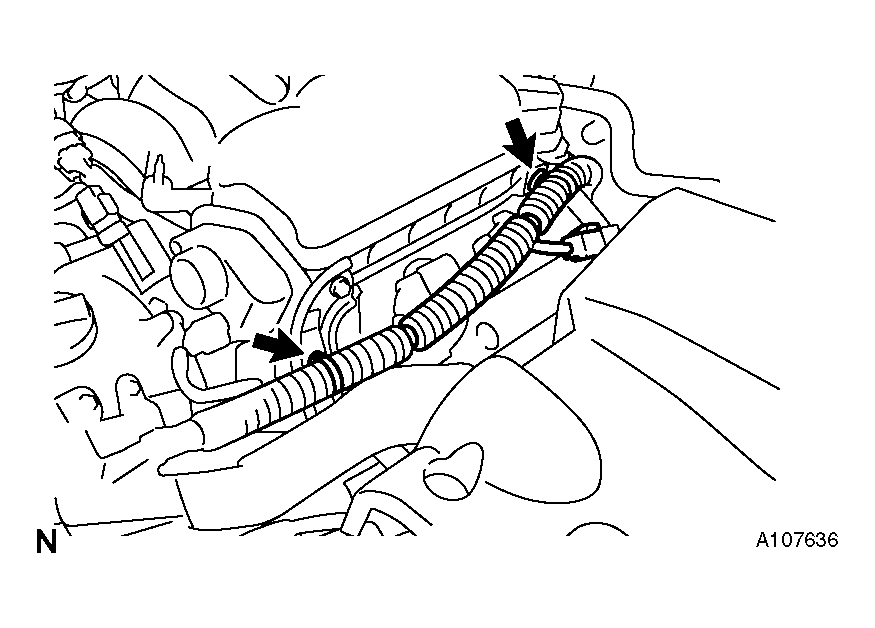

1. Disconnect the 2 wire harness clamps.

  Fig 5: Identifying Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

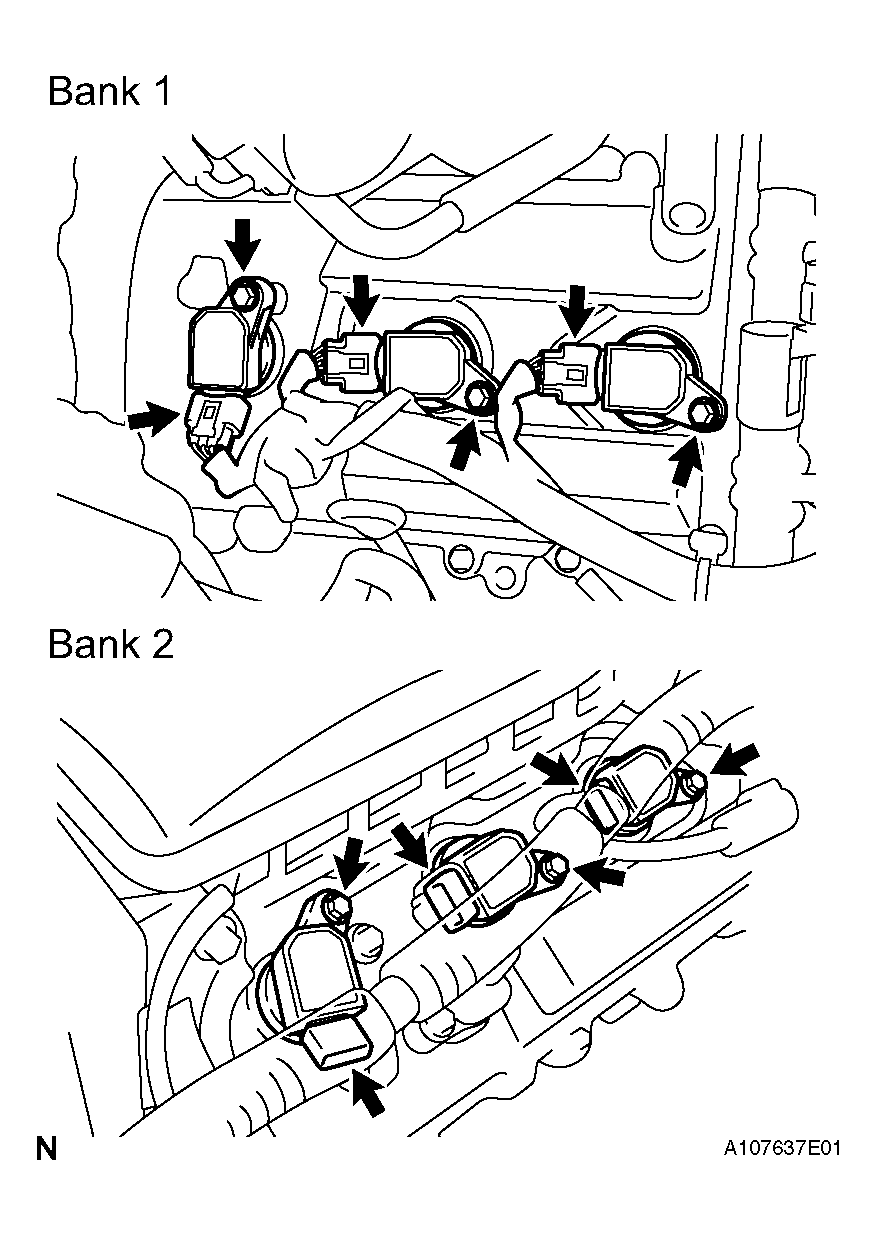

2. Disconnect the 6 ignition coil connectors.
3. Remove the 6 bolts and 6 ignition coils.

  Fig 6: Identifying Bolts And Ignition Coils
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
