Injector Driver: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE COOL AIR INTAKE DUCT SEAL (See ON-VEHICLE INSPECTION )
REMOVE AIR CLEANER INLET
1. Remove the bolt and air cleaner inlet.

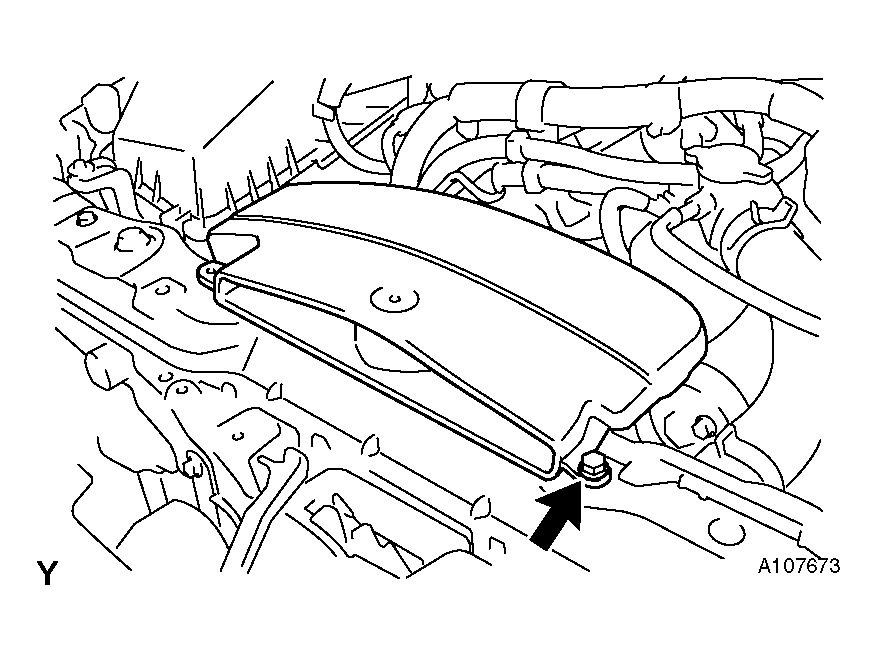

  Fig 1: Identifying Bolt And Air Cleaner Inlet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO.1 ENGINE COVER
1. Disconnect the 4 connectors.
2. Remove the 3 clips and cover.

  Fig 2: Identifying Clips And Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INJECTOR DRIVER
1. Remove the bolt, 2 nuts and injector driver.
  NOTE: Be careful not to drop or strike the injector driver.

  Fig 3: Identifying Injector Driver, Bolt And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
