Fuel Tank: Components

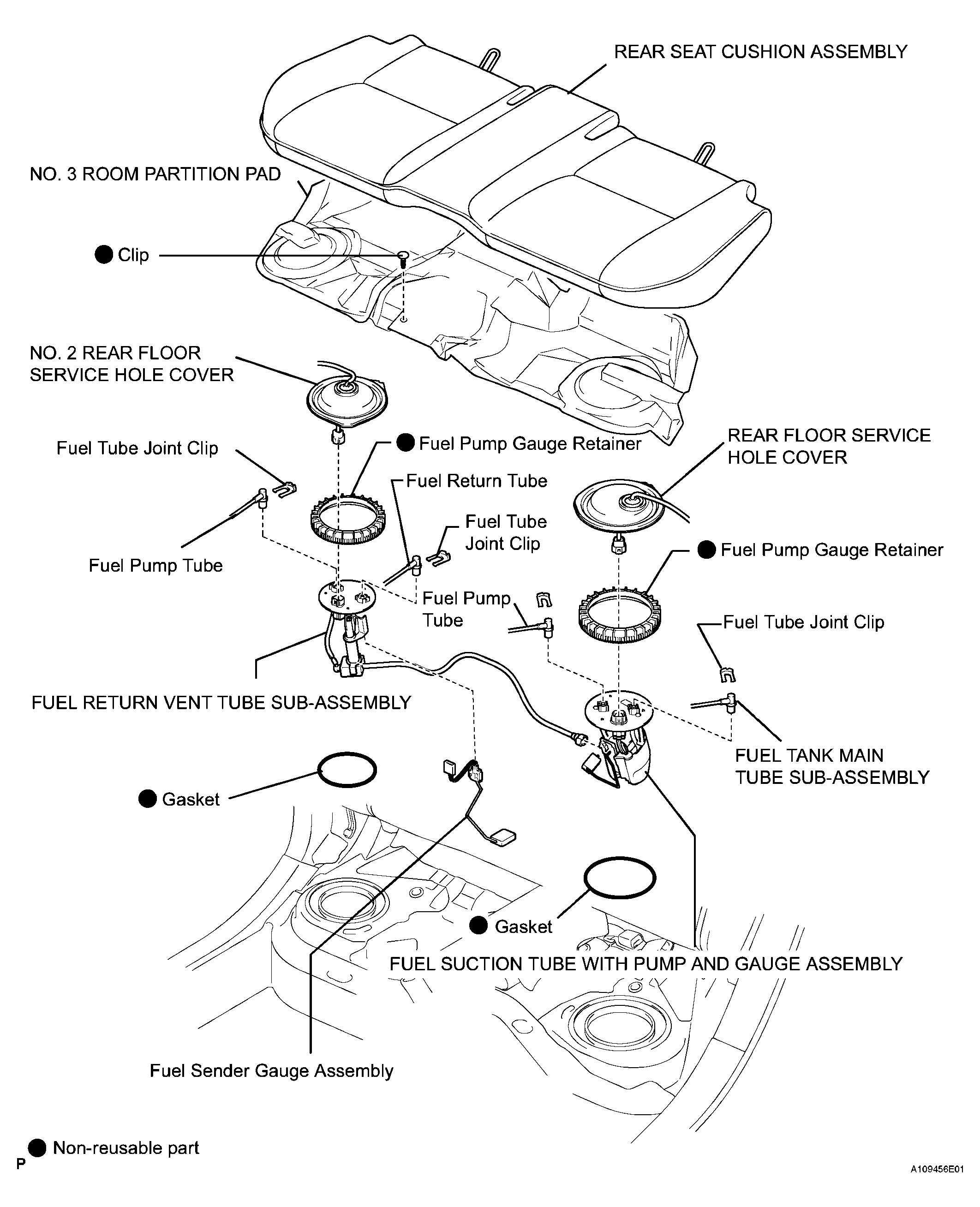

Fig 1: Identifying Fuel Tank Components Assembly (1 Of 4)
G04018725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

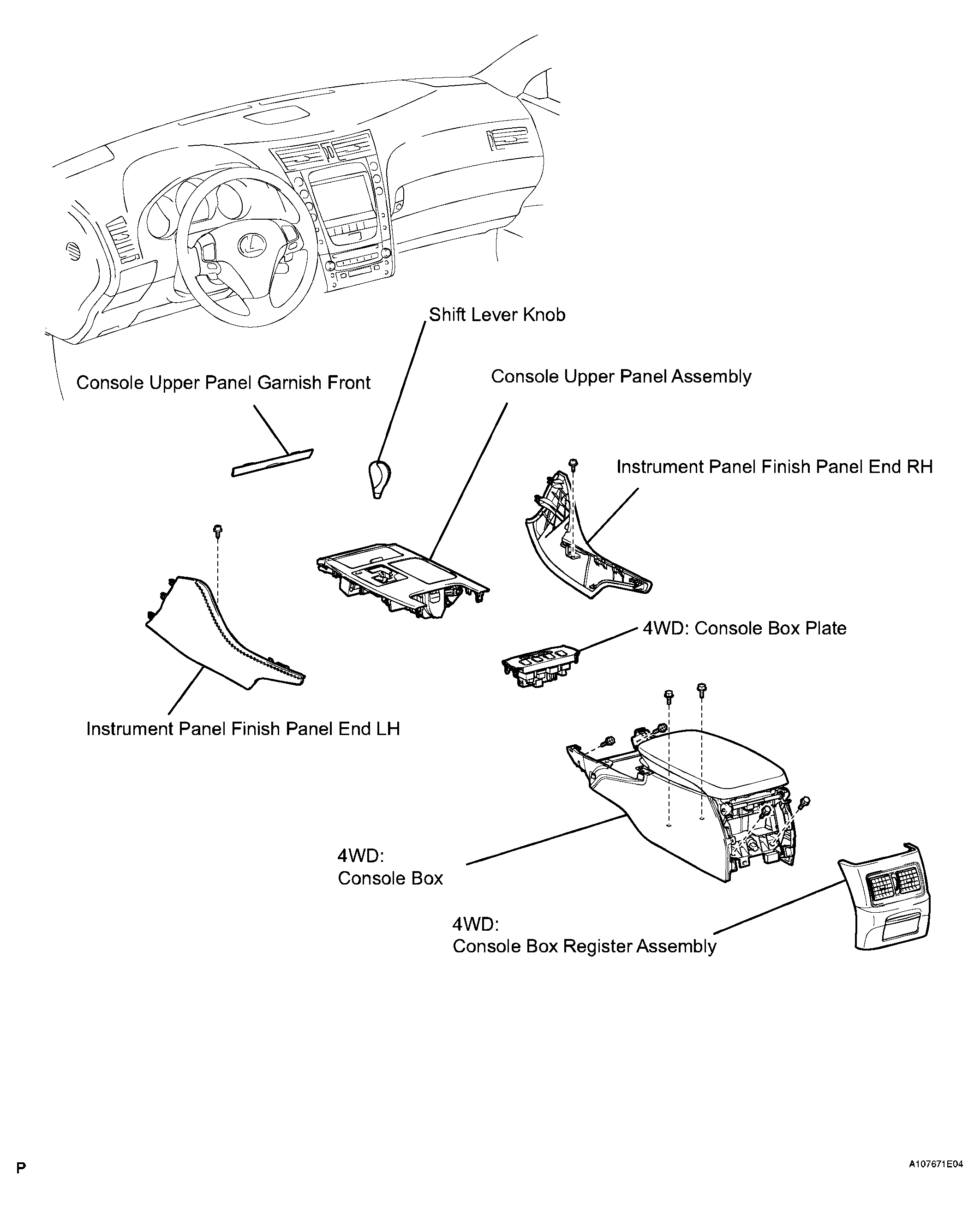

Fig 2: Identifying Fuel Tank Components Assembly (2 Of 4)
G04018726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

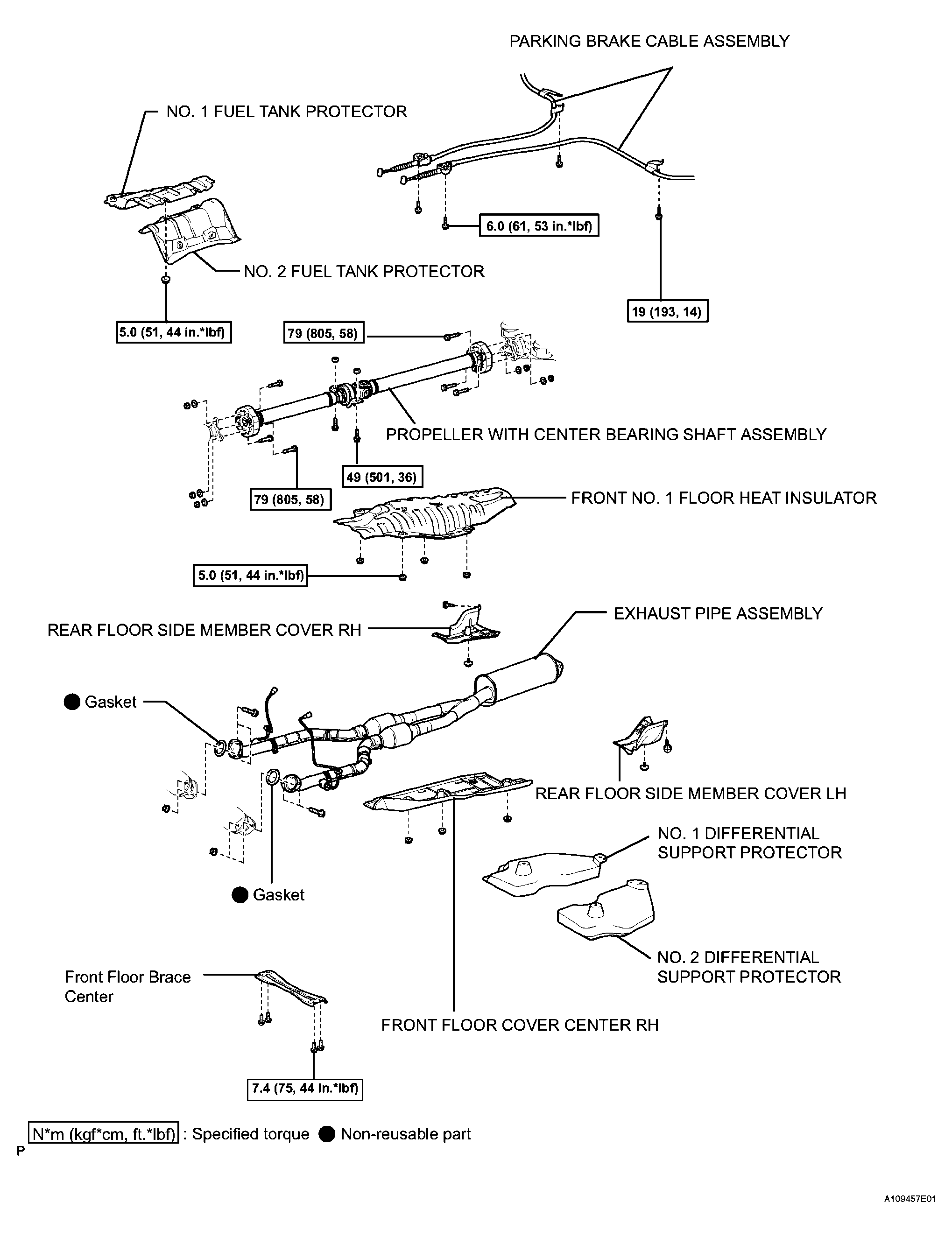

Fig 3: Fuel Tank Replacement Components Assembly With Torque Specifications (3 Of 4)
G04018727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

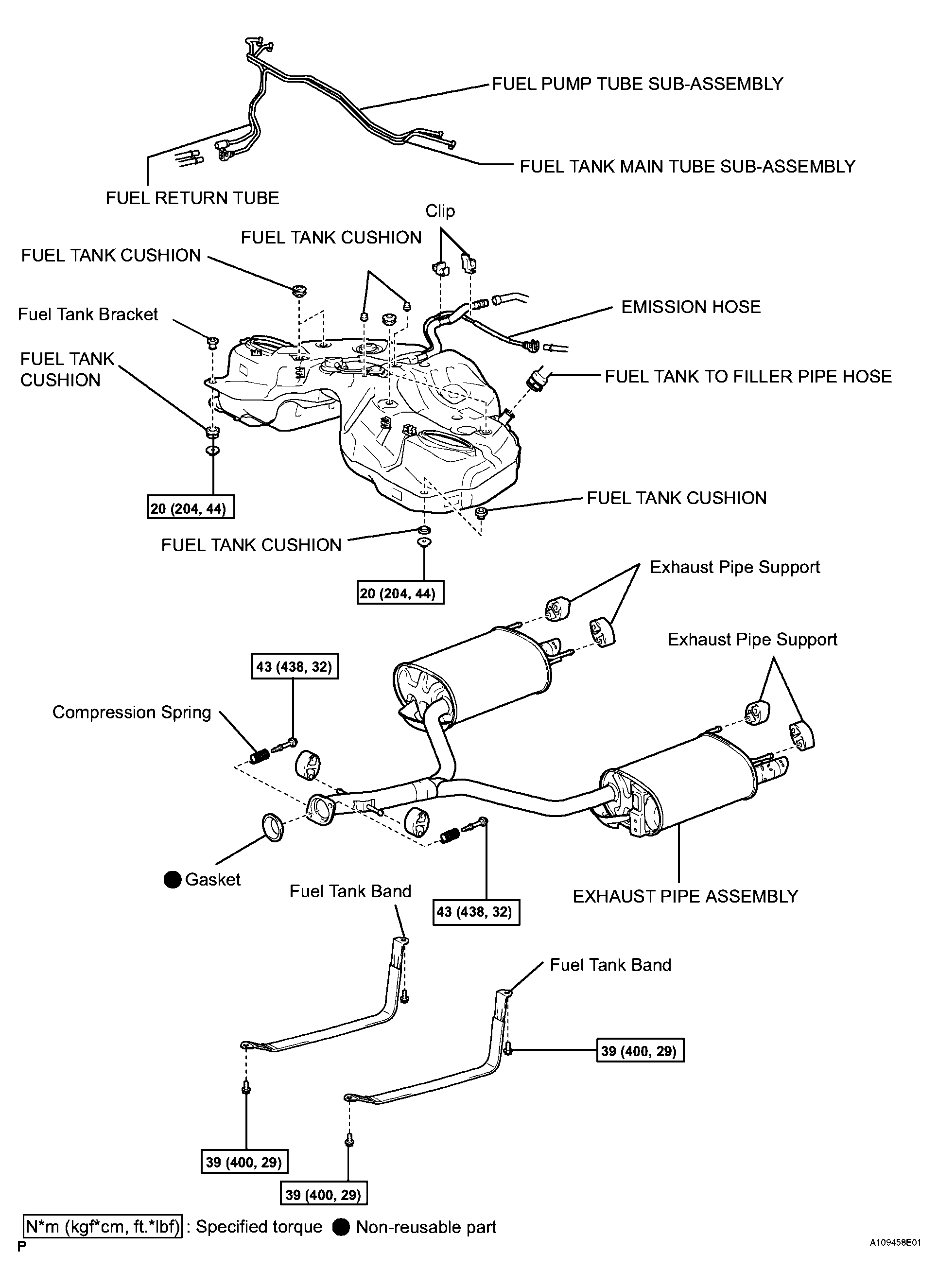

Fig 4: Fuel Tank Replacement Components Assembly With Torque Specifications (4 Of 4)
G04018728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
