Cold Start Injector: Installation

INSTALL COLD START INJECTOR
1. Install a new gasket to the intake air surge tank.
  HINT:

  Align the protrusion of the gasket on the intake air surge tank.

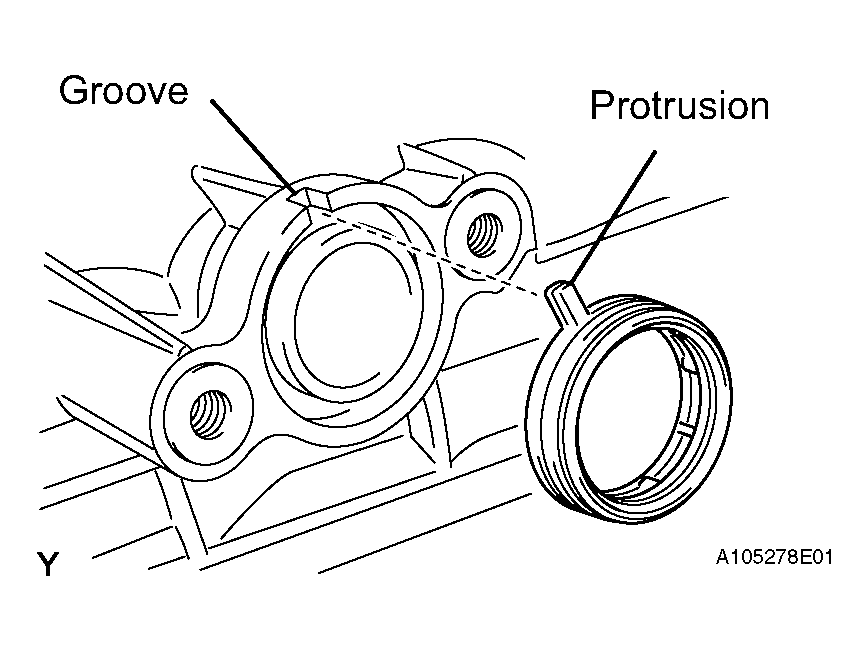

  Fig 1: Aligning Protrusion Of Gasket On Intake Air Surge Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the cold start injector with the 2 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE: Do not fold or bend the hose.
INSTALL FUEL PRESSURE PULSATION DAMPER (see INSTALLATION )
DISCONNECT FUEL MAIN TUBE ( 17 )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK FOR FUEL LEAKAGE
1. Start the engine, and check that there are no fuel leaks after performing maintenance anywhere on the system.
INSTALL V-BANK COVER (See INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

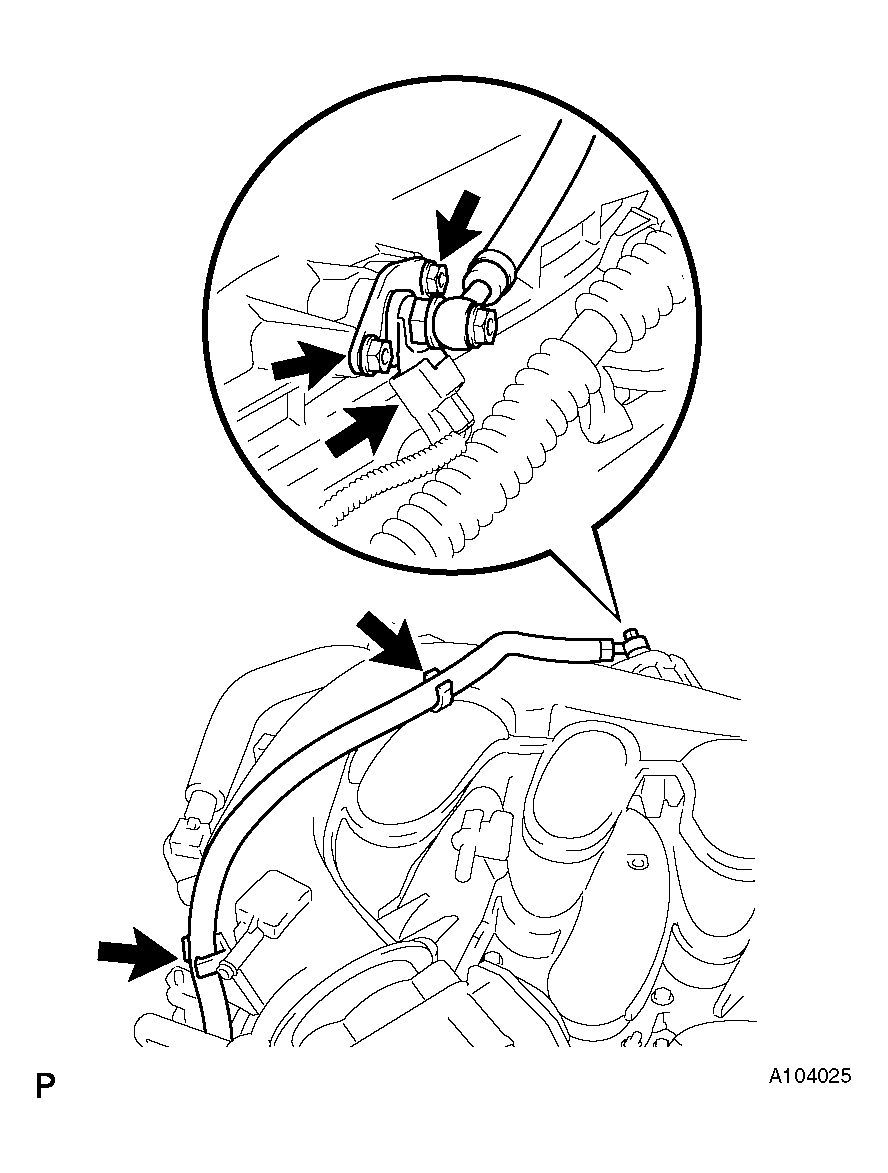

  Fig 2: Identifying Cold Start Injector With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
