Rear Console Box: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE FRONT CONSOLE UPPER PANEL GARNISH
1. Using a screwdriver, detach the claws and remove the garnish.
  HINT:

  Tape the screwdriver tip before use.

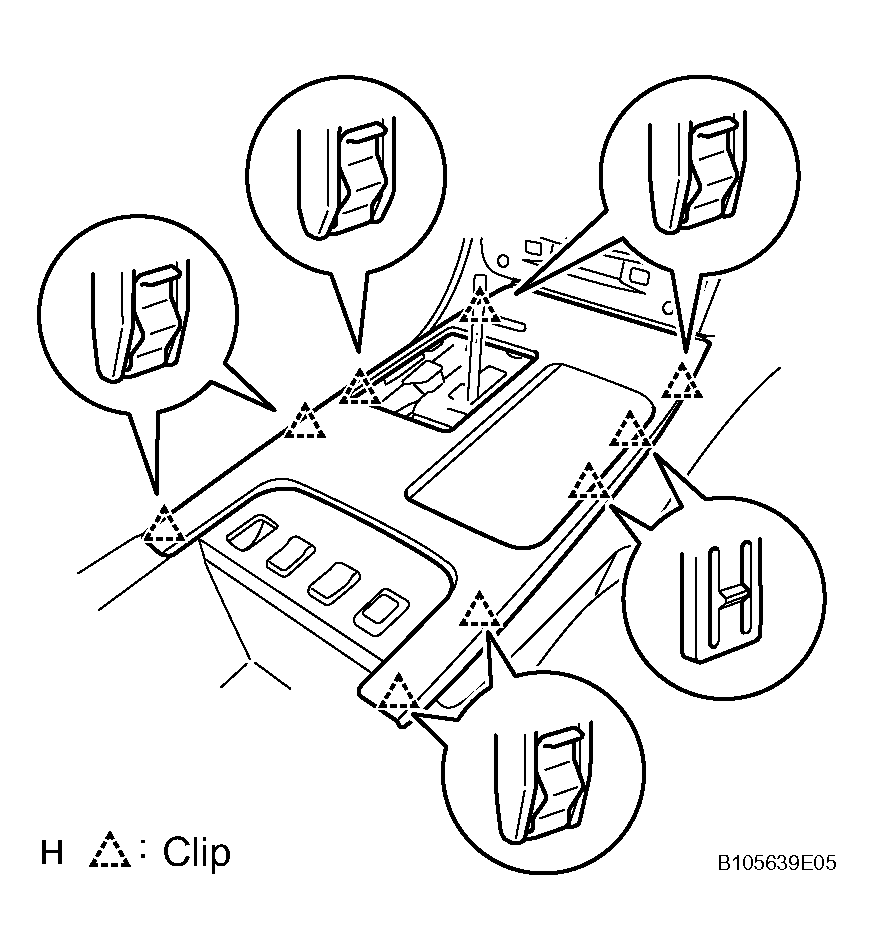

REMOVE CONSOLE UPPER PANEL ASSEMBLY
1. Twist the shift lever knob in the direction indicated by the arrow and remove it.

  Fig 1: Twisting Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, detach the 9 clips.
  HINT:

  Tape the screwdriver tip before use.
3. Remove the ash receptacle and then disconnect the connector.

  Fig 2: Identifying Ash Receptacle And Disconnect Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

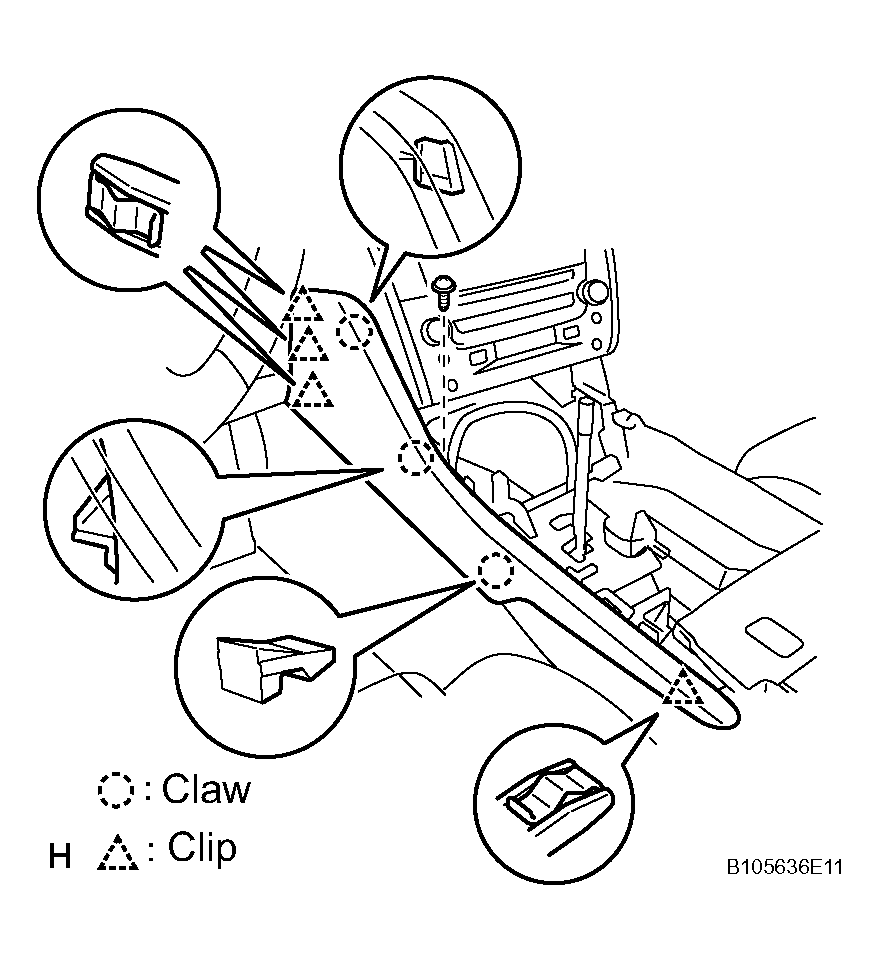

REMOVE INSTRUMENT PANEL FINISH PANEL END RH
1. Remove the screw.
2. Using a screwdriver, detach the 3 clips and 3 claws.
  HINT:

  Tape the screwdriver tip before use.
3. Remove the finish panel end.

  Fig 3: Identifying Instrument Panel Finish Panel End RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

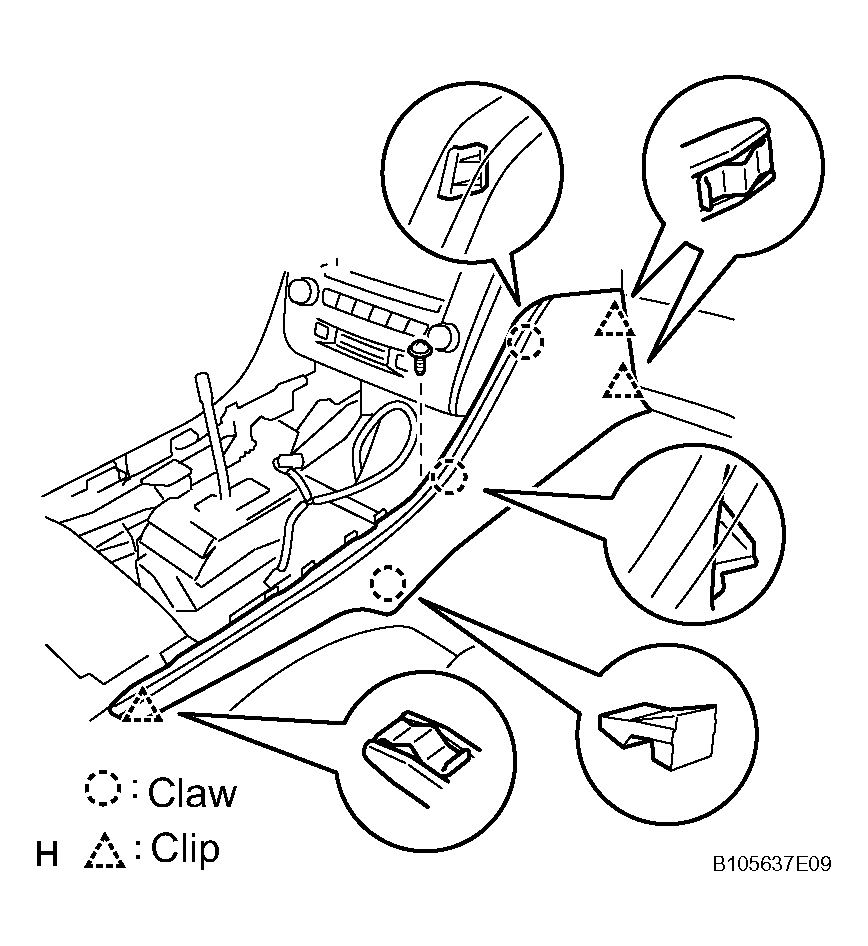

REMOVE INSTRUMENT PANEL FINISH PANEL END LH
1. Remove the screw.
2. Using a screwdriver, detach the 4 clips and 3 claws.
  HINT:

  Tape the screwdriver tip before use.
3. Remove the finish panel end.

  Fig 4: Identifying Instrument Panel Finish Panel End LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

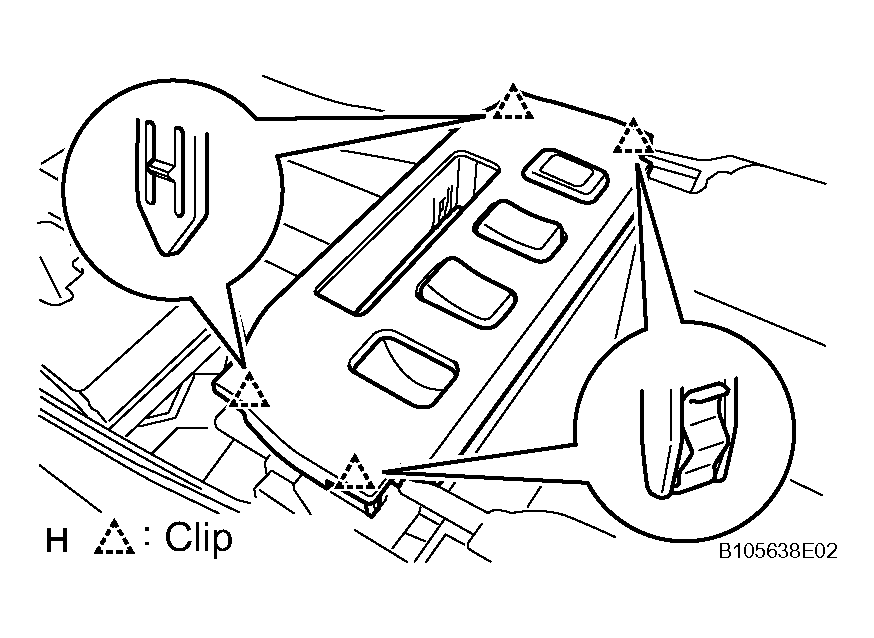

REMOVE CONSOLE BOX PLATE
1. Using a screwdriver, detach the 4 clips.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the console box plate and then disconnect the connector.

  Fig 5: Identifying Console Box Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

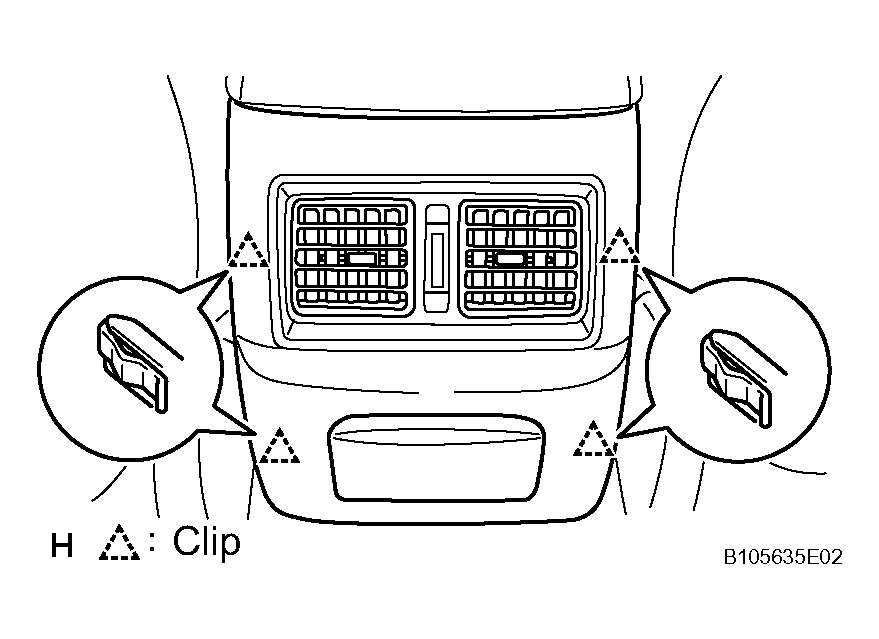

REMOVE CONSOLE BOX REGISTER ASSEMBLY
1. Using a screwdriver, detach the 4 clips and remove the register.
  HINT:

  Tape the screwdriver tip before use.

  Fig 6: Identifying Console Box Register
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE BOX
1. Remove the 4 bolts and 2 screws.
2. Remove the console box and then disconnect the connector.

  Fig 7: Locating Console Box Bolts And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
