Charging (3GR-FSE): Generator: Reassembly

INSTALL GENERATOR WITH CLUTCH PULLEY
1. Install the pulley by hand.
2. Install SST to the pulley and vise as shown in the illustration.
  SST 09820-63020

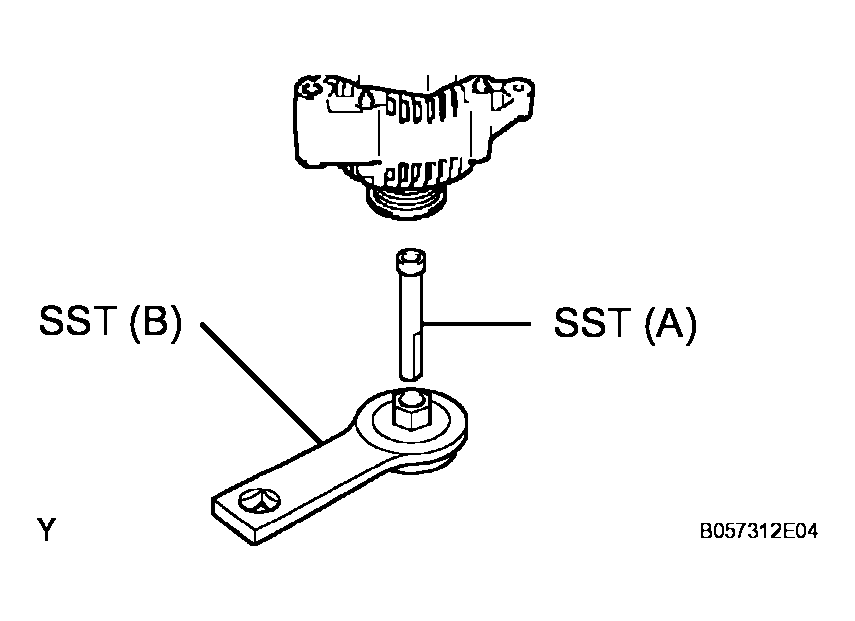

  Fig 1: Identifying SST To Pulley And Vise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Turn SST (B) counterclockwise to tighten the pulley.
  Torque: 110 N*m (1,122 kgf*cm, 81 ft.*lbf)
4. Check that the generator pulley rotates smoothly.
5. Install the generator pulley cap.

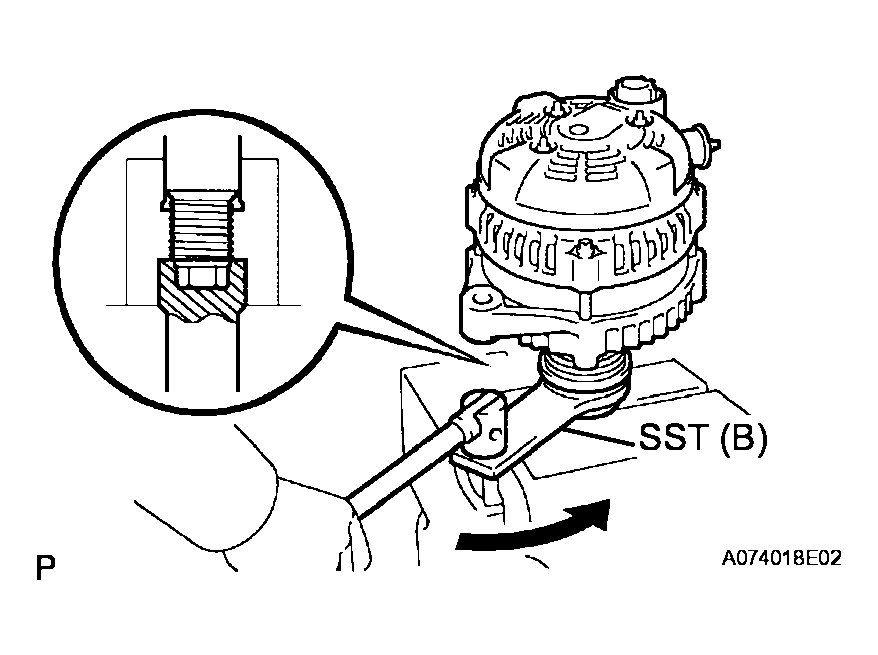

  Fig 2: Identifying Tightening Pulley Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
