Charging (3GR-FSE): Generator: Disassembly

REMOVE GENERATOR WITH CLUTCH PULLEY
1. Remove the generator pulley cap.

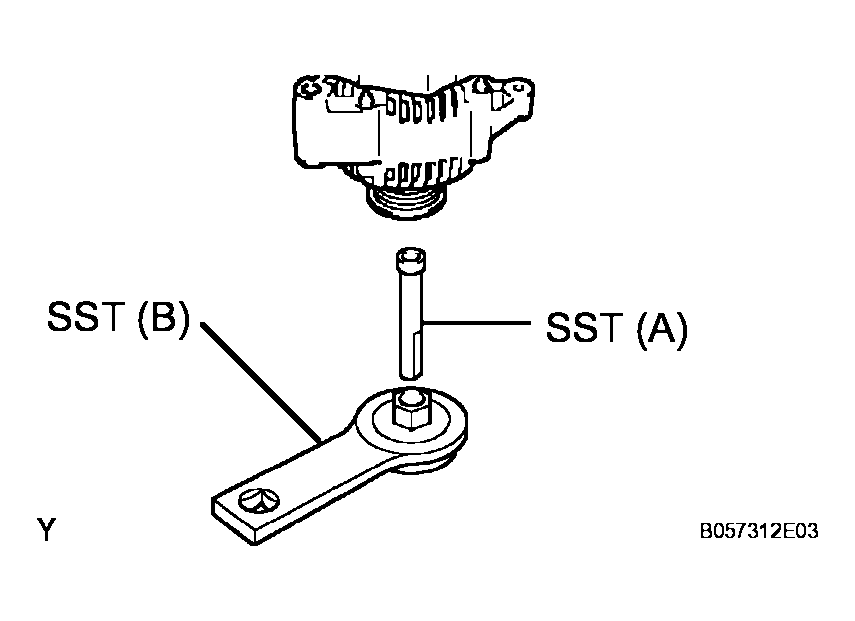

2. Install SST to the pulley and vise as shown in the illustration.
  SST 09820-63020
3. Mount SST (A) in a vise.

  Fig 1: Identifying SST To Pulley And Vise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

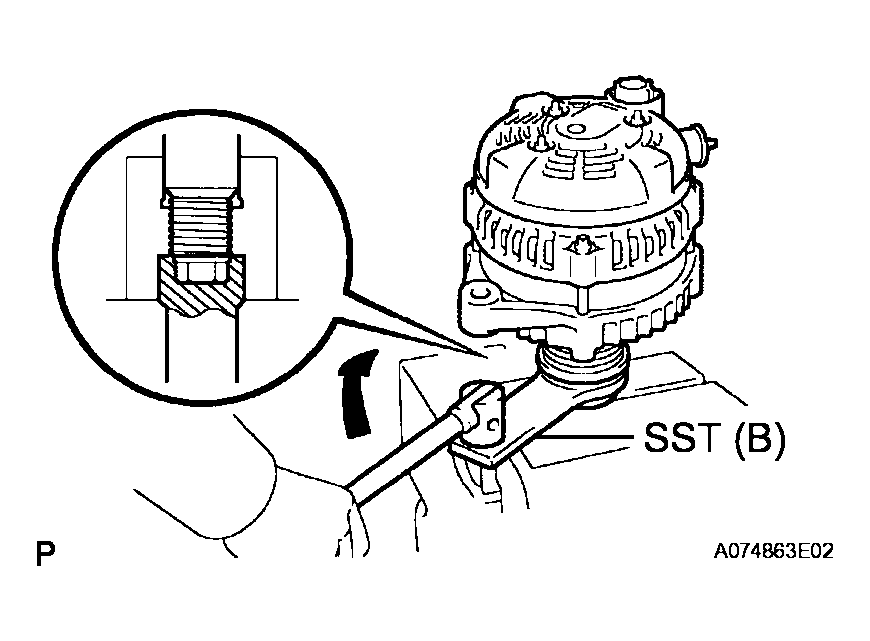

4. Turn SST (B) clockwise to loosen the pulley.
5. Remove the pulley.

  Fig 2: Loosening Pulley Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
