System Diagram

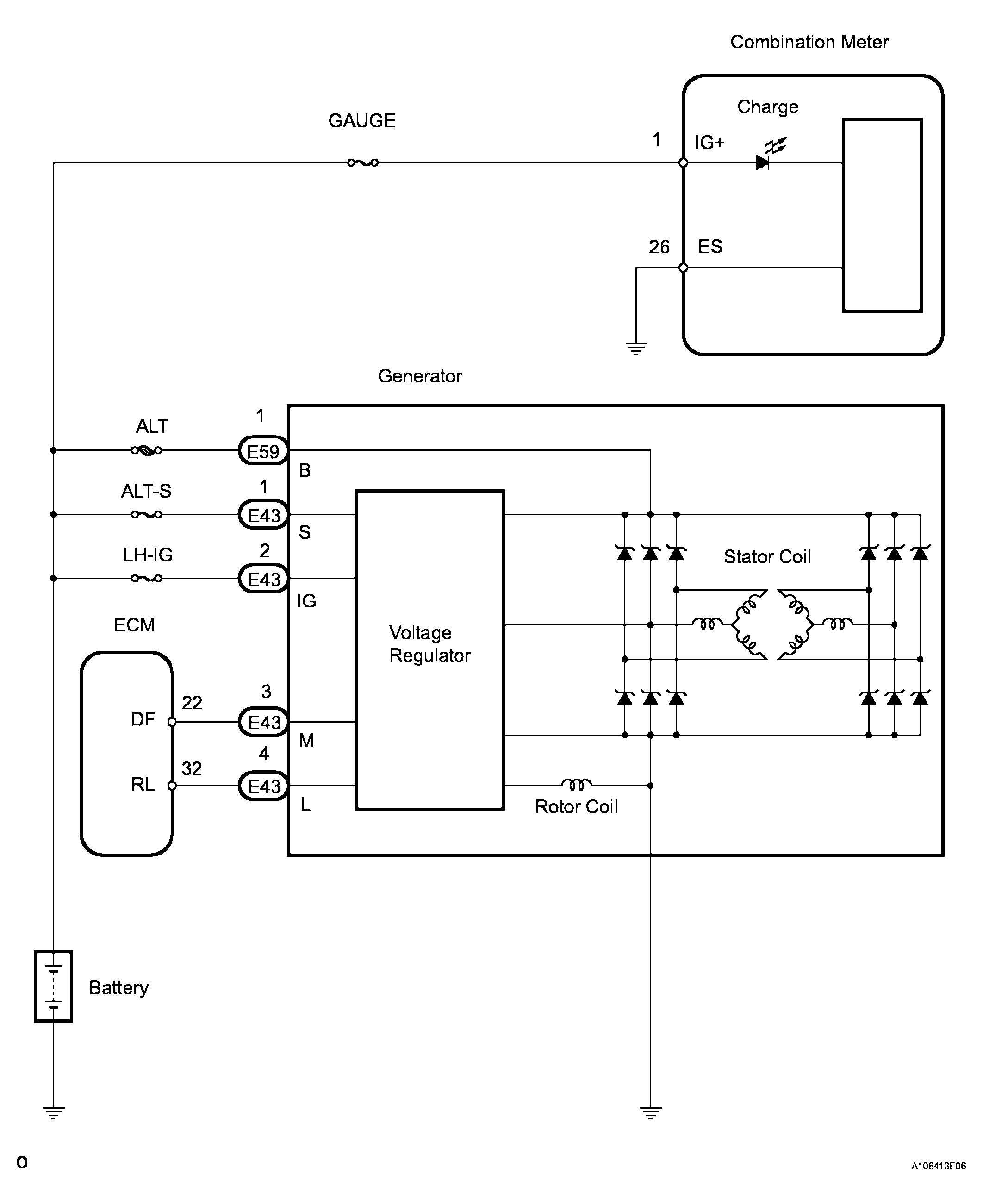

Fig 1: Charging System Diagram
G04019111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
