Parts Location

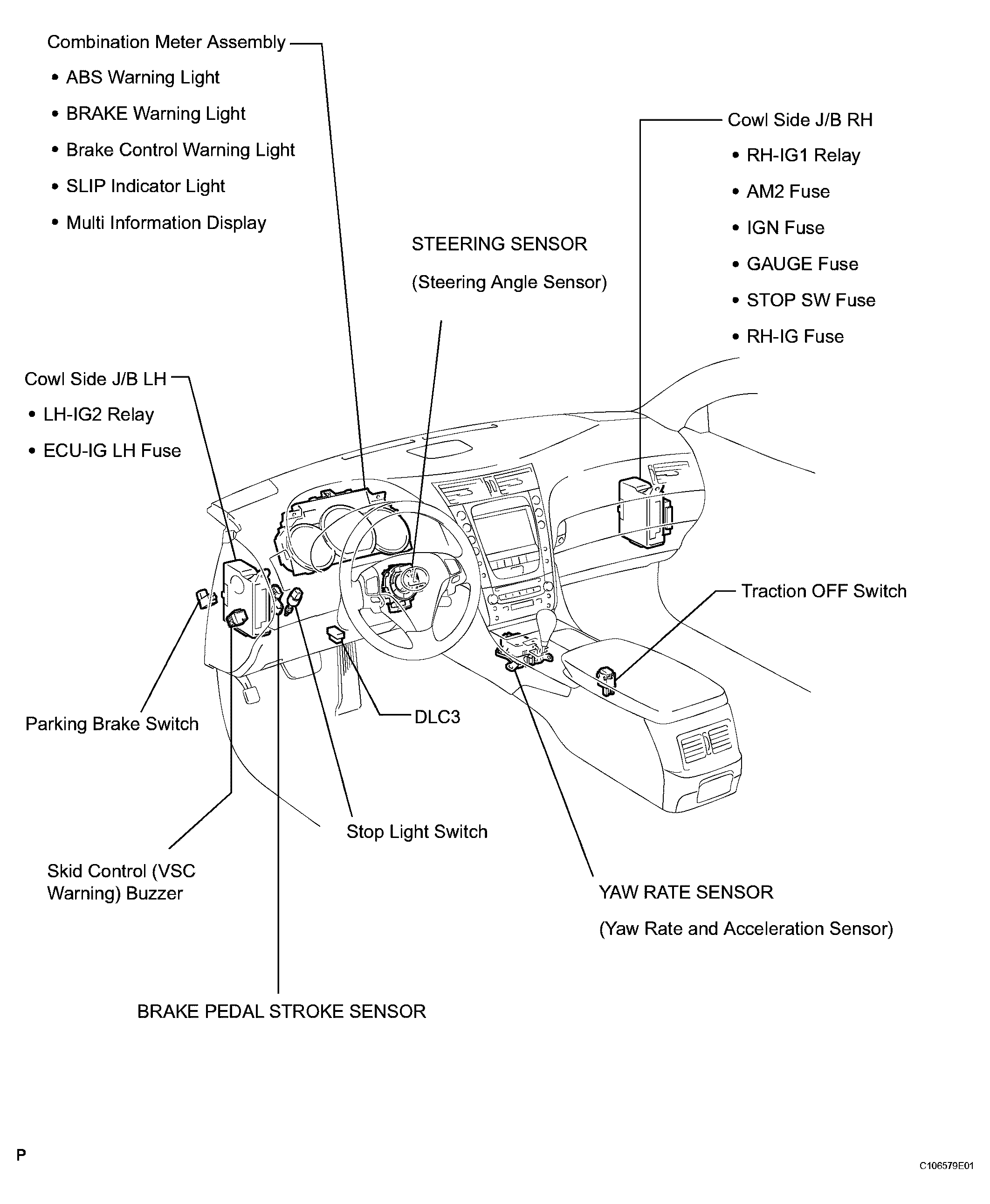

Fig 1: Identifying Electronically Controlled Brake System Parts Location (1 Of 2)
G04025054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

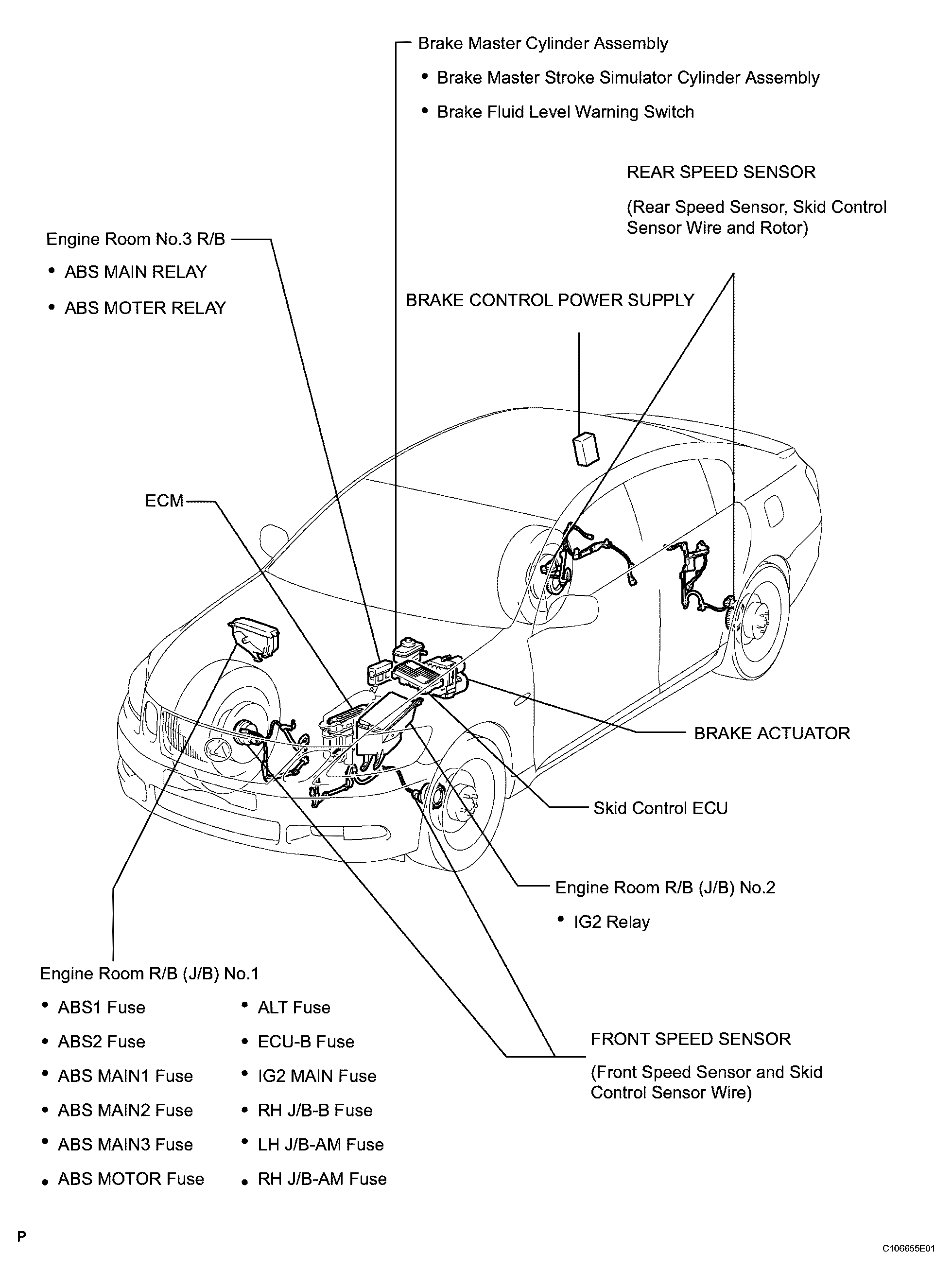

Fig 2: Identifying Electronically Controlled Brake System Parts Location (2 Of 2)
G04025055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
