Floor Shift Parking Lock Cable ASSY: Replacement

  1. REMOVE FRONT DOOR SCUFF PLATE LH (SEE  REPLACEMENT  )
  2. REMOVE FRONT DOOR SCUFF PLATE RH (SEE  REPLACEMENT  )
  3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (SEE  REPLACEMENT  )
  4. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER (SEE  REPLACEMENT  )
  5. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
  6. REMOVE INSTRUMENT PANEL INSERT SUB-ASSY LOWER LH (SEE  REPLACEMENT  )
  7. REMOVE CONSOLE PANEL UPPER REAR (SEE  REPLACEMENT  )
  8. REMOVE CONSOLE BOX CARPET
  9. REMOVE CONSOLE BOX ASSY (SEE  REPLACEMENT  )
  10. REMOVE INSTRUMENT PANEL FINISH PANEL END LH (SEE  REPLACEMENT  )
  11. REMOVE INSTRUMENT PANEL FINISH PANEL END RH (SEE  REPLACEMENT  )
  12. REMOVE AIR DUCT REAR NO.1 (SEE  OVERHAUL  )
  13. REMOVE AIR DUCT REAR NO.2 (SEE  OVERHAUL  )
  14. REMOVE CONSOLE BOX DUCT NO.1 (SEE  OVERHAUL  )
  15. REMOVE FLOOR SHIFT PARKING LOCK CABLE ASSY
    1. Disconnect the parking lock cable end from the lever pin of the floor shift assembly.

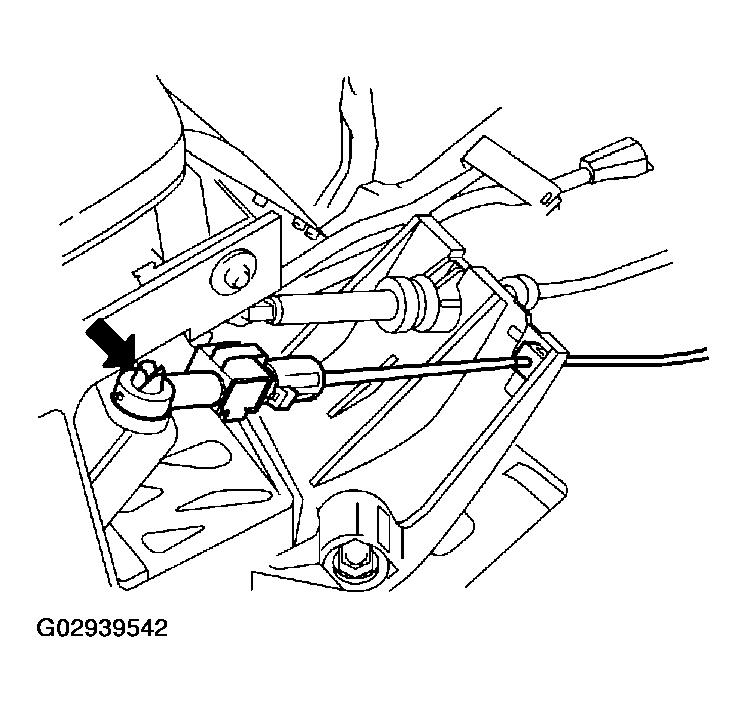

      Fig 1: Disconnecting Parking Lock Cable From Lever Pin
      G02939542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, disconnect the parking lock cable from the floor shift assembly and clamp.
    3. Disconnect the cable clamp.
    4. Turn the ignition switch to ACC or ON.

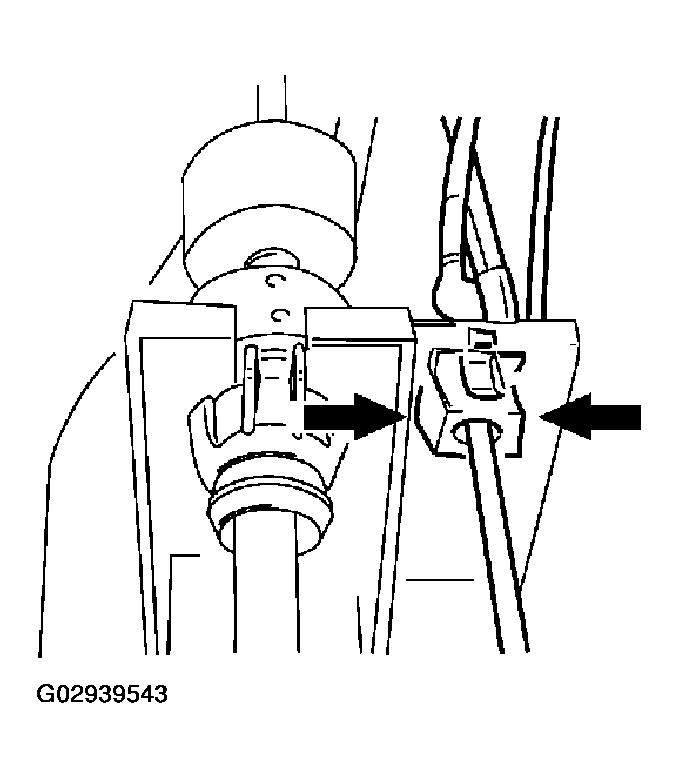

      Fig 2: Disconnecting Parking Lock Cable
      G02939543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a screwdriver, remove the cable from the upper bracket.
      Fig 3: Removing Cable From Upper Bracket
      G02939544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL FLOOR SHIFT PARKING LOCK CABLE ASSY
    1. Turn the ignition switch to ACC or ON.
    2. Connect the cable to the upper bracket.
    3. Connect the cable clamp.
    4. Shift the shift lever to P range and turn the ignition switch to LOCK.
      Fig 4: Connecting Cable To Upper Bracket
      G02939545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a screwdriver, unlock the claw of the lock key of automatic adjustment part.
      Fig 5: Locating Lock Key Of Automatic Adjustment Part
      G02939546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Insert the slide cap into the through hole and install.
      Fig 6: Inserting Slide Cap Into Through Hole
      G02939547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Insert the lever pin into the hole of the parking lock cable.
      Fig 7: Inserting Lever Pin In To Parking Lock Plate Hole
      G02939548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Lock the lock key.
    Fig 8: Locking Lock Key
    G02939549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSPECT CHECK KEY INTERLOCK OPERATION (See  SHIFT LOCK SYSTEM   )
  18. INSTALL CONSOLE BOX DUCT NO.1
  19. INSTALL AIR DUCT REAR NO.2
  20. INSTALL AIR DUCT REAR NO.1
  21. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
  22. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
  23. INSTALL CONSOLE BOX ASSY
  24. INSTALL CONSOLE BOX CARPET
  25. INSTALL CONSOLE PANEL UPPER REAR
  26. INSTALL INSTRUMENT PANEL INSERT SUB-ASSY LOWER LH
  27. INSTALL INSTRUMENT PANEL SUB-ASSY UPPER
  28. INSTALL INSTRUMENT PANEL SUB-ASSY LOWER
  29. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
  30. INSTALL FRONT DOOR SCUFF PLATE RH
  31. INSTALL FRONT DOOR SCUFF PLATE LH
