Front Power Seat Control System: Location

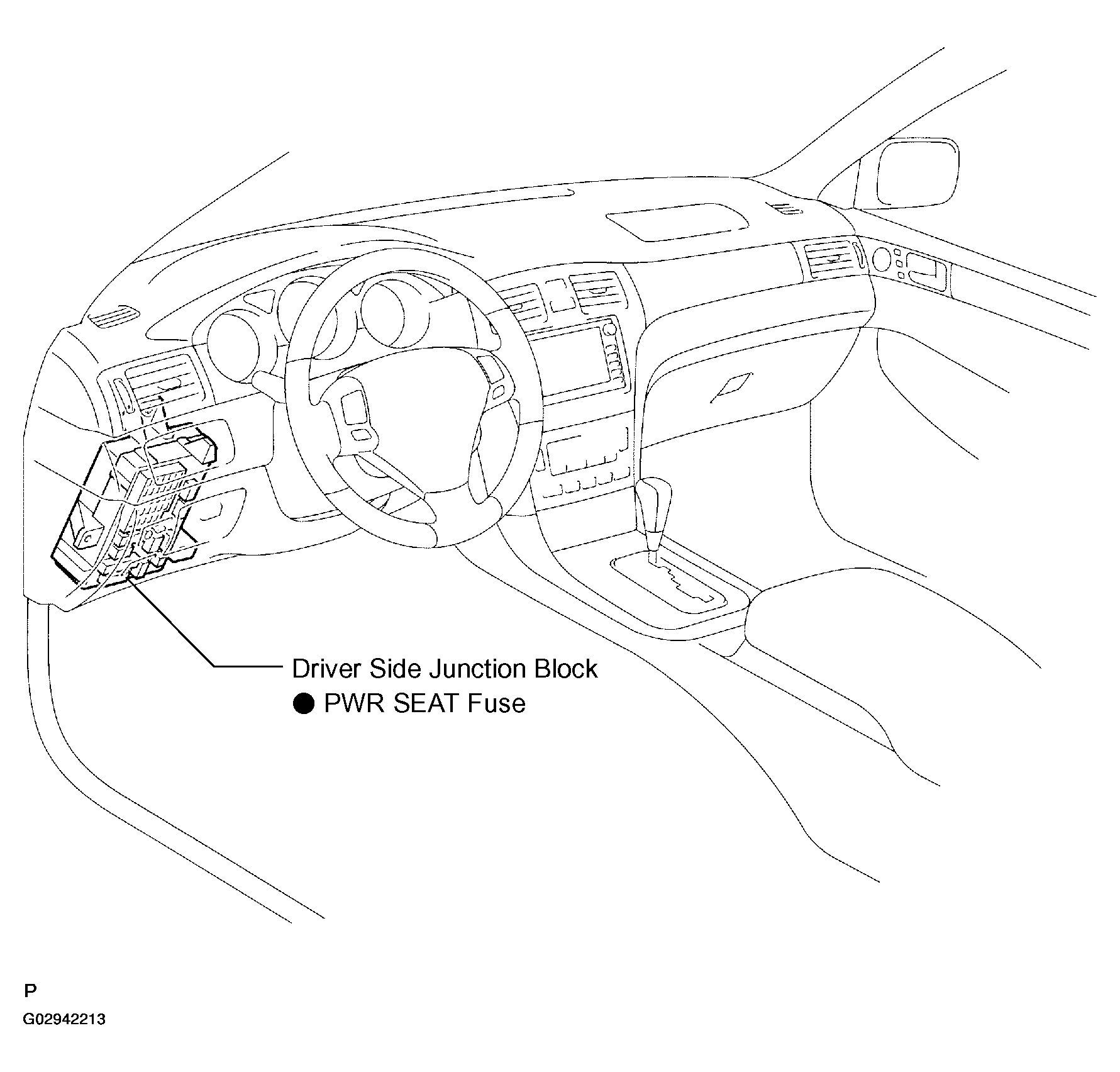

Fig 1: Identifying Front Power Seat Control System (1 Of 2)
G02942213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

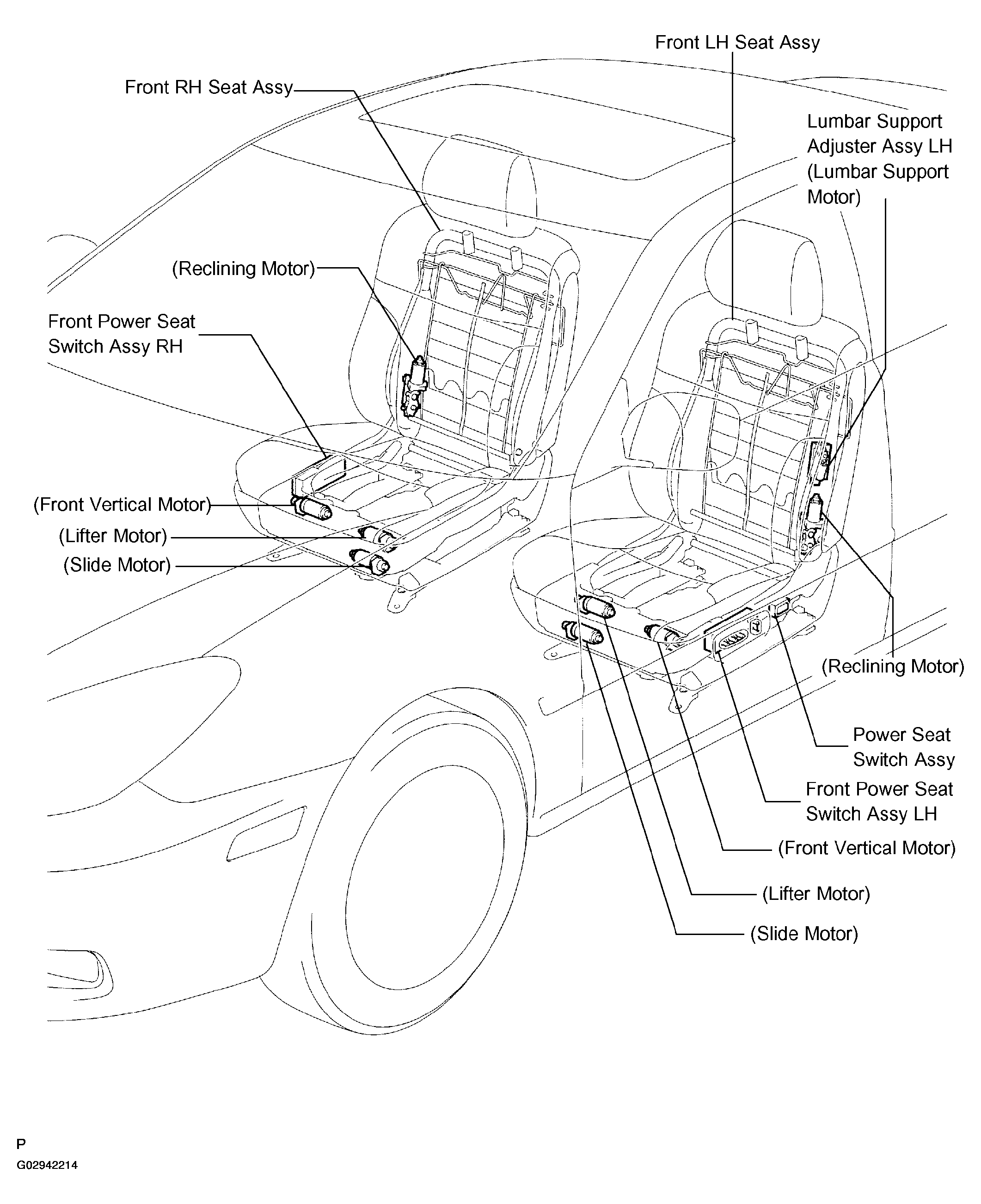

Fig 2: Identifying Front Power Seat Control System (2 Of 2)
G02942214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
