Power Mirror Control System - Diagnostics
>>
Problem Symptoms Table
Problem Symptoms Table

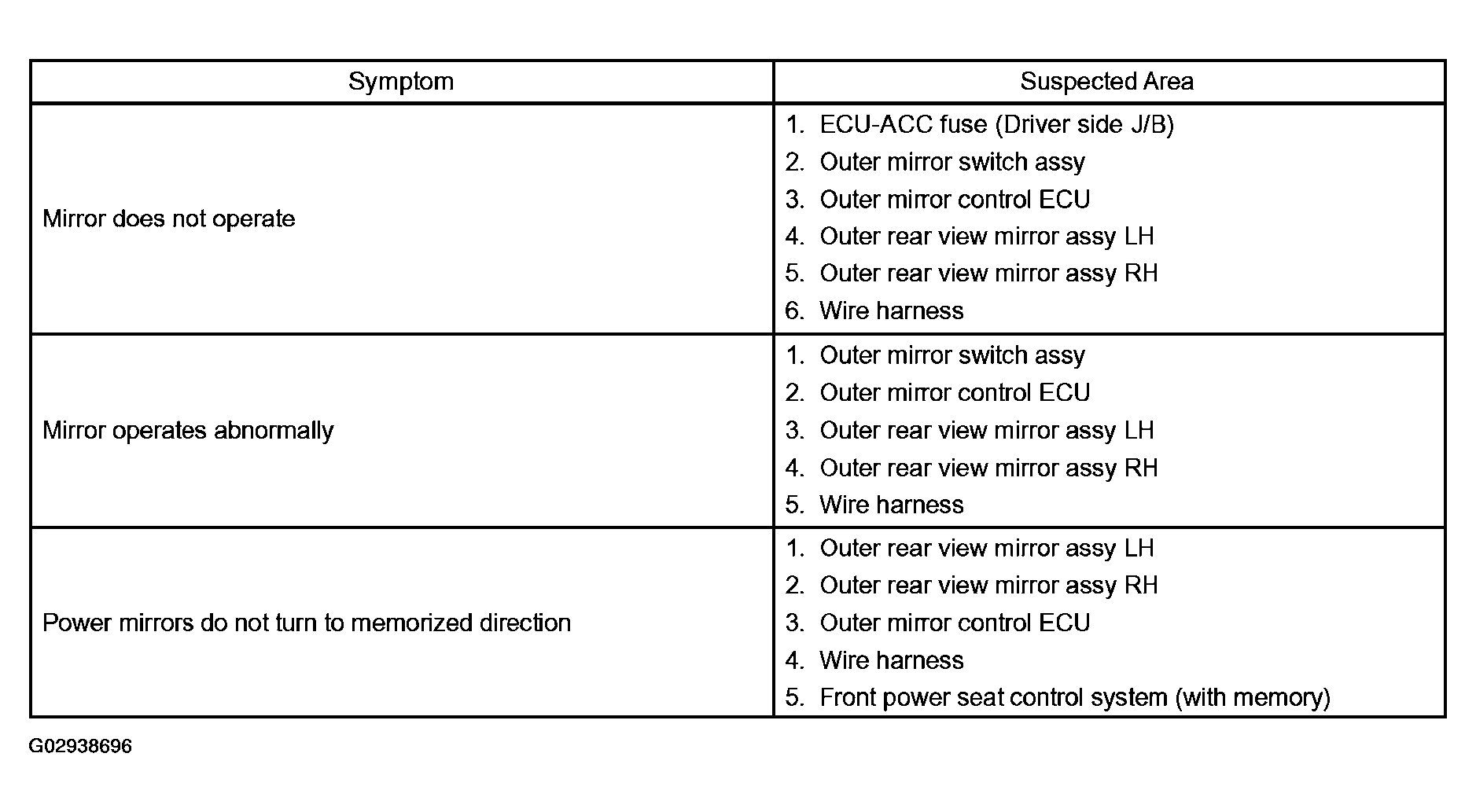

Fig 1: Problem Symptom Table Of Power Mirror Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
