Home >> Lexus >> 2006 >> ES 330 >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Power Mirror Control System - Diagnostics >> Location

Power Mirror Control System - Diagnostics: Location

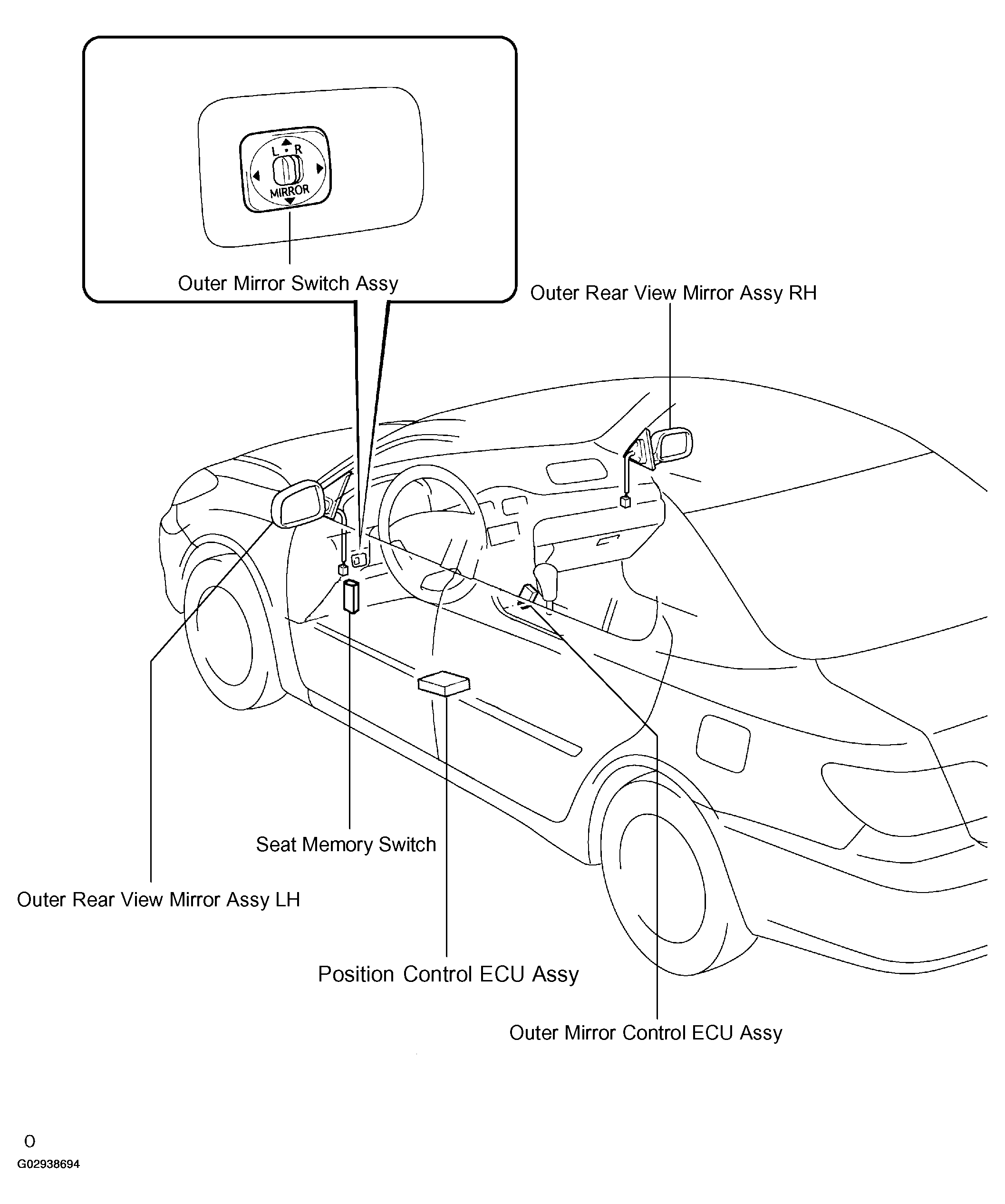

Fig 1: Locating Power Mirror Control System Components

G02938694

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
