Driver Side Junction Block Inner Circuit: Notes

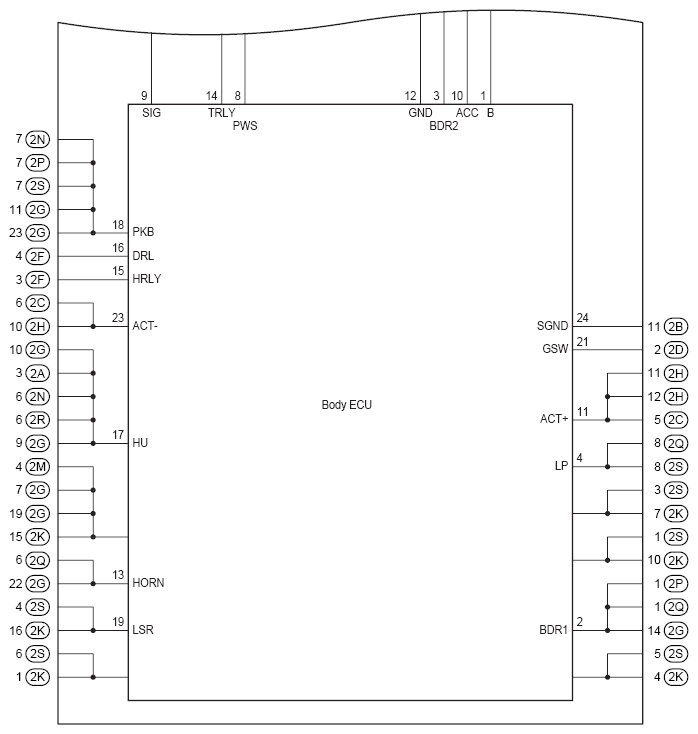

Fig 1: Driver Side J/B Inner Circuit Diagram (3 Of 3)

G08929968

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
