Remote Control Mirror without Driving Position Memory: Notes

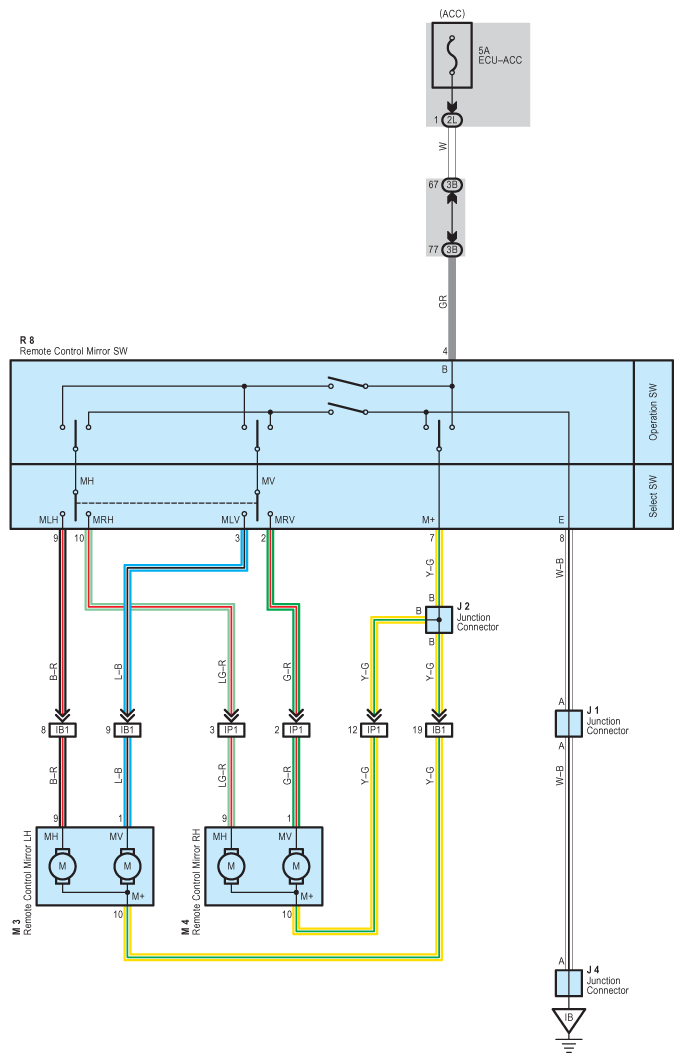

Fig 1: Remote Control Mirror Without Driving Position Memory - Wiring Diagram

G08930087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
