Circuit Description

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay turns on.

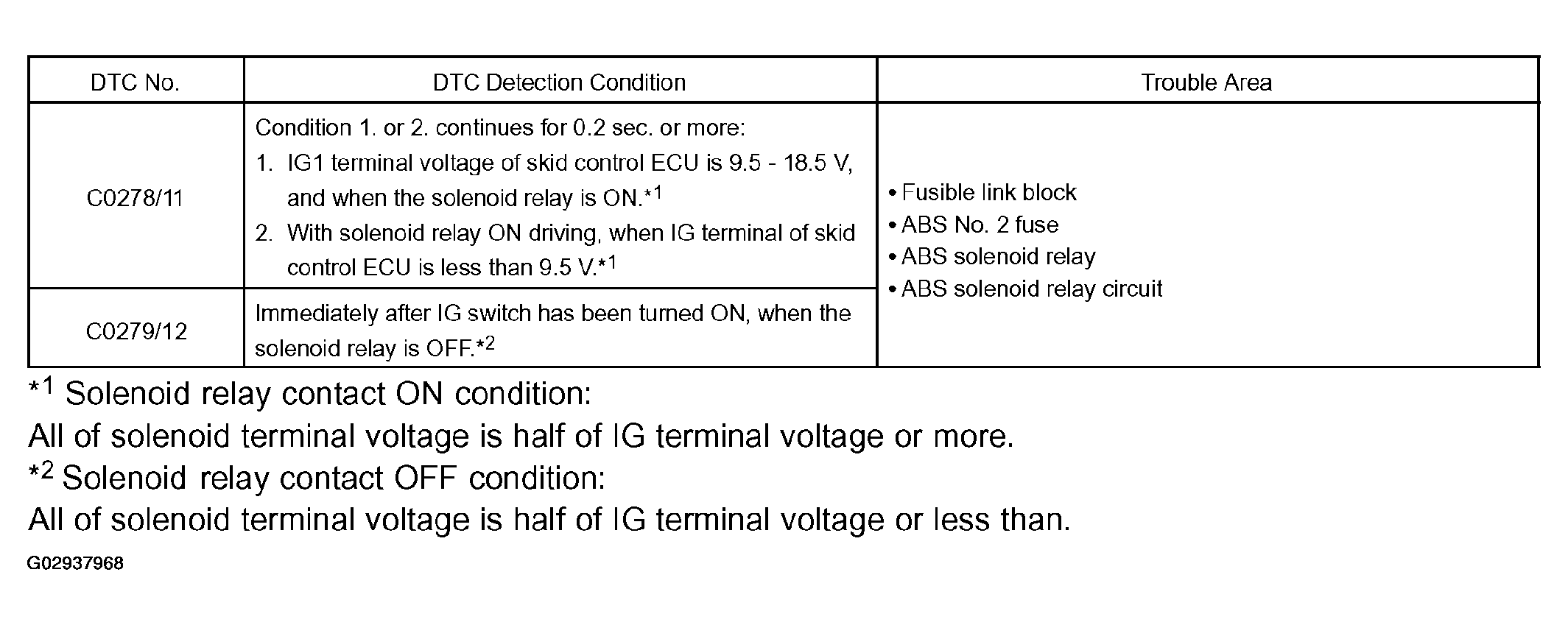

Fig 1: DTC Detection Condition Table (C0278/11, 0279/12)
G02937968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1 Solenoid relay contact ON condition:

All of solenoid terminal voltage is half of IG terminal voltage or more.

*2 Solenoid relay contact OFF condition:

All of solenoid terminal voltage is half of IG terminal voltage or less than.
