Mirror Position Sensor Circuit (W/ Memory): Wiring Diagram

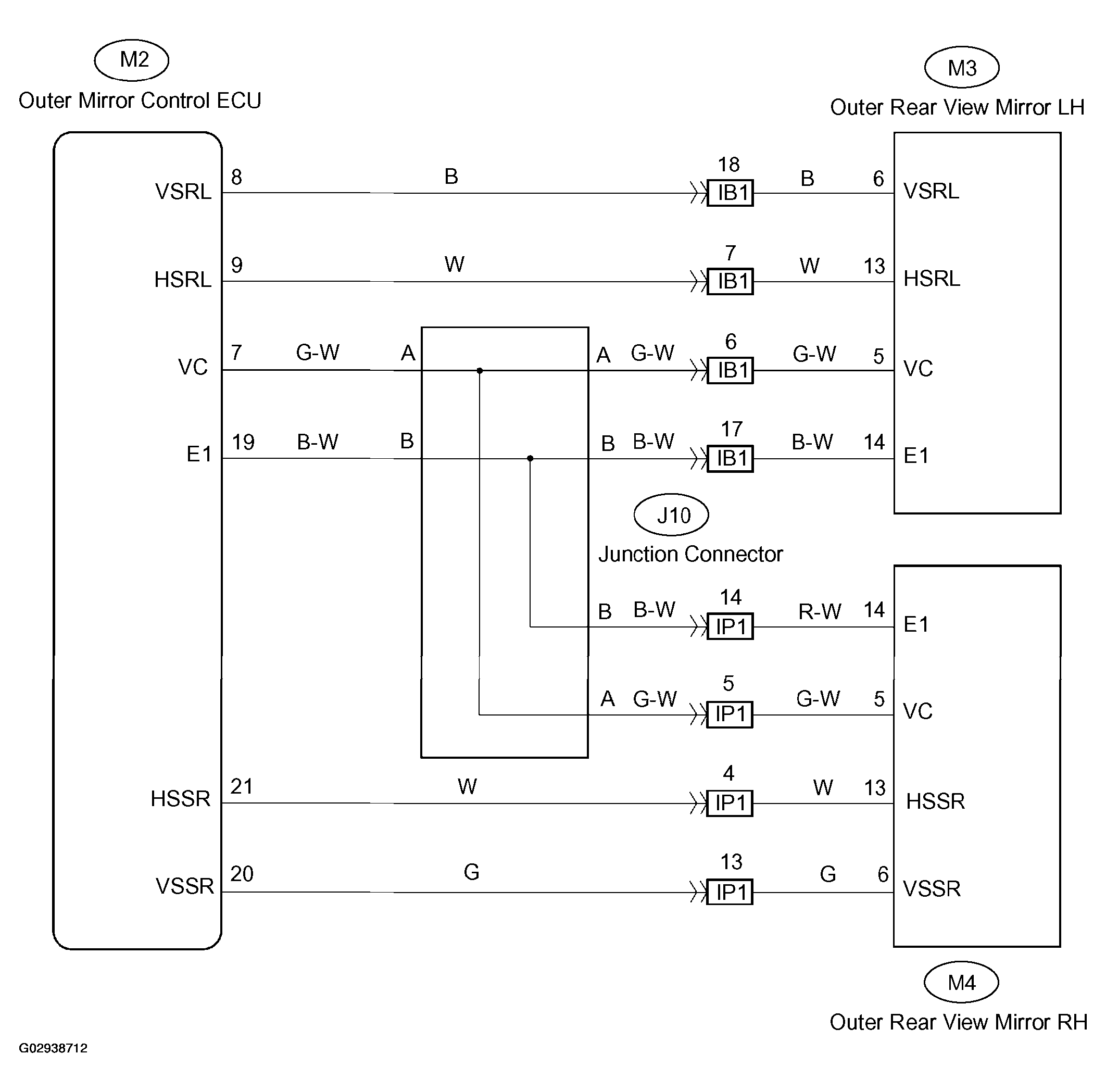

Fig 1: Mirror Position Sensor Circuit Diagram

G02938712

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
