Manual Shifting Test

HINT:

By this test, it can be determined whether the trouble is within the electrical circuit or is a mechanical problem in the transmission.

1. Disconnect the transmission wire connector.

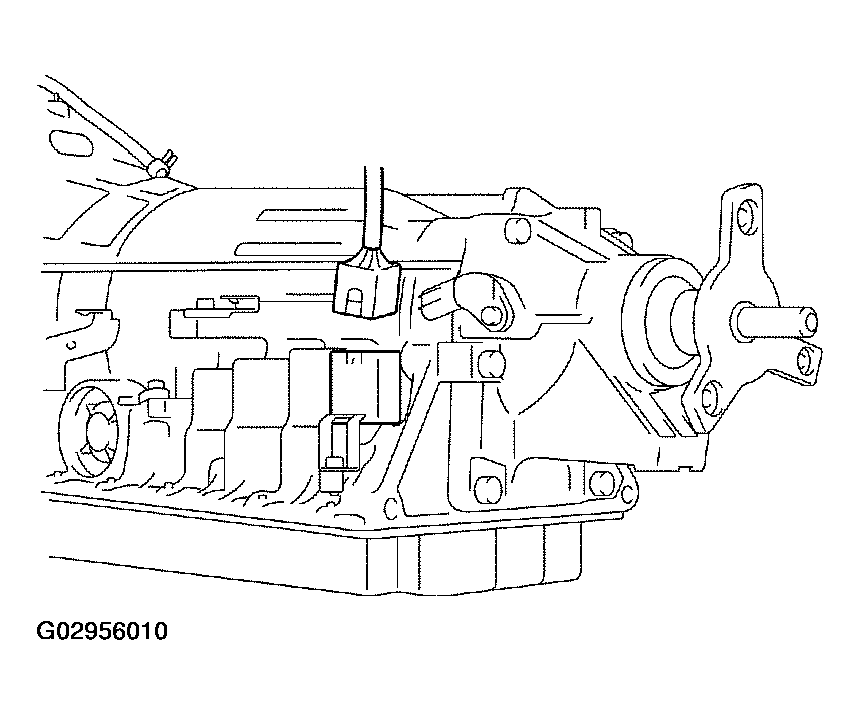

Fig 1: Disconnecting Transmission Wire Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the manual driving operation.
   1. Check that the shift lever and gear positions correspond to SHIFT LEVER POSITION TABLE .
   2. While driving, move the shift lever to L, 2, 3, 4 and D.
   3. Check that the gear change corresponds to the shift lever position.
      SHIFT LEVER POSITION TABLE



      Shift Lever Position	Gear Position
      D	5th
      4	5th
      3	4th
      2	3rd
      L	3rd
      R	Reverse
      P	Pawl Lock

      If the results are not as specified, the transmission may be malfunctioning.

      HINT:

      If the gear positions are hard to distinguish when the shift lever is on L, 2, 3, 4 and D, perform the ROAD TEST  .

3. Connect the transmission wire connector.
4. Clear the DTCs (see DTC CHECK/CLEAR  ).
